Description

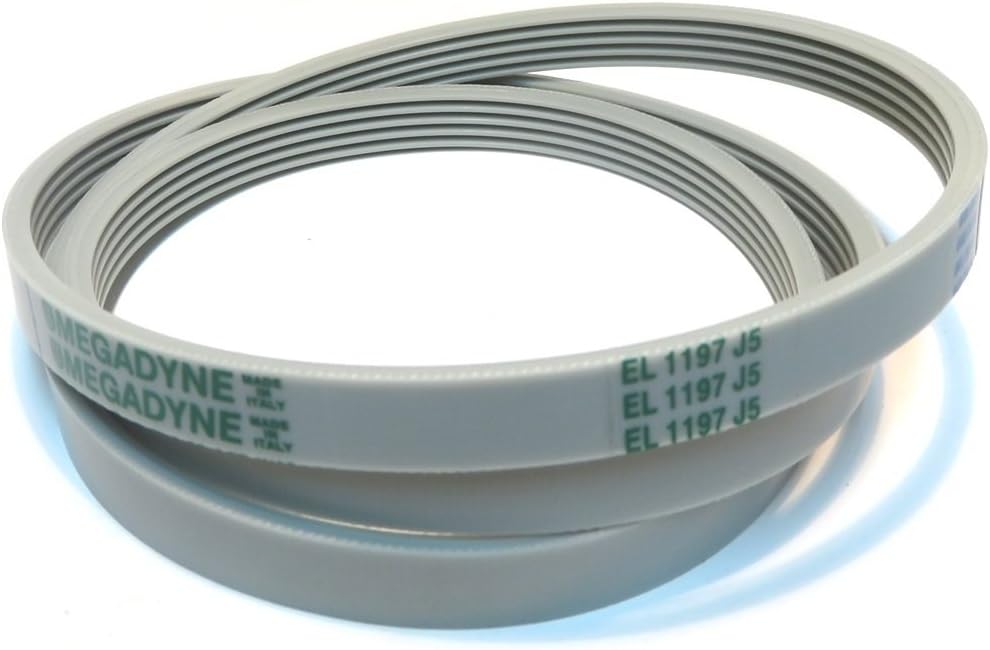

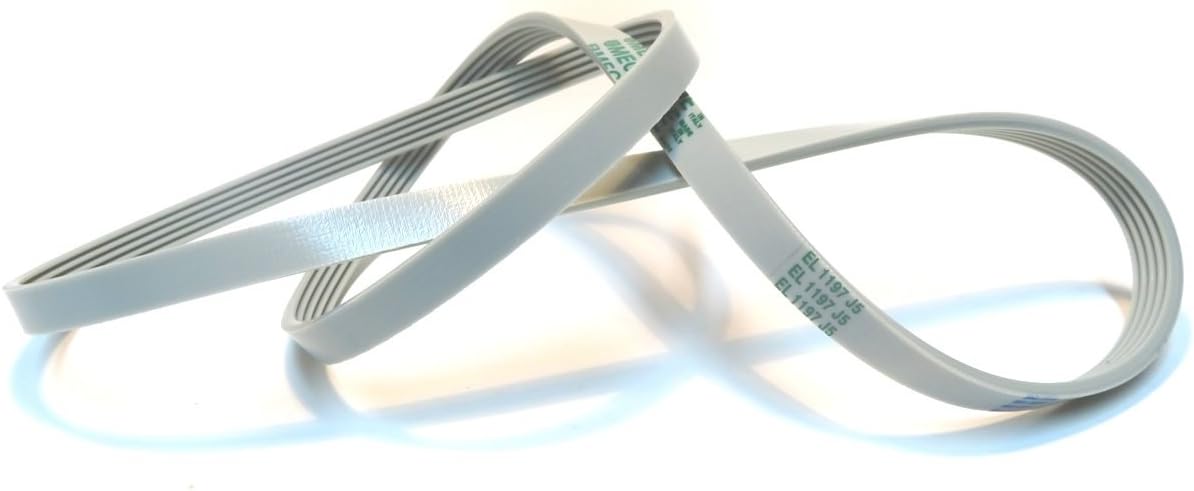

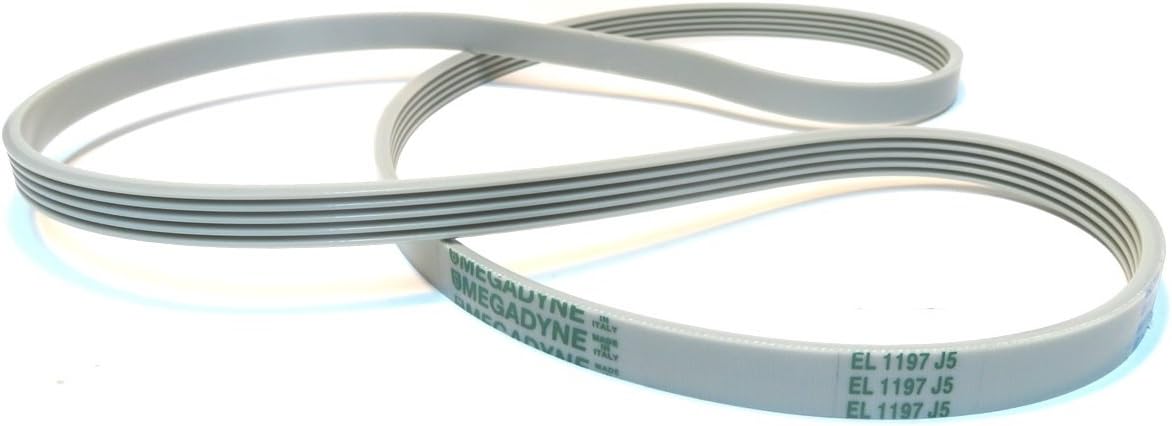

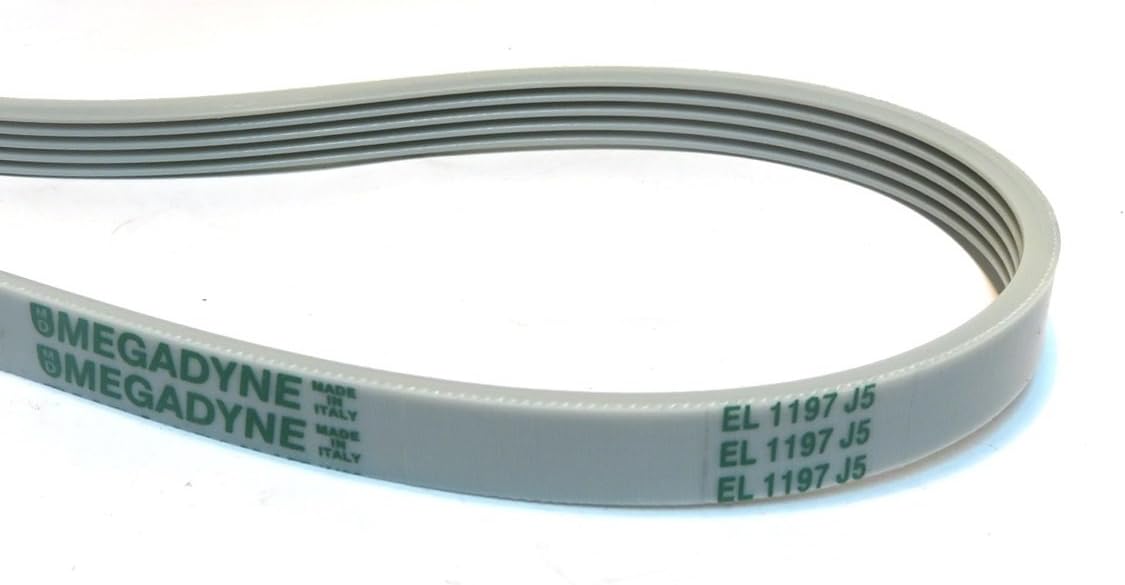

Strap of transmission of 1197 mm of motor development, responsible for transmitting the movement to the drum of the washing machine. is assembled in washing machines of the brands AEG, corberó, Electrolux, Zanussi, Siltal, Teka, Bauknecht, Ignis, Whirlpool, Admiral, Maytag, BAUMATIC, among many other brands. Compatible with the black strap the 1197 J5. Features: Slot: Type J/teeth: 5/channels: 4/elasticity: the/slot: Type J/teeth height: 3.30 mm/Dist. channels: 2.34 mm
Mounting instructions
Once has agreed to the back of the machine:
1. Pass the strap by the motor pulley
2. After leading the strap up to the large pulley (the basket)
3. And start to rotate slowly and with force. The strap will be placing a measure that gives the elasticity. That is to say, Assembled as a bicycle chain
(see photo)
Why are broken straps?
The majority of straps of machine is broken by a same cause: because it is burned. You will know that the strap of your machine has been burned because the ends of the strap have been slightly curved inward and gouging the interior has been reduced. To avoid that the strap is broken by this cause, should not excess charge the machine or wash shoes or sneakers. In this mode means that the bass drum is bloquée while rotating the motor pulley and burn the strap.
