Description
Heavy duty eye bolts can be used in wet or dry environments to complete fixed and suspended projects, such as boats, swings, buildings, courtyards and light industries and so on. They are highly suitable for indoor and outdoor use.
Specification:
Color: Silver
Material: 304 Stainless Steel
Thread Specification: M8
Thread Size: 8 x 60 mm / 0.3 x 2.4 inch (Dia*L)
Opening Width: 11 mm / 0.43 inch
Total Length: 95 mm / 3.7 inch
Washer Size: 15.5 x 8.5 x 1.5 mm / 0.6 x 0.34 x 0.06 inch (OD*ID*T)
Spring Washer Size: 12 x 8.5 x 2 mm / 0.47 x 0.3 x 0.08 inch (OD*ID*T)
Nut Size: 12.8 x 6 x 7 mm / 0.5 x 0.24 x 0.28 inch (W*T*ID)

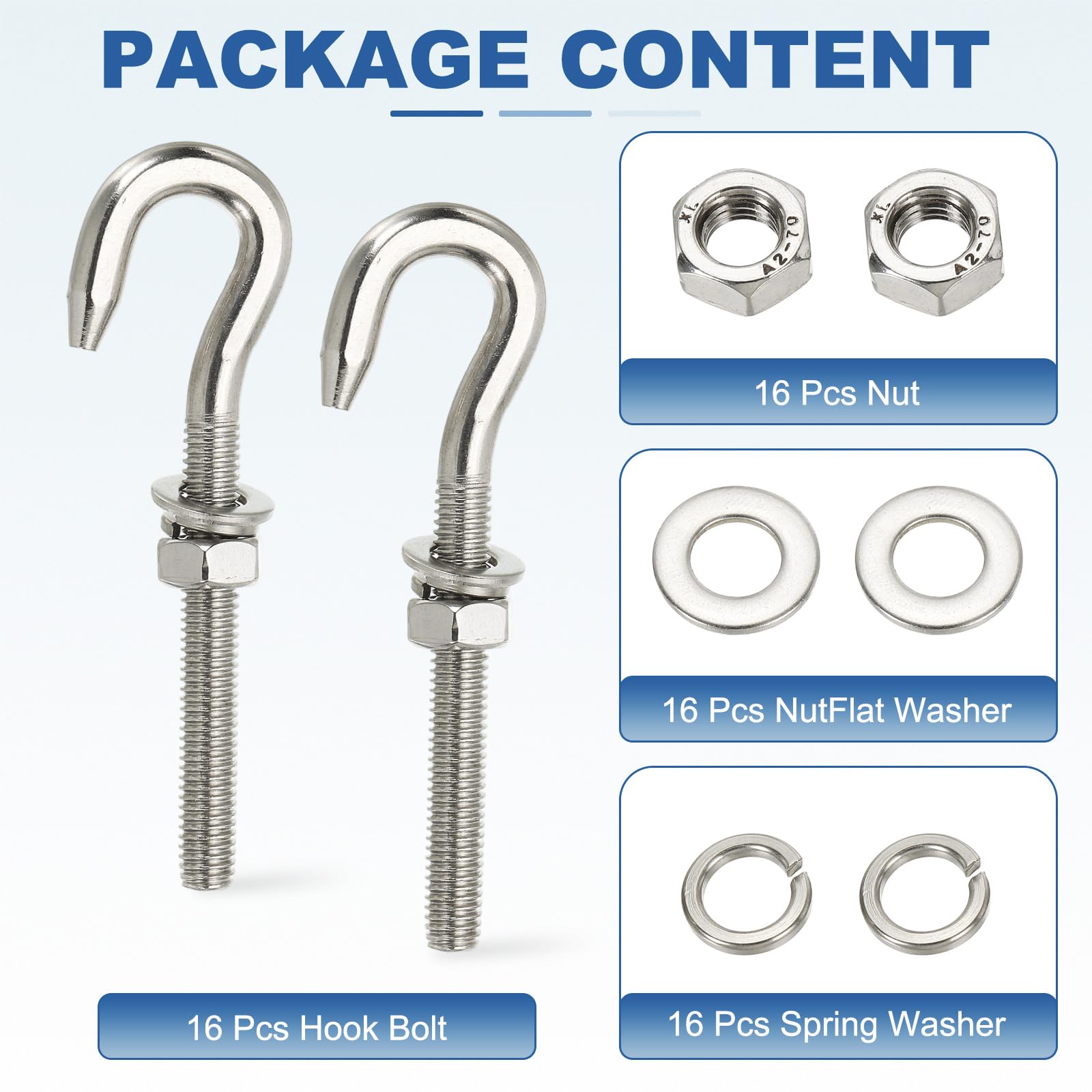

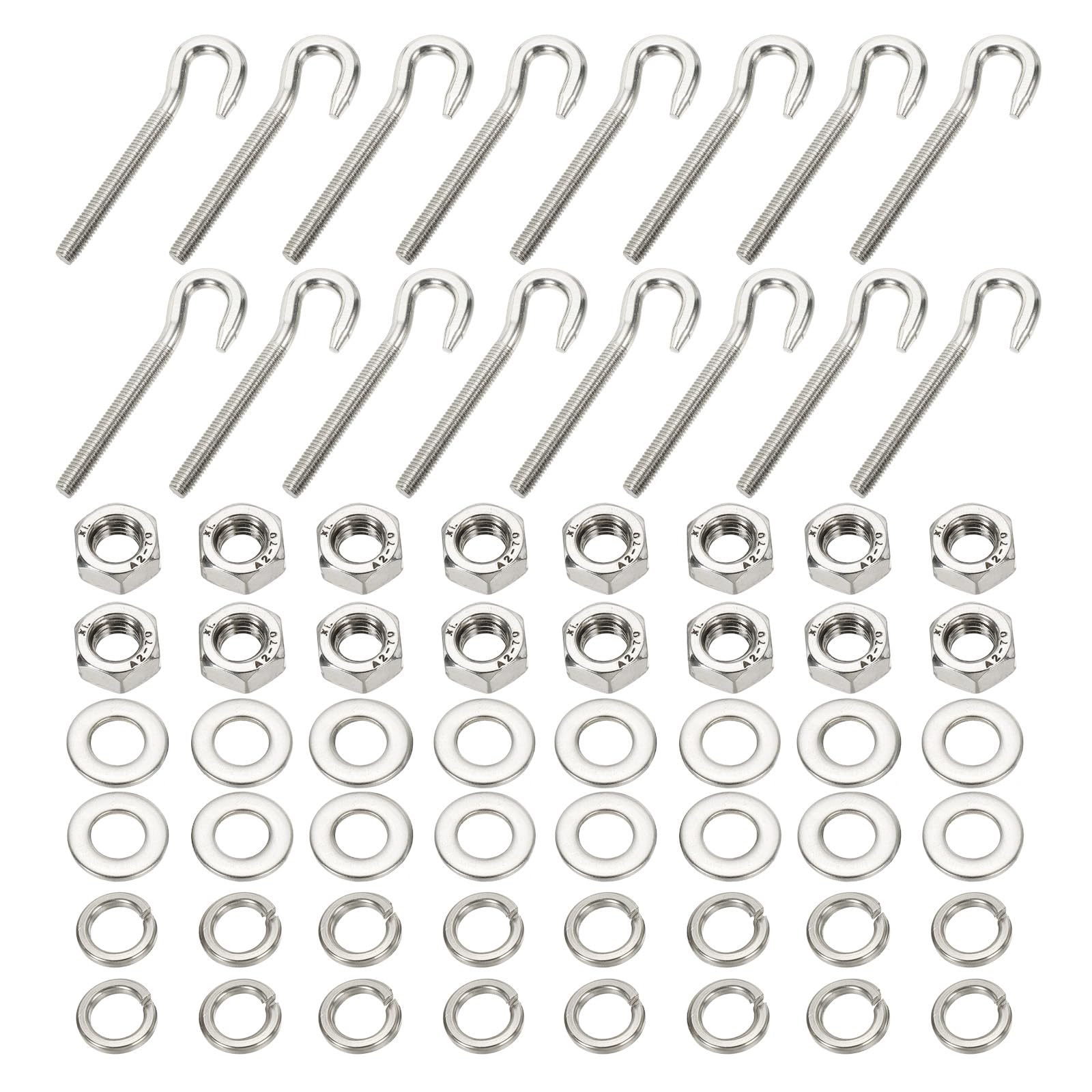

Packing List: 16 Pcs x Stainless Steel Hook Bolt, 16 Pcs x Flat Washer, 16 Pcs x Spring Washer, 16 Pcs x Nut
Advantage:
Hook bolts are made of 304 stainless steel, ensuring durability and wear resistance.
The thread is deep and clear with uniform pitch, so it is tight and not easy to slip when used, and it can remain firm in any environment.
Instruction:
1. Drill a hole where eye bolt is needed.
2. Insert the bolt.
3. Secure it with the included nut and washers.
NOTE: Due to their hook-shaped design, these eye bolts may loosen under heavy vibration or dynamic loads. Please consider your project’s specific requirements before installation.
