Description
Ball locking pins can be widely used in stage audio, aviation manufacturing, gym replacement parts, boat deck hinges, awnings, mechanical engineering, stainless steel pipe clip etc.

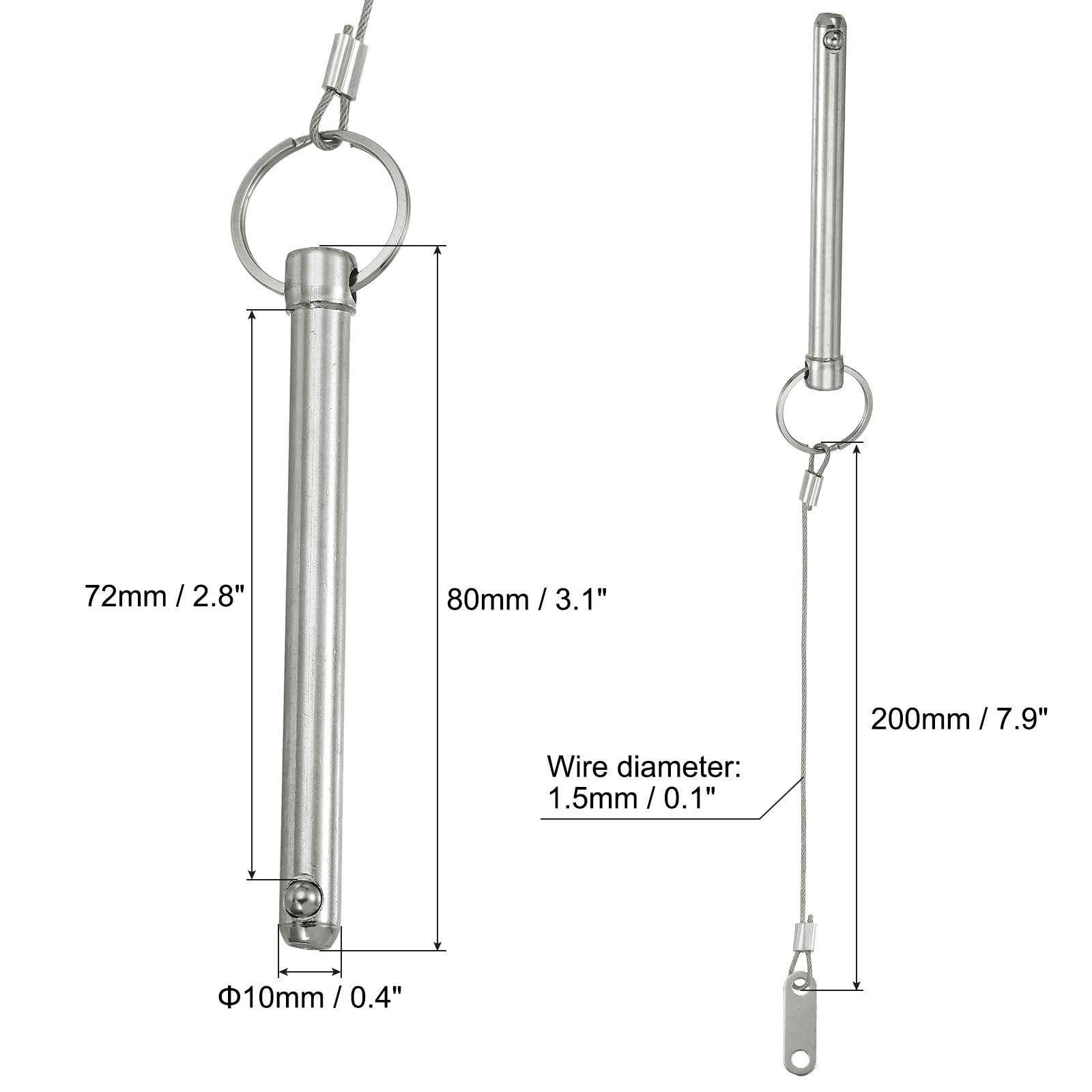

Specification:
Color: Silver
Material: Carbon Steel
Diameter: 10mm / 0.4inch
Total Length: 80mm / 3.1inch
Effective Length : 72mm / 2.8inch
Wire length: 200mm / 7.9inch
Wire diameter: 1.5mm / 0.1inch
Packing List: 2pcs x Quick Release Pin
Advantage:
The quick-release pin is made of carbon steel with high hardness and good wear resistance, and has seawater corrosion resistance and durability. The pull ring can fix the anti-lost rope to prevent loss.
Handle Locking Pin can quickly connect and disassemble two or more parts, effectively fix and release mechanical parts. It is not recommended to use it in sea-water environment or warm and humid environment for a long time.
Instruction:
Quick release pin is easy to use, just pressing the button on the handle can retract the steel ball on the pin head, making it easier to pass the handle locking pin through the workpiece hole. When the button is released, the steel ball pops out and the quick release pin cannot be pulled out from the air, thus achieving quick locking.
Note:
Please confirm the correct size before purchasing.
