Additional information
| Weight | 1.79 kg |
|---|---|
| Brand | RTM |
RATTMMOTOR 400 W brushless spindle motor kit, air cooled ER8 12000 rpm, 48 V + 600 W, brushless motor driver, LCD panel without hall + 55 mm mount bracket with screws for CNC engraving
$0.00

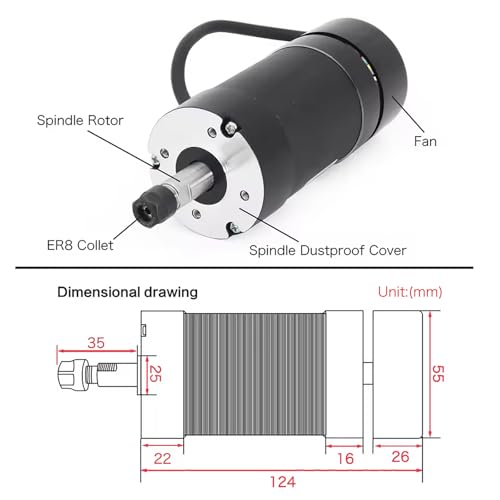

- Brushless Spindle MotorPower: 400W; Input Voltage: 48V; Rotation Speed: 12000RPM; Torque: 0.45Nm; Collet: ER8; Insulation Resistance: >2Ohm; Voltage Strength: 400V, Note: Please note that this spindle motor output shaft is equipped with an ER8 collet and the output shaft. a complete wave, which cannot be exchanged with ER11, ER16 or any other type of feed shaft
- Air CoolingThe main shaft is equipped with forced air cooling, which has excellent cooling performance, which ensures a long service life of the engine and extends the service life.

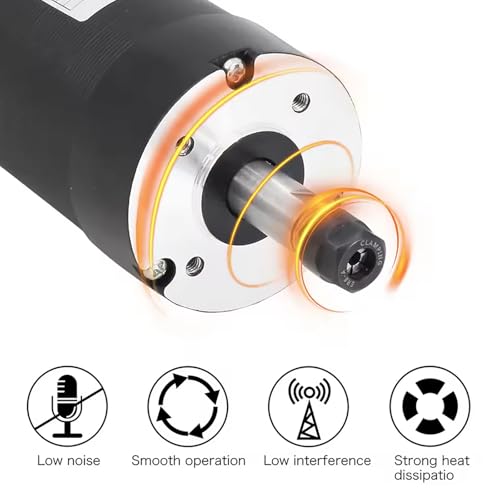

- Brushless DC MotorThe brushless motor has low interference compared to brushless motors. When the motor is running, no spark is generated, significantly reducing the interference of the electric spark on remote radios. Low-noise, smooth, brushless motor has less friction during operation, which is a great advantage for the stability of device operation, the brushless motor with long service life

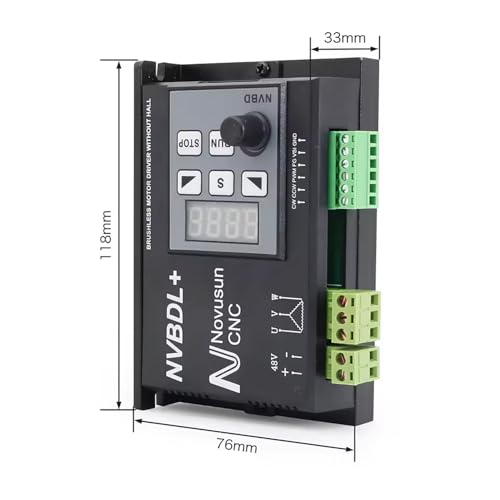

- Brushless Spindle Motor DriverMaximum driver power: 600W; Voltage range: 24VDC-60VDC; Maximum driving speed of the driver’s motor: 12000R/min, users can remove the panel from the main driver and install it on the controller cabinet. The panel allows you to set the parameters, control the engine speed and start/stop, very practical.
- Wide applicationsThis CNC spindle motor can be used for CNC DIY carving of PCB, acrylic, drill hole, thread cutting and other places that are widely used in many places.
Out of stock
