Schellenberg 11117 Bevel Gear for Shutters up to max. 27kg Gear Ratio 3.6:1 Silver


  • Easy movement of roller shutters thanks to optimal transmission ratio
  • Steel double brake spring – holds any roller shutter position
  • No overturning of the shutter thanks to the lower limit
  • Matches the Schellenberg crank accessories (Germany)
  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

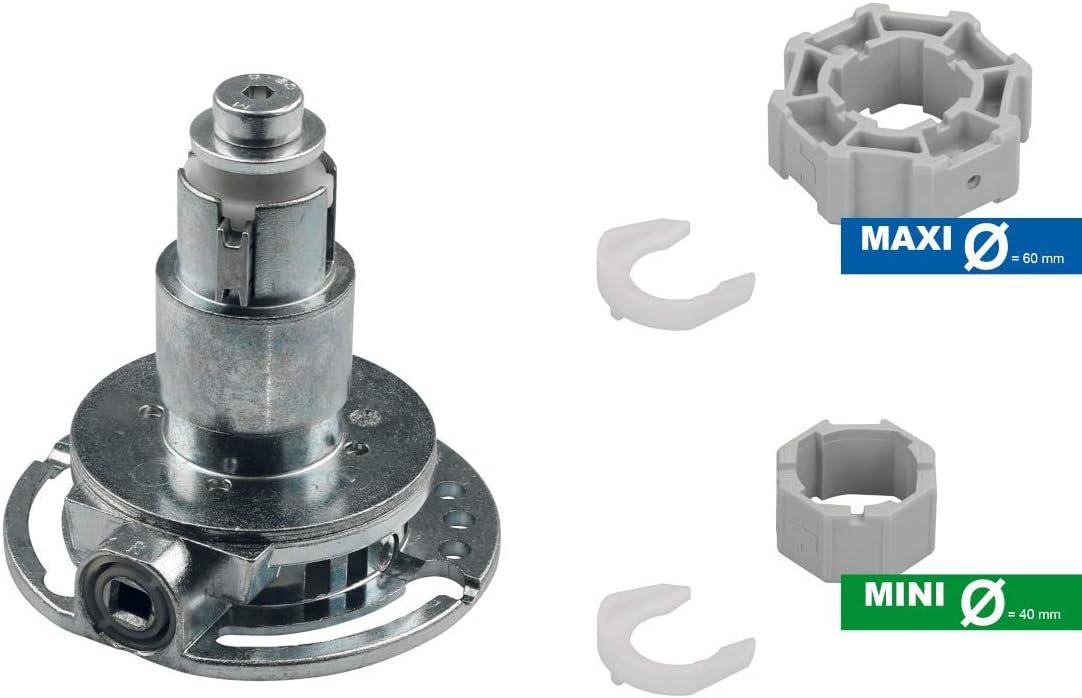

The Schellenberg bevel wheel transmission makes it easier to crank even heavy crank operated shutters. The ideal transmission ratio of 3, 6: 1 allows for less effort. The bevel gear is universally applicable and is suitable for both left and right mounting. The maximum weight of the shutter tank should not exceed 27 kg. The corresponding carrier can be placed in two directions on the gearbox. The direction of rotation of the crank remains the same, regardless of the installation or operating side. The integrated double brake spring made of steel provides increased safety when cranking the shutter. It holds the roller shutter in any position without accidentally falling off. If you have reached the final limit when cranking your shutters, there is a risk of overturning the shutter in many tapered gears. This can then not be turned up or down. On the other hand, the Schellenberg bevel gear switches to the freewheel when the end points are reached and prevents the roller shutter from blocking. The bevel gear is suitable for the Schellenberg carriers: – Art. No. : 11113 – Carriers Cone Gear for SW 40 mm – Art. No. : 11115 – Carriers Cone Gear for SW 60 mm

Additional information

Weight 0.58 kg



‎9.4 x 9.4 x 9.3 cm; 580 Grams
