SMA Coaxial Cable Crimper set – SMA crimping plier and 10set SMA male and female connectors for RG174 RG316 wifi antenna extension cable

$83.99

  • Make sure this fits by entering your model number.

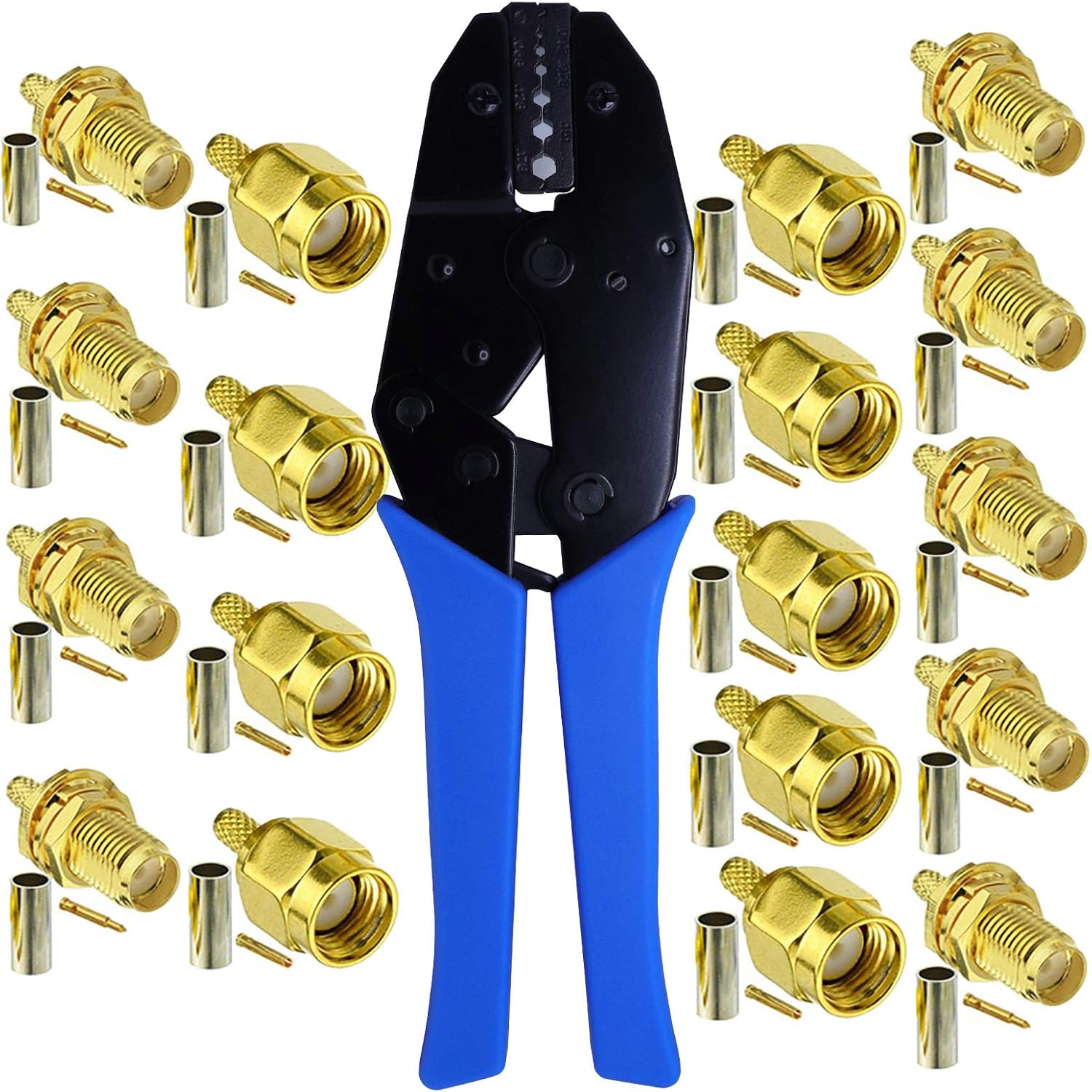

  • 1. SMA crimping tool kit included 9set SMA male and female plug connectors and 1pcs coaxial crimping plier for you to creat SMA extension cable.

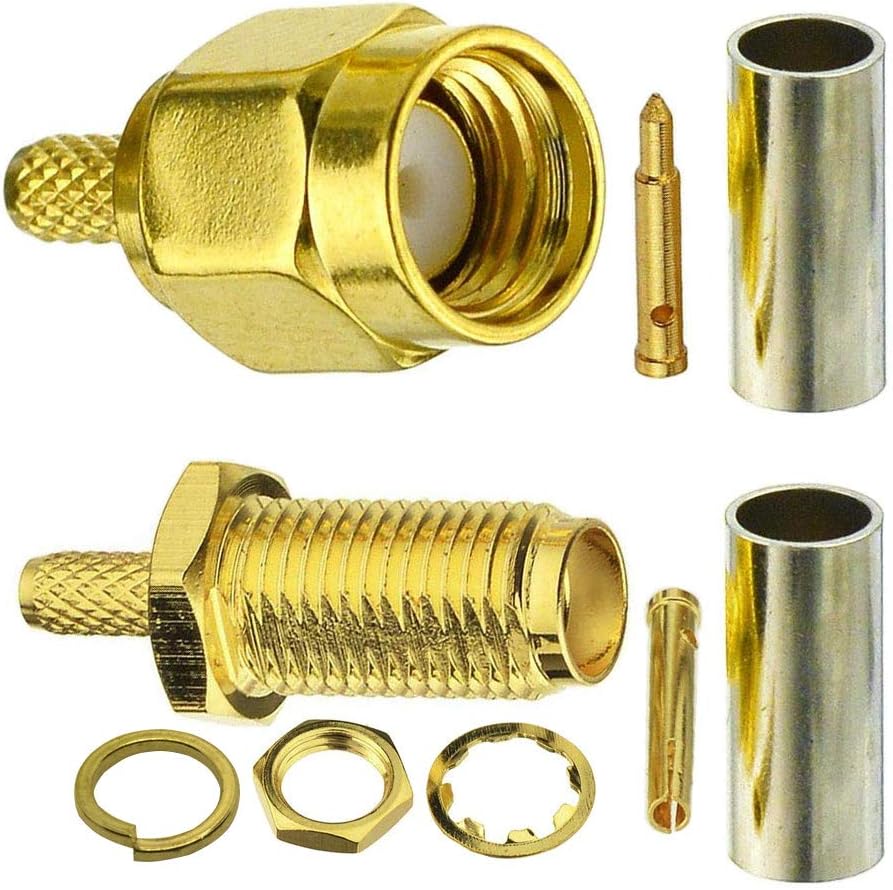

  • 2. Pack of 9 SMA male and female crimp on straight connectors，impedance:50 ohm,body material: gold plated brass. compatible with RG174 RG316 RG188 cable.

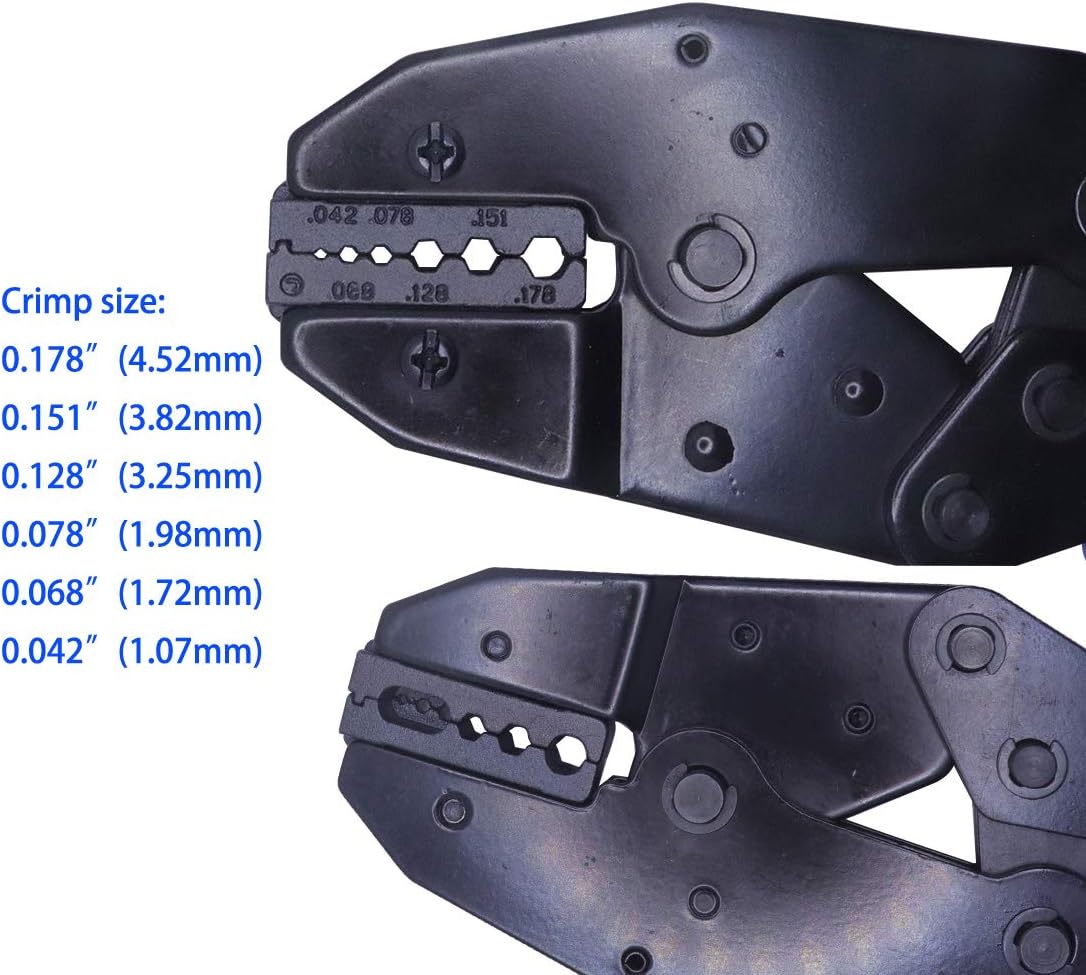

  • 3. RG174 coaxial cable crimping tool,hex dia sizes 0.178″(4.52mm),0.151″(3.82mm),0.128″(3.25mm,compatible with RG174 cable),0.078″(1.98mm),0.068″(1.72mm),0.042″(1.07mm)p plier made of tempered and hardened carbon steel,sturdy and heavy duty.

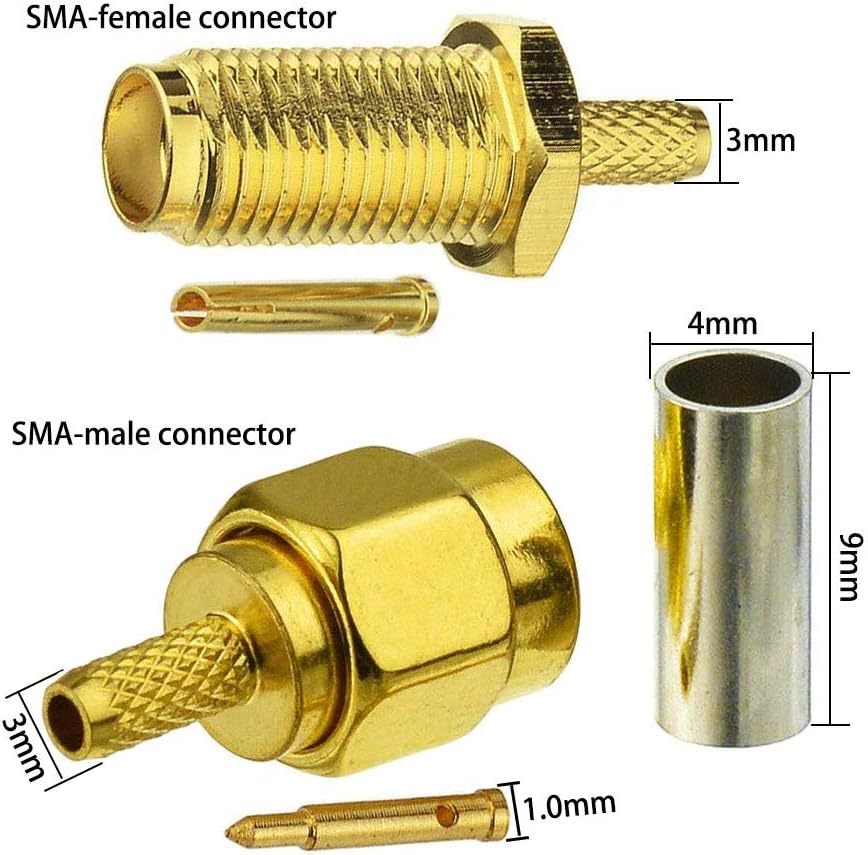

  • 4. The diameter of the central pin is 1mm,the pin has a hole has to be assemblied with the central conductor by soldering
  • 5. SMA crimping tool let you make your expect SMA antenna extension cable to compatible with 2G/3G/4G LTE SMA WiFi Antenna Wireless Router WLAN Power Cord Camera System

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Discription: SMA Male+female Connector Impedance:50 ohm Connector body style: straight Shell material: brass Inner conductor material: brass Shell plating: gold Inner conductor plating: gold-plated Cable Type: Available for .085″ and .141″ diameter semi-rigid cables and all the standard flexible cables including RG174 RG316SMA crimping tool: 1r: blue 2ht: 520g 3th: 215CM 4icable cable: RG174 RG180 RG188 RG316…… 5ping specifications: 0.178″(4.52mm) 0.151″(3.82mm) 0.128″(3.25mm) 0.078″(1.98mm) 0.068″(1.72mm) 0.042″(1.07mm)Package: 9 x SMA Male Connectors 9 x SMA Female Connectors 1 x SMA crimping tool

Additional information

Weight 0.586 kg
brand

Kagni
dimensions

‏
:
‎

29 x 16 x 5 cm; 586 Grams
