Description

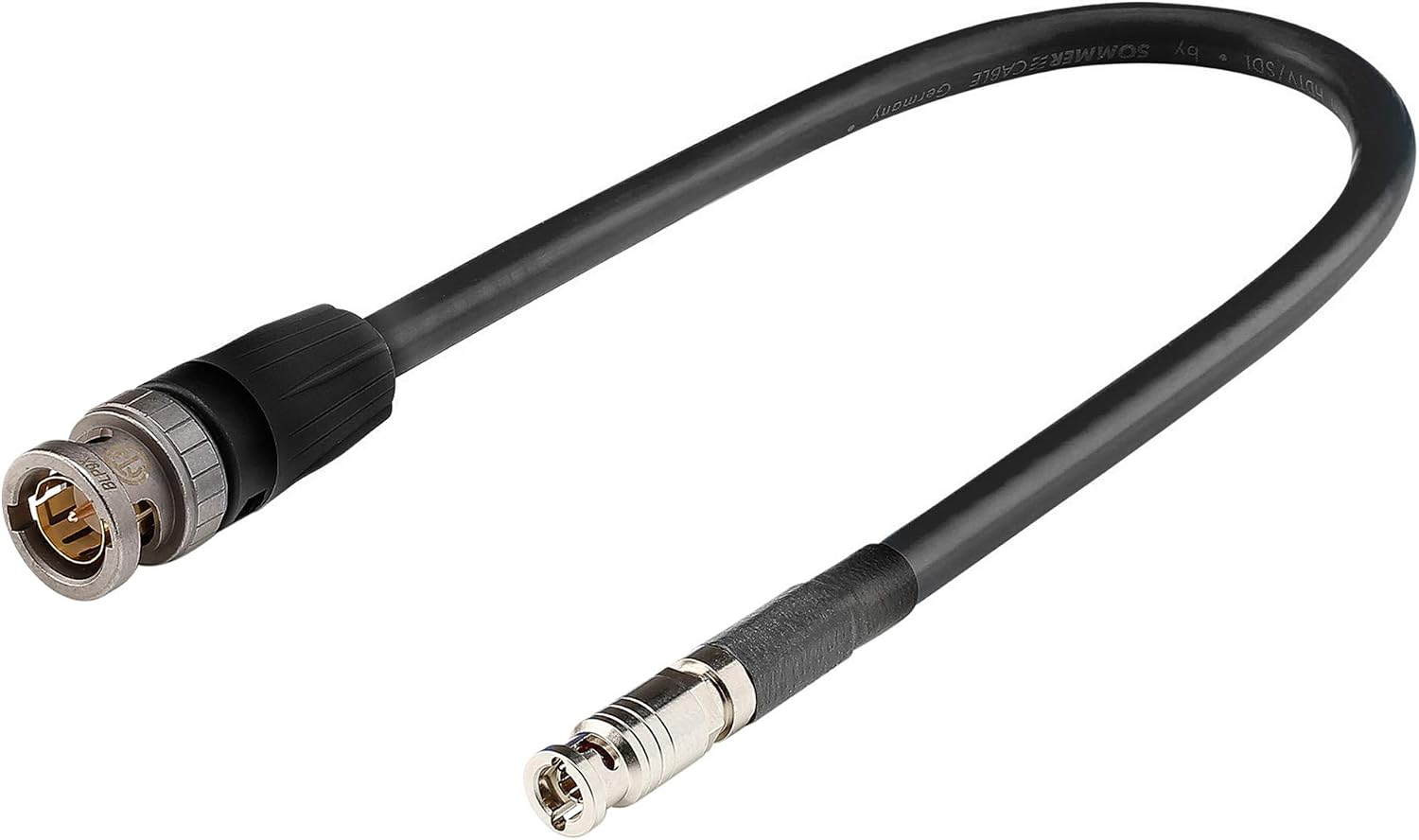

The following adaptor patch cable is the ideal high-quality combination to their video component for live to post production area. They are compatible with cameras, monitors, video I/O PCIe cards. As Swift as an arrow the data transmission of the sc vector breaker (RCB) with its 1.5 GB/s rate which also guarantees a low return loss. Of course, the SC vector (RCB) can also serve as a high quality G SDI video line for studio or ob Van applications. With its dual shielding and outstanding damping values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 video cable it allows up to 30% longer transmission distancestruction: 02YS (St) ch0,8/3.7 HD-SDICasing: PVC, diameter: 1 x Coaxial: 6 mmr conductor: Copper solid wire diameter 0.8 mm (AWG20)Conductor insulation: Gas injected PE 3.7 mmShielding: AL/PT foil + copper mesh tin-plated 85%Cover Opt.: 100%Max. Übertragungslänge: SDI: 220 m3G-SDI: HD 1080 p 60: 160 m, high-capacity 6G SDI: Ultra HD 2160p, 30: 70 mWeight at 1 m: PVC 1 X Coaxial: 40 gCharacteristic impedance (at 200 MHz): 75 ‰Capacity Core/umbrella from 1 m: 52.9 PFConductor resistance based on a 1 km: Shielding parameter: > 95 dBParasol resistance at 1 km: 20 ‰Max delay time difference (skew): 4 ns @ 100MHzReady-made factor: 0.82Attenuation at 100 m (20 °C/68 °F): 200 MHz: 11.2 dB/470 MHz: 17 dB 862 MHz: 24 dB/1000 MHz: 8 dB /1750 MHz: 35,9 dB/3000 MHz: 46.4 dB
