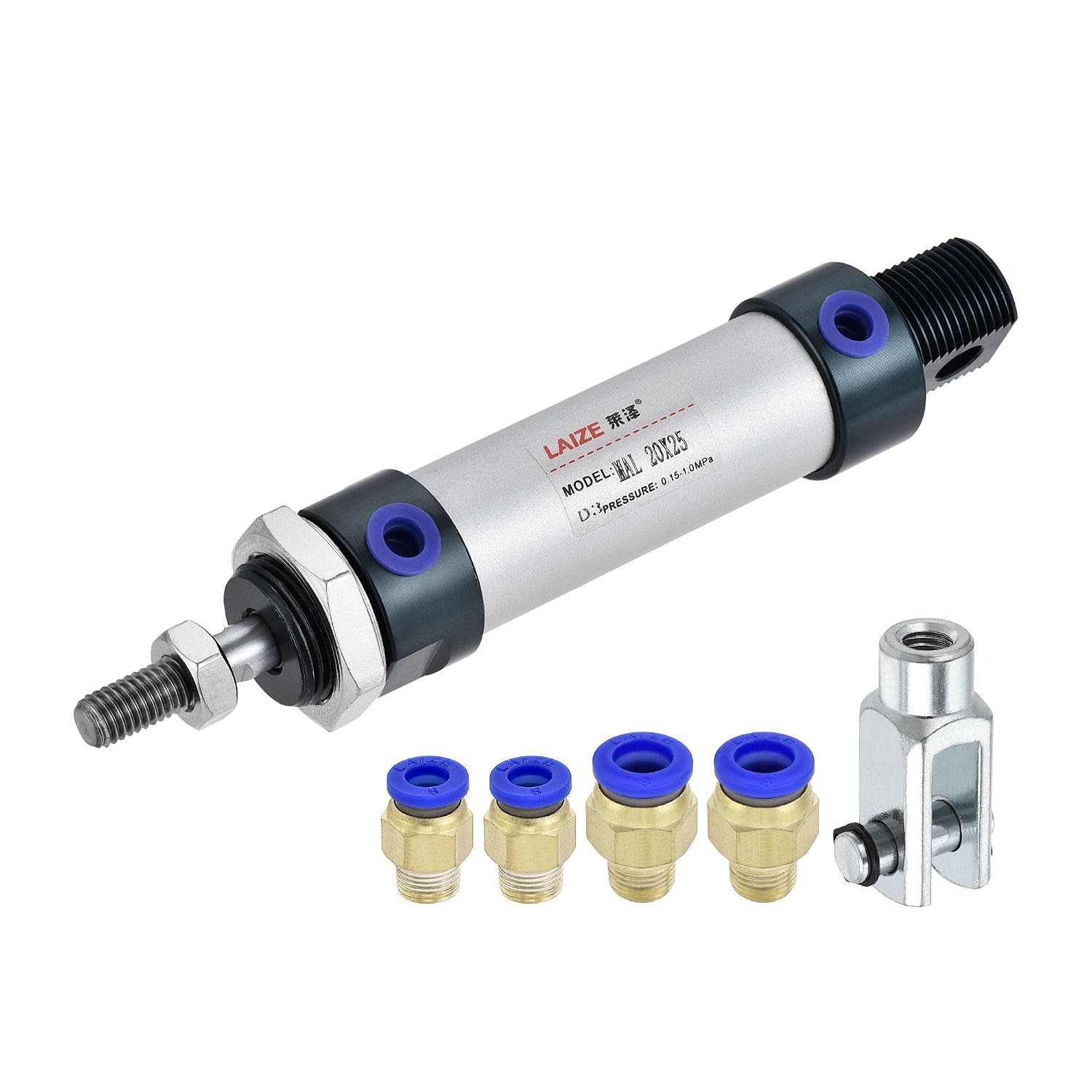

sourcing map Pneumatic Air Cylinder 20mm Bore 25mm Stroke with Y Connector and Quick Fittings, MAL 20x25, for Automatic Equipment
sourcing map Pneumatic Air Cylinder 20mm Bore 25mm Stroke with Y Connector and Quick Fittings, MAL 20x25, for Automatic Equipment - Image 2
sourcing map Pneumatic Air Cylinder 20mm Bore 25mm Stroke with Y Connector and Quick Fittings, MAL 20x25, for Automatic Equipment - Image 3
sourcing map Pneumatic Air Cylinder 20mm Bore 25mm Stroke with Y Connector and Quick Fittings, MAL 20x25, for Automatic Equipment - Image 4
sourcing map Pneumatic Air Cylinder 20mm Bore 25mm Stroke with Y Connector and Quick Fittings, MAL 20x25, for Automatic Equipment - Image 5

sourcing map Pneumatic Air Cylinder 20mm Bore 25mm Stroke with Y Connector and Quick Fittings, MAL 20×25, for Automatic Equipment

$59.99

  • Model: MAL 20×25; Bore: 20mm / 0.79″; Stroke: 25mm / 0.98″.
  • Single Rod, Double Acting, Includes Y Connector and 4pcs Quick Fittings.
  • Made of Aluminum alloy, corrosion and rust resistance, more durable, suitable for long-term use.
  • Correctly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be driven.
  • Widely use for used in pneumatic systems, such as automatic equipment, punching machine, pneumatic system maintenance, etc.

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Features:Made of Aluminum alloy, corrosion and rust resistance, more durable, suitable for long-term useoved sealing structure, good sealing, lubrication and guiding performanceectly connect the joint and air pipe to the air source and control unit, and connect the screw end to the component that needs to be drivenly use for used in pneumatic systems, such as automatic equipment, punching machine, pneumatic system maintenance, etcifications: Model: MAL 20x25Action Type: Double ActingRod Type: Single RodMaterial: Aluminum AlloyBore: 20mm / 0.79″Stroke: 25mm / 0.98″Port Size: G1/8Piston Rod Thread: M8x1.25mmRod Two End Thread Size : M22x1.5mmTotal Length: 160mm / 6.3″Working Pressure: 0.15~1.0 MPa / 22~145 PsiPackage Content:1 x Air Cylinder1 x Y Connector2Pcs x G1/8 to 6mm Quick Fitting2Pcs x G1/8 to 8mm Quick Fitting

Additional information

Weight 0.294 kg
brand

sourcing map
dimensions

‏
:
‎
23.1 x 10.6 x 5.1 cm; 294 Grams
