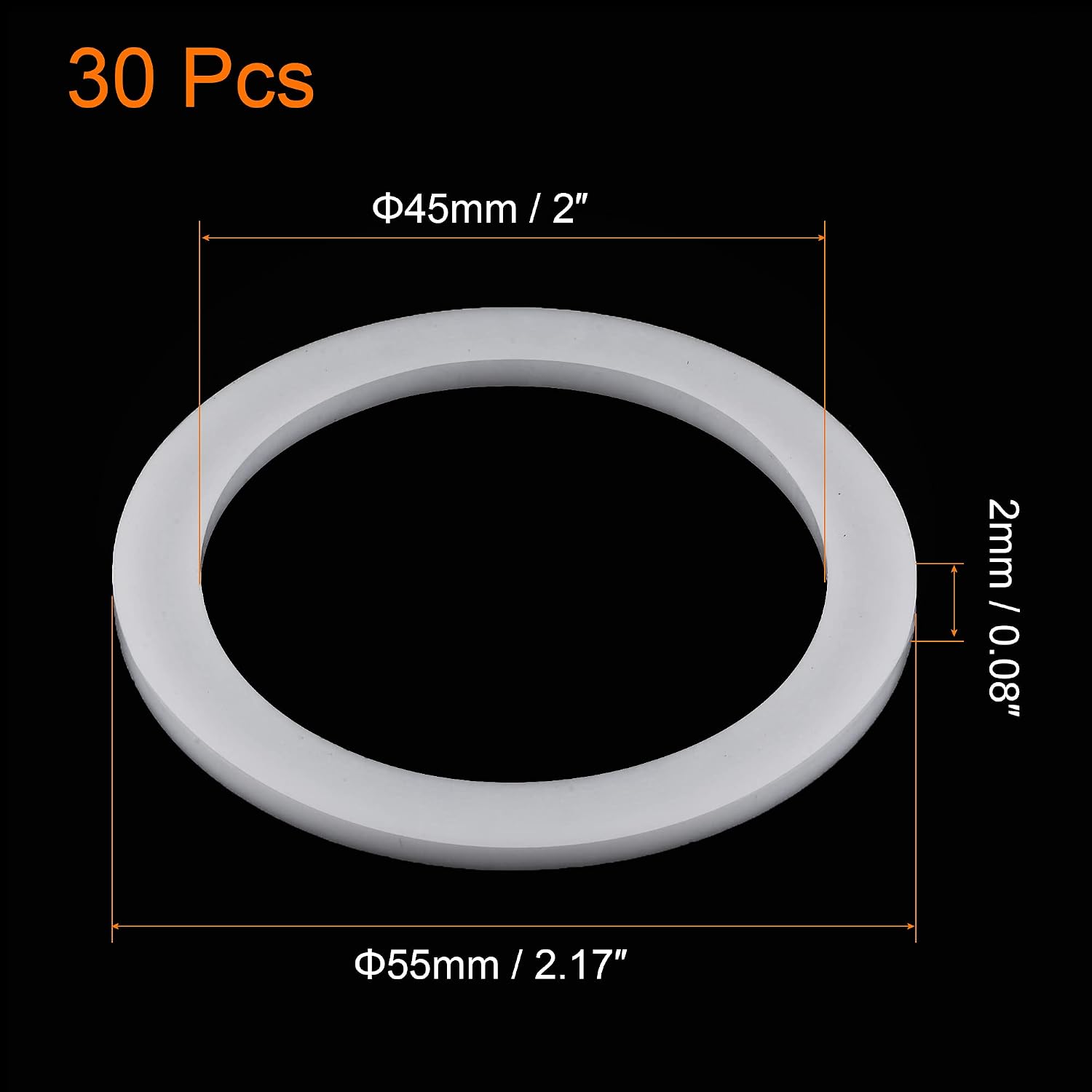

sourcing map PTFE Flat Washers 55mm OD 45mm ID 2mm Thick Flange Gasket, White Pack of 30: [Size & Temperature] – 55mm / 2.17" O.D. x 45mm / 1.77" I.D. x 2mm / 0.08" Thick; Working Temperature Range: -200°C to 250°C (-328°F to 482°F). [Technical Parameter] – Draw rate: 193%; Density: 2.19g/cm³; Dynamic Friction Factor: 0.06; Dielectric Strength: 15KV/mm; Tensile Strength: 19.5Mpa; Compressive Strength: 12Mpa.
Key features
- [Size & Temperature] – 55mm / 2.17" O.D. x 45mm / 1.77" I.D. x 2mm / 0.08" Thick; Working Temperature Range: -200°C to 250°C (-328°F to 482°F)
- [Technical Parameter] – Draw rate: 193%; Density: 2.19g/cm³; Dynamic Friction Factor: 0.06; Dielectric Strength: 15KV/mm; Tensile Strength: 19.5Mpa; Compressive Strength: 12Mpa
- [Function] – The 50A hardness sealing gasket provides a bearing surface for fastener load distribution or is used as a spacer between components
- Material: Polytetrafluoroethylene
Product specifics
- Brand: sourcing map
- Category: Washers
- Material: Polytetrafluoroethylene
- Part number: a21043000ux0276
