Description
Details

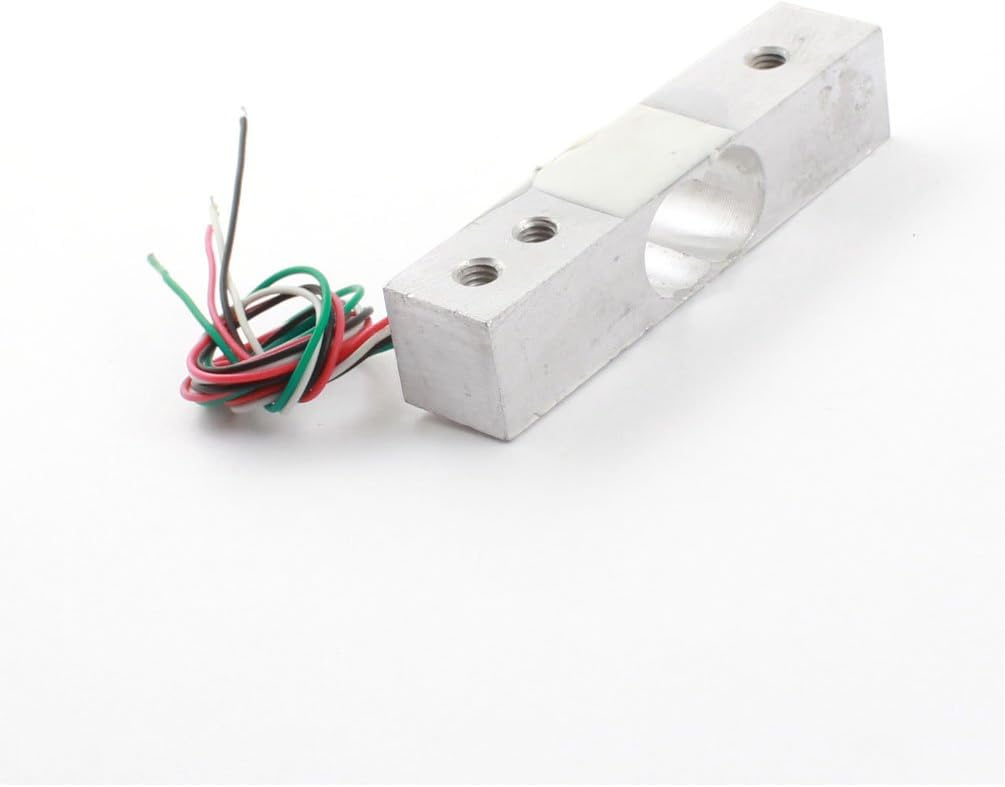

2Kg 3mm 3-Hole Aluminium Alloy Portable Electronic Scale Load Cell: Product Name : Load Cell; Model : YZC-131;Rated Load : 2Kg /4.4lb;Rated Output : 1.2+/-0.1mV/V. Input Resistance : 1066 +/- 20 Ohm; Output Resistance : 1000 +/-20 Ohm; Insulation Resistance : 2000 Ohm; Working Temperature : -20C~+65C.
Key features
- Product Name : Load Cell; Model : YZC-131;Rated Load : 2Kg /4.4lb;Rated Output : 1.2+/-0.1mV/V
- Input Resistance : 1066 +/- 20 Ohm; Output Resistance : 1000 +/-20 Ohm; Insulation Resistance : 2000 Ohm; Working Temperature : -20C~+65C
- Compensated Temperature Range : -10C~+50C;Safety Overload : 120%F.S;Recommend Excitation Voltage : DC 5V;Max Excitation Voltage : DC 10V
- Material: Aluminum
Product specifics
- Brand: sourcing map
- Category: Wire Brushes
- Material: Aluminum
- Model: a14071900ux0072
- Part number: a14071900ux0072
