Description

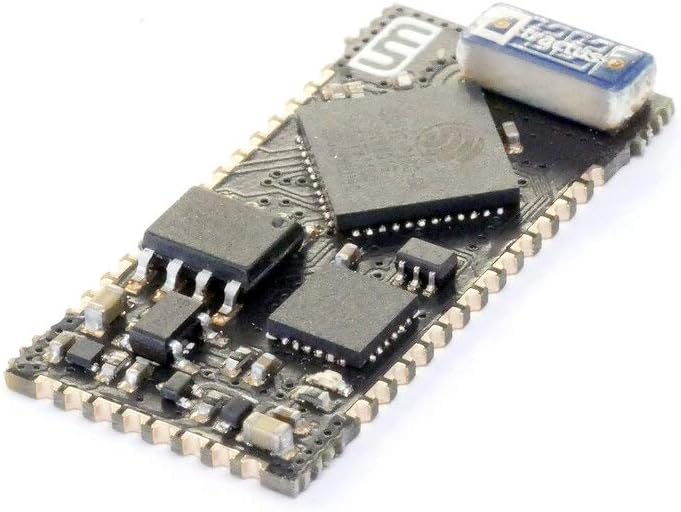

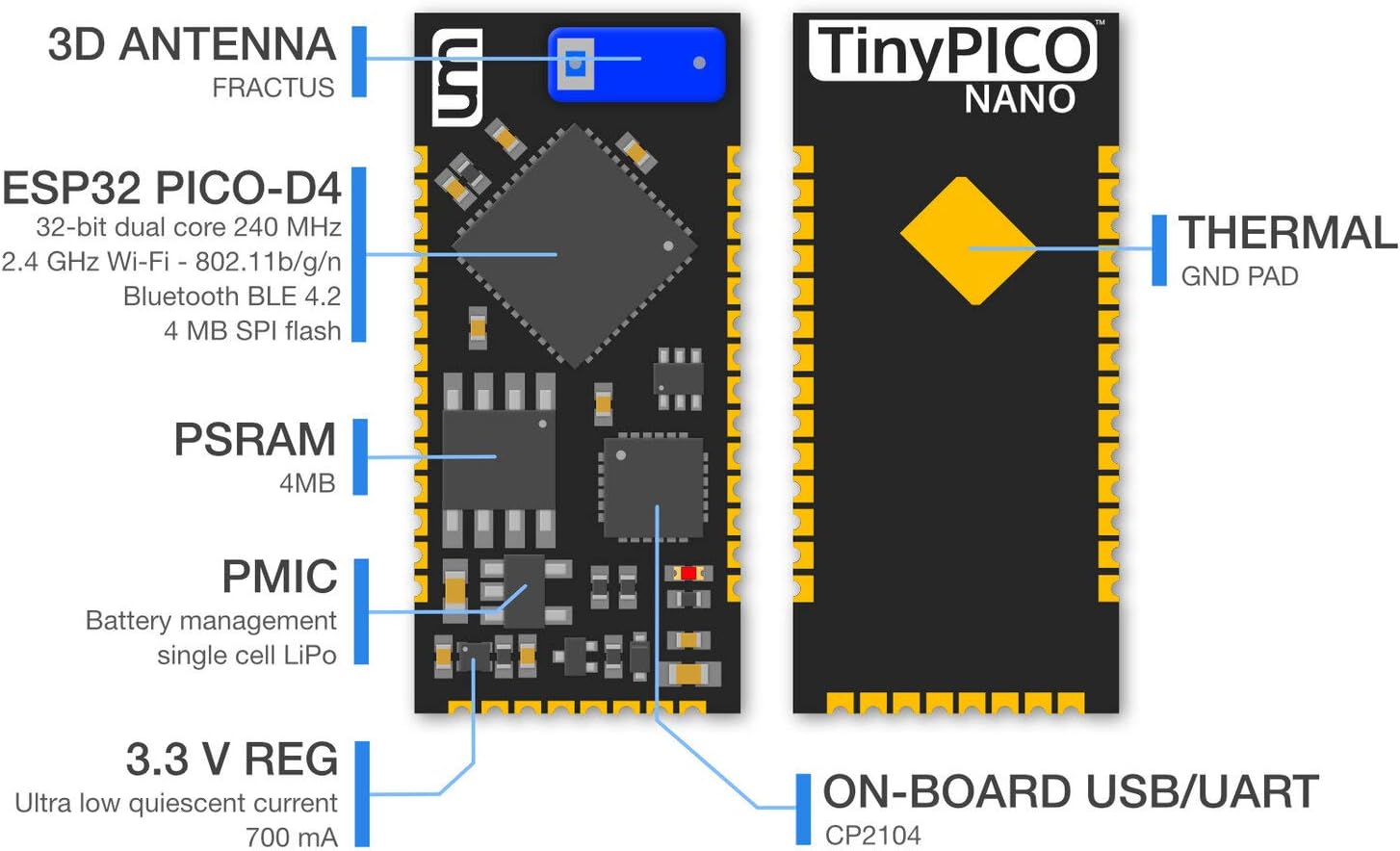

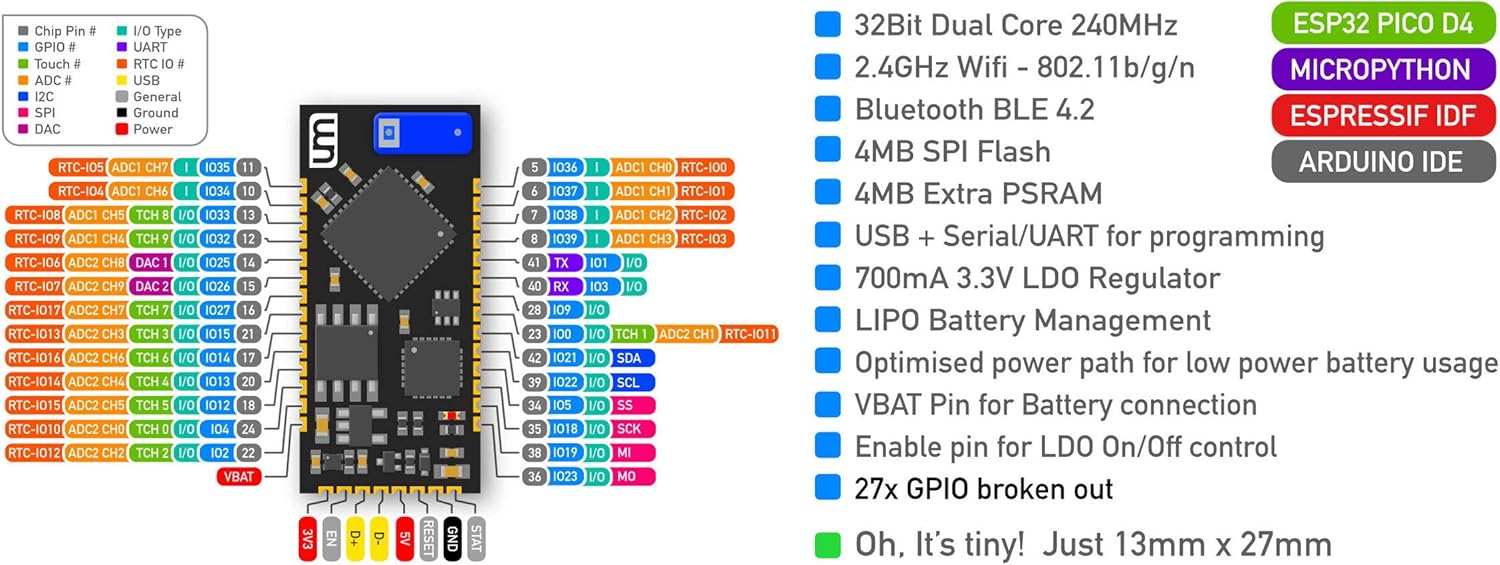

TinyPICO NANO is the world’s smallest, fully-featured ESP32 microcontroller module! Technical Specifications – 32Bit Dual Core 240MHz – 2.4GHz Wifi – 802.11 b/g/n – Bluetooth BLE 4.2 – 4MB SPI Flash – 4MB Extra PSRAM – USB + Serial/UART for Programming – 700mA 3.3V LDO Regulator – LIPO Battery Management – Optimized Power Path for Low Power Battery Usage – VBAT Pin for Battery Connection – Enable Pin for LDO On/Off Control – 27X GPIO Broken Out – Measures Only 13 mm x 27 mm
