Description
Tips: Machine taps are suggested to be used with tap collets with overload protection. Hand use is easy to cause damage to the tap due to uneven force.

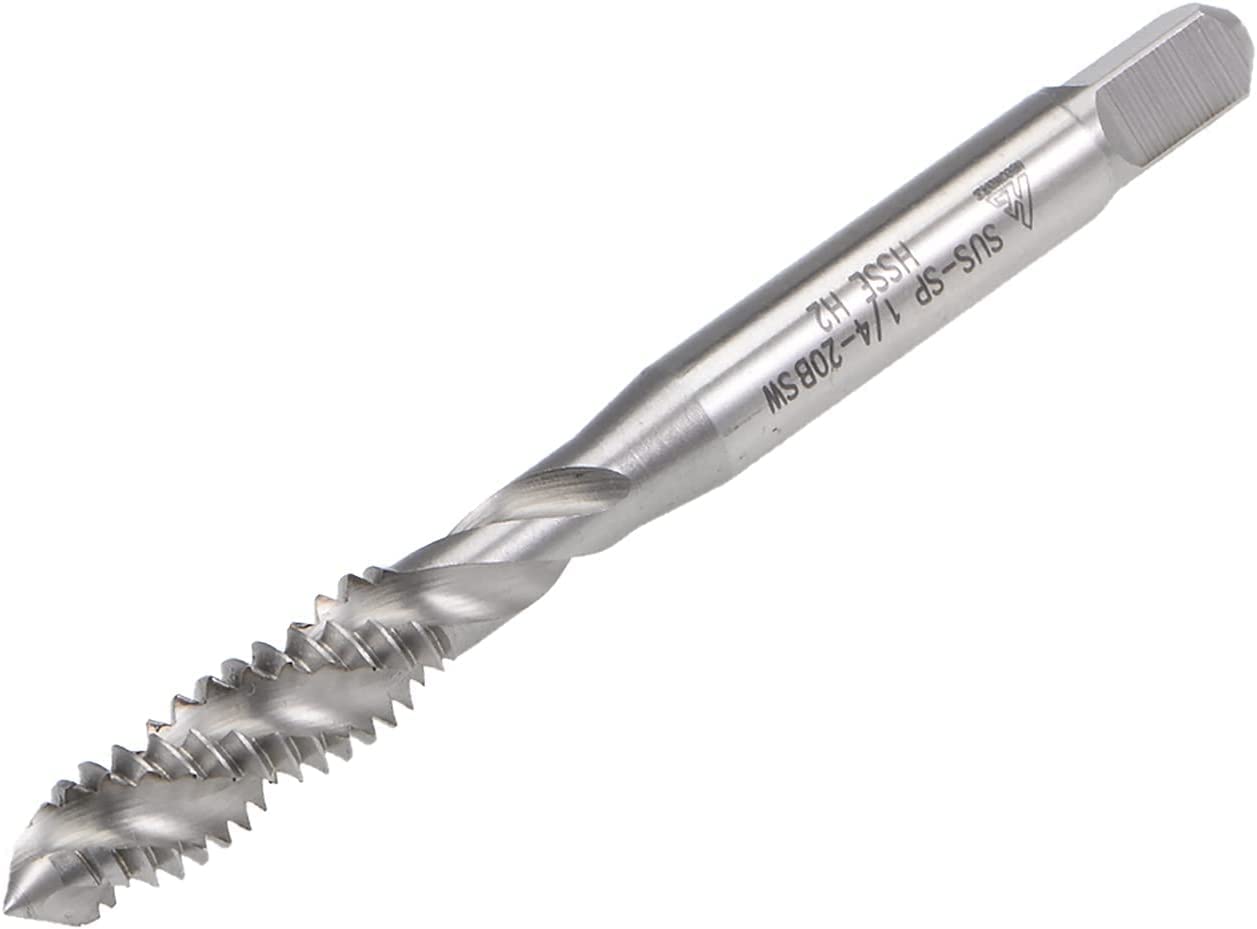

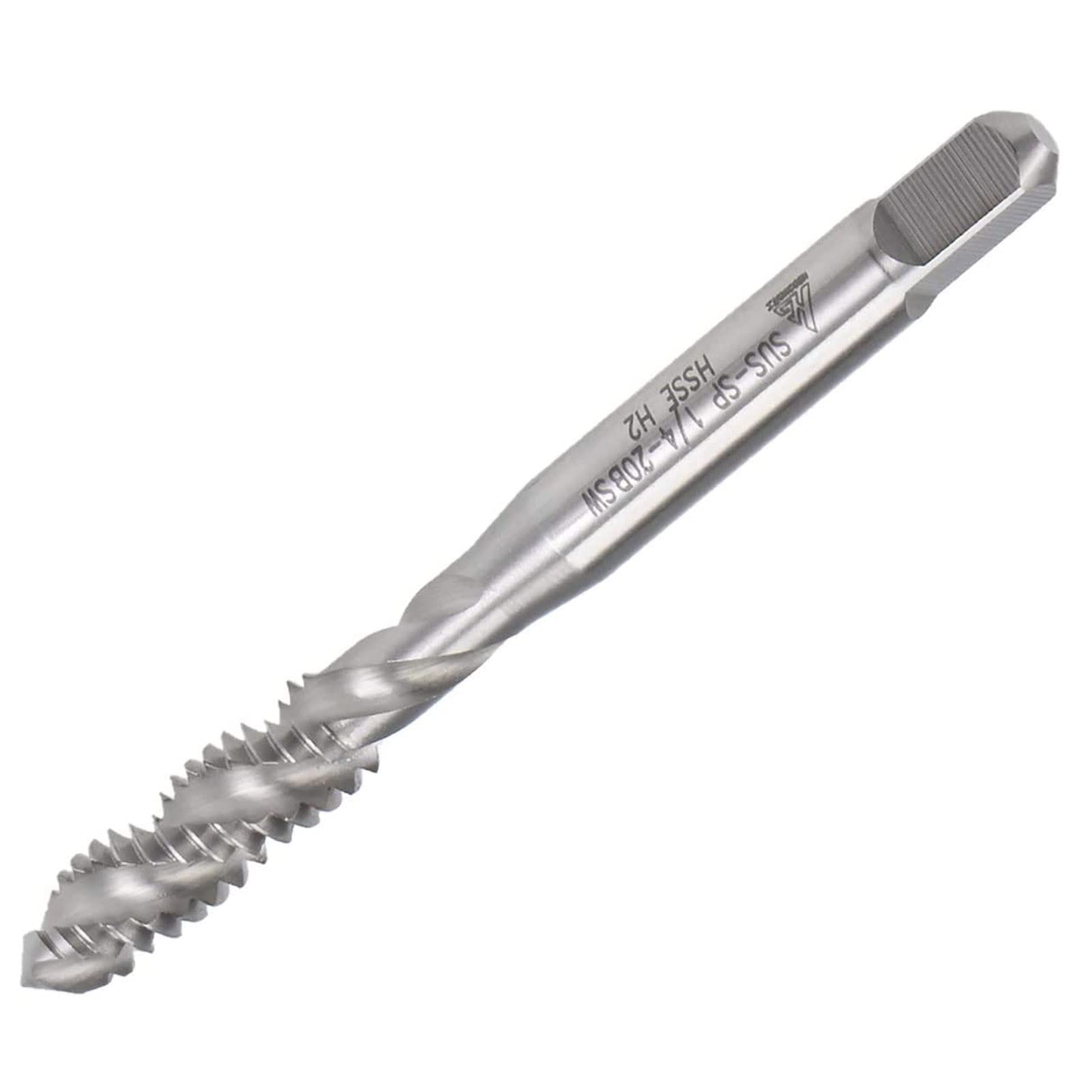

TOP-VIGOR 1/4″-20 BSW Spiral Flute Thread Tap, Metric Machine Threading Tap H2 Tolerance, HSS-Cobalt(5% Co) Uncoated Thread Milling Tap, Round Shank with Square End
$0.00

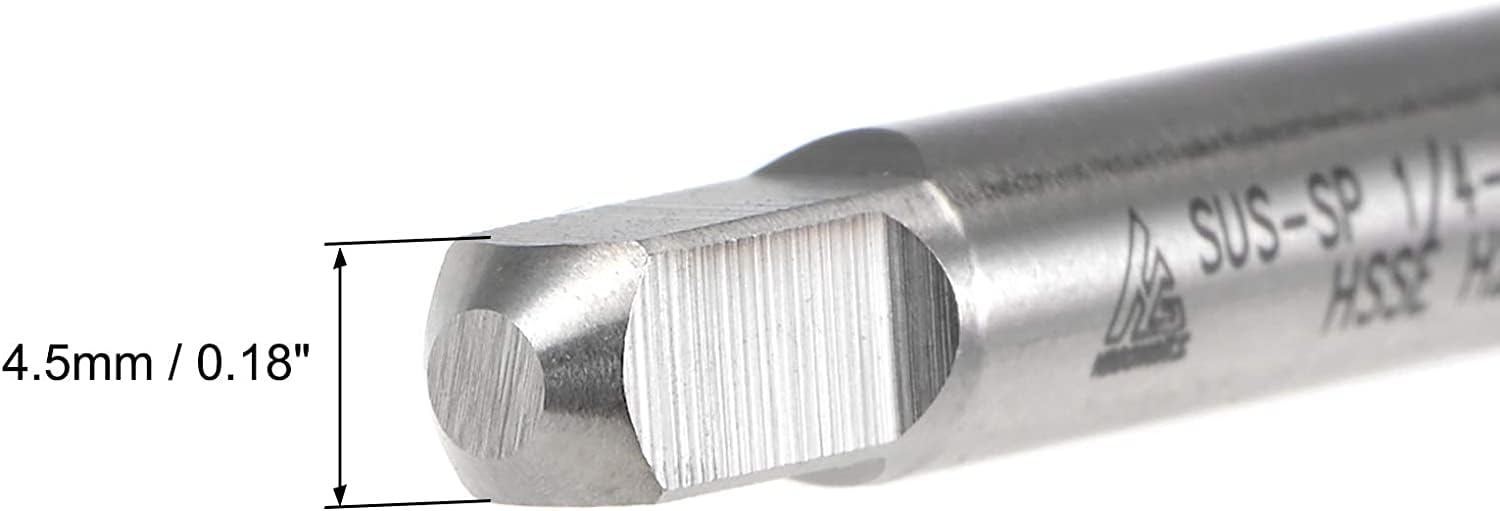

- Tap Size – Thread Size: 1/4″-20 BSW, Tolerance: H2, Thread Length: 20mm / 0.79″, Square End Size: 4.5mm / 0.18″, Round Shank Dia.: 6mm / 0.24″, Total Length: 66mm / 2.6″
- HSS Material- This 1/4″-20 BSW metric threading tap is made from M35 cobalt high-speed steel tool (5% Co) with high high hardness (67HRC), toughness and heat resistance, providing excellent durability and resistance to wear and tear. Just the base substrate without any additional coatings.
- Spiral Flute Design – The spiral flute design of this threading tap helps to ensure that chips are effectively removed during the threading process, reducing the likelihood of thread damage or breakage.
- Square End for Easy Use – The square end of this threading tap ensures a secure grip when used with a wrench, allowing for greater precision and control during the threading process. Used on drilling machines, tapping machines, CNC and milling machines.
- Precision Machining – With H2 tolerance and a round shank with square end, this threading tap provides precise and accurate threads in a variety of materials, including stainless steel, aluminum, and other metals, making it ideal for both professional machinists and DIY enthusiasts.
Out of stock
