Description
s:
Brass Pipe Fitting is used for the connection of hydraulic oil circuits and pneumatic pipelines. Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way.
1. This coupling has fluted connections at both ends to connect two pipes at one angle.
2. Barbed rods create a waterproof seal on the flexible and semi-rigid hose when used with a clamp or a crimp sleeve or a ferrule (not included).
3. Hose connections connect, control, change direction and finish flow in piping and pipe systems.
How to use it?
A.The barbed end is connected to the hose, which is usually used with a hose clamp, crimp sleeve, or ferrule (not included in the package) to form a tight seal.
B.The threaded end is connected to the pipe, which is usually used with a ferrule and sealant Tape (not included in the package) to form a tight seal.
Specifications:

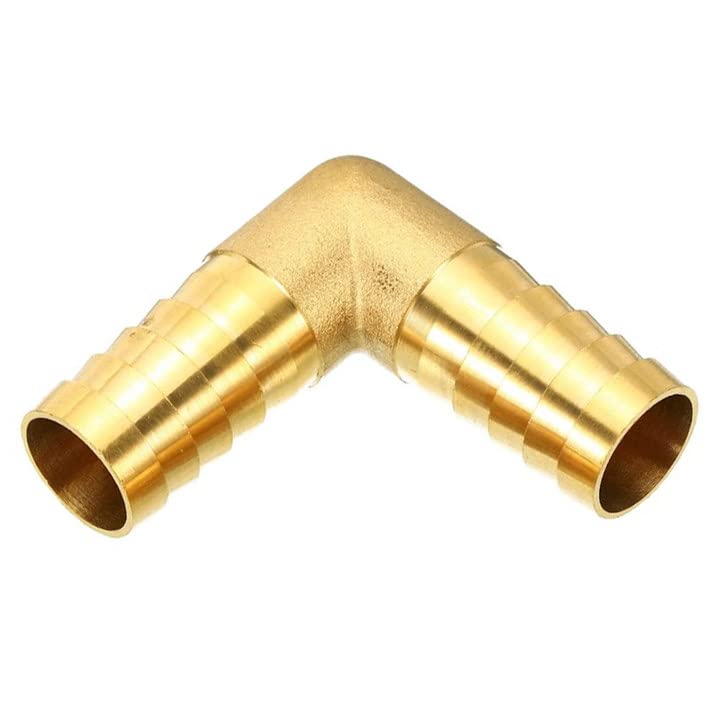

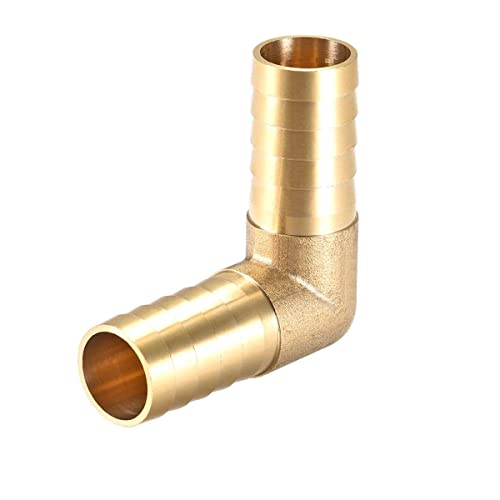

Product name: Barb Elbow Pipe Connector
Material: Brass
Color: Gold Tone
Passivation Barb Diameter: 19 mm.

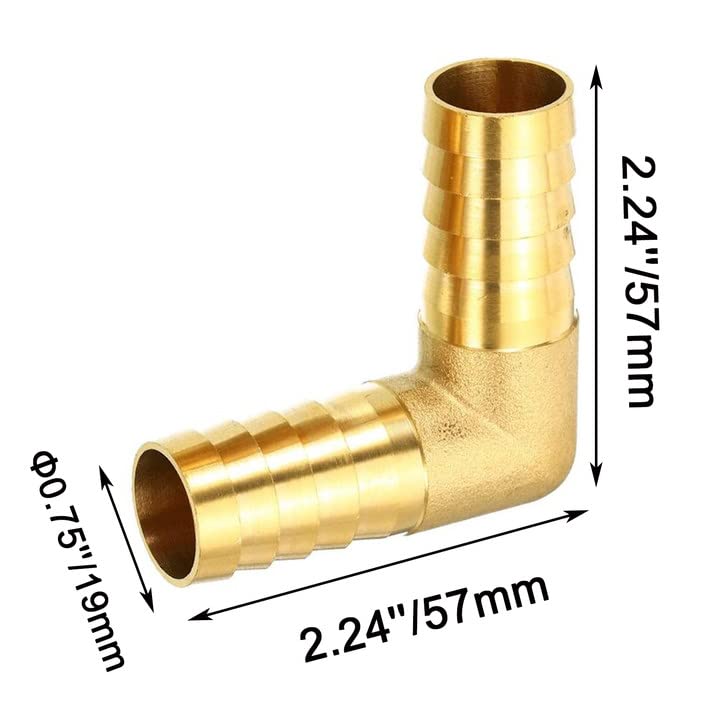

Total size: 57 mm x 57 mm x 19 mm/2.24 x 2.24 x 0.75 inches (L x H x T)
Package Contents:
1 x 19MM Elbow Pipe Connector
