Description
e device cannot detect live cables, so make sure cables are neutral before connecting the device. Safeguards must be taken. Live cables would bring damage to this device, and danger to users!)

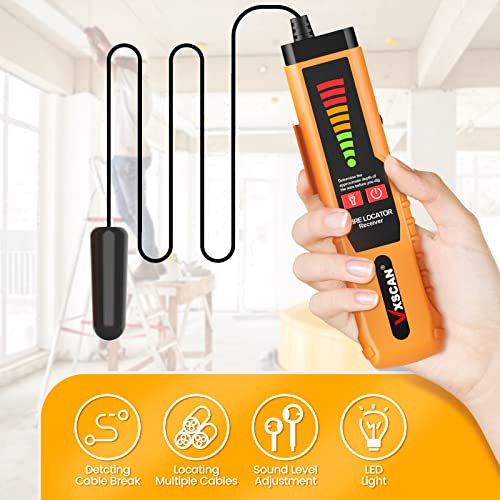

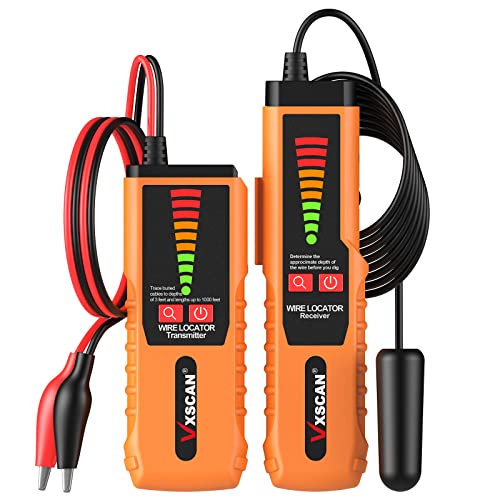

VXSCAN F04 Underground Cable Non-Destructive Locator 8 features:
1.With new wireless signal transmitting & receiving technology, it can quickly locate breakage point, short-circuit point and direction of underground cables and no need to break insulators on the surface of cables
2.Reduce electromagnetic noise interference to enhance users’ judgement via simulating digital communication mode
3.Adjustable wireless transmission power, adjustable sound-receiving controller and high-sensitivity earphone bring more convenience and comfort
4.The receiver with lighting function also applies to low-light conditions.
5.Movable detecting head relieves users’ stoop work intensity, and improve detecting depth of blind ditch.
6.Lower-power consumption extends prolong working hours.
7.Supplied power by 9V electronic technology battery. Easy to replace.
8.Detection reaches 1000 feet in distance and 2 feet in depth. Portable, easy and fast.
Technical parameters
Transmitter technical parameters
output signal：546kHz
Red and black clips prevent burning：≤ 300V
Power Supply：1 × 6F22 9V
Minimum current：About 8 mA
maximum current：About 75 mA
Temperature and humidity of working environment：0°C -40°C.<80%RH Storage：-20°C - 60°C , 70%RH
Dimensions (L x W x H)：127mm × 48mm x 32mm
Without the battery：About 90g
Technical parameters of receiver
Tracking depth Detection depth range：About 0 - 50cm
Detection length range：About 0 - 500m
Power Supply：1x6F22 9V
Minimum current：About 10mA
maximum current：About 67 mA
Work：0°C -- 40°C, <80%RH
Storage：-20°C - +60°C, 70%RH
Dimensions (L x W x H)：160mm X 44mm X 27 mm
Without the battery：About 120g
