VooGenzek 0.28″ LED Voltmeter Ammeter, Detector Voltage Current Meter Panel Amp Volt Gauge, DC 0-100V 50A, with 50A Current Shunt, for Multimeter Amperage Meter Volt Amp Gauge Panel

$0.00

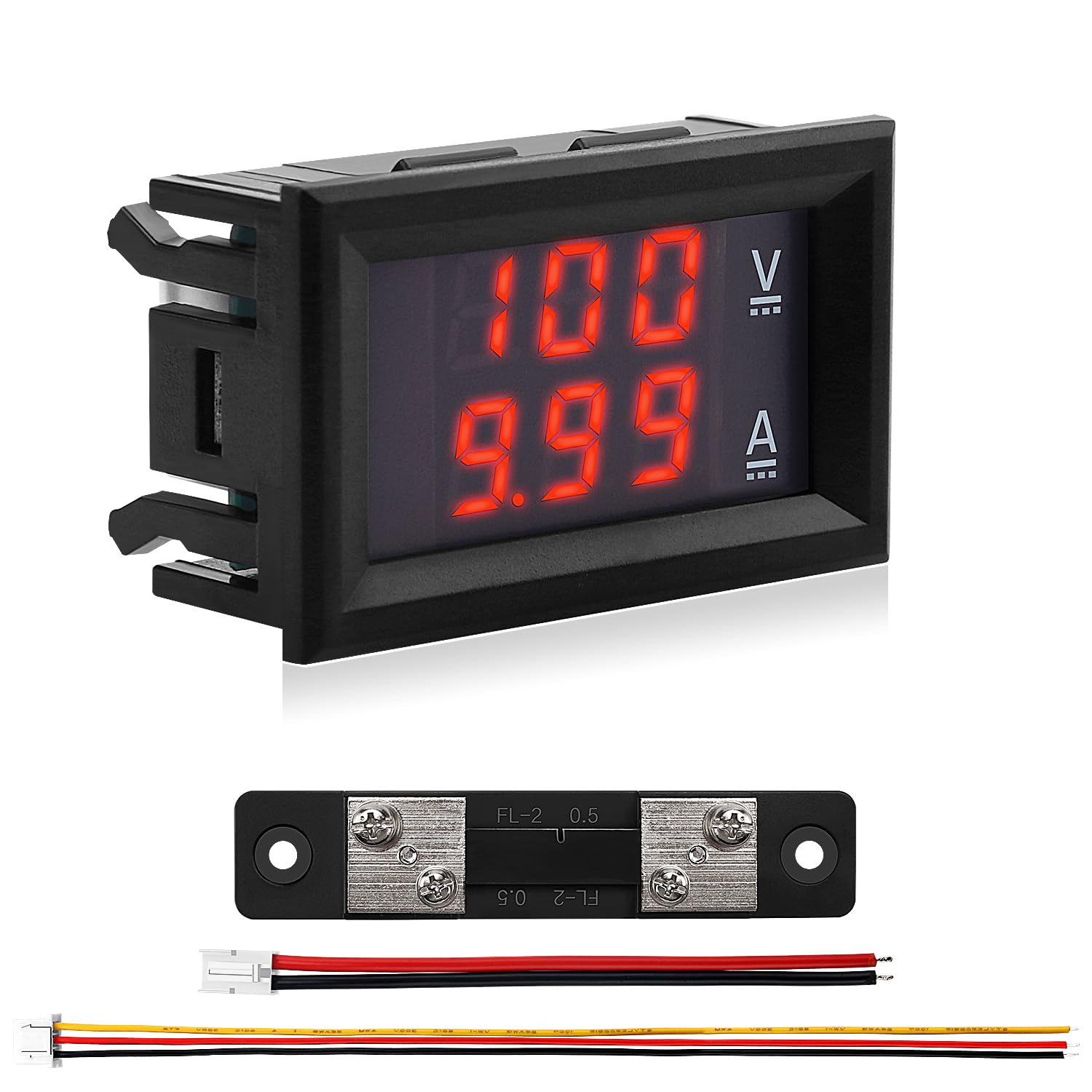

  • Package Includes: 1 PC LED Voltmeter Ammeter and 1 PC 50A Current Shunt.
  • Voltage measuring range: 0-100 V DC; current measuring range: 0-50A (decimal point moves automatically).
  • Display mode: 0.28″ LED digital tube Display color red.

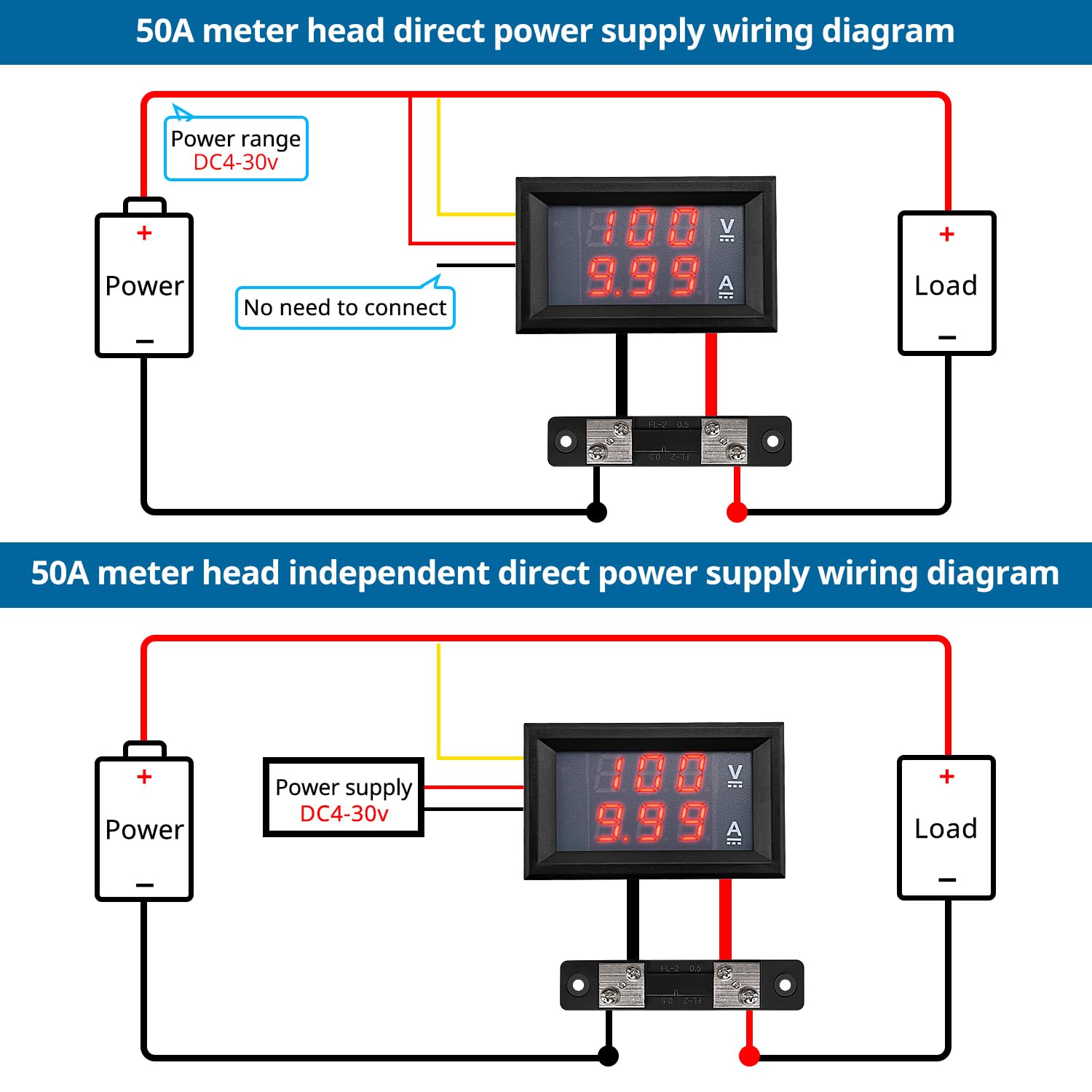

  • Shunt: The DC 0-100V 50A LED voltmeter ammeter must be connected to a 50A Current Shunt, otherwise it will burn out.
  • Connection Protection: With reverse connection protection to avoid burning from reverse connection.

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

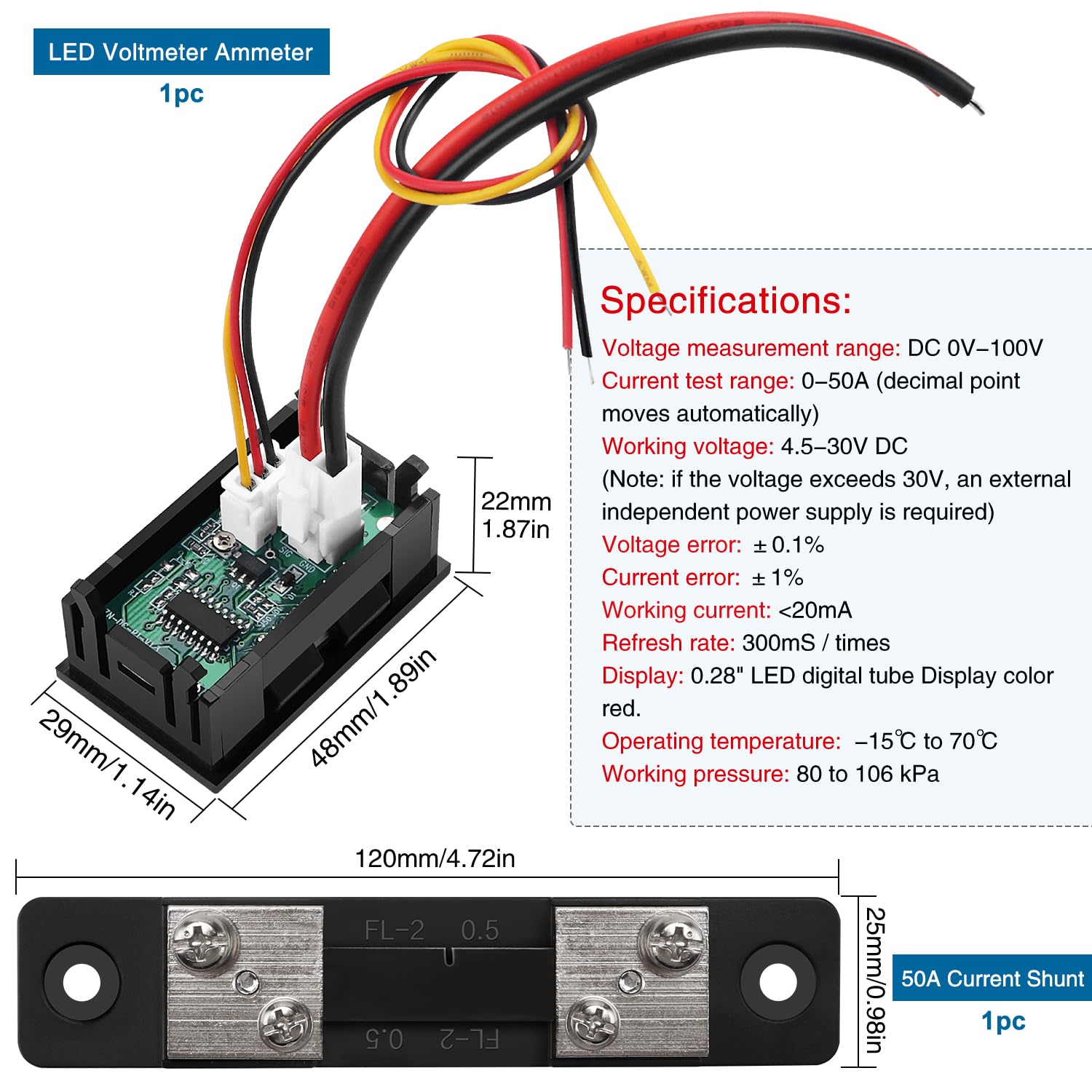

Specifications:
Voltage measurement range: DC 0V-100V
Current test range: 0-50A
Working voltage: 4.5-30V DC
(Note: if the voltage exceeds 30V, an external independent power supply is required)
Voltage error: ±0.1%
Current error: ±1%
Working current: <20mA Refresh rate: ≥300mS / times Display: 0.28" LED Digital Tube Operating temperature: -15℃ to 70℃ Working pressure: 80 to 106 kPa Package Included: 1 × LED Voltmeter Ammeter 1 × 50A Current Shunt

Additional information

Weight 0.11 kg
Brand

VooGenzek
SKU: B0CHVF79DJ Category: Tags: , , ,
