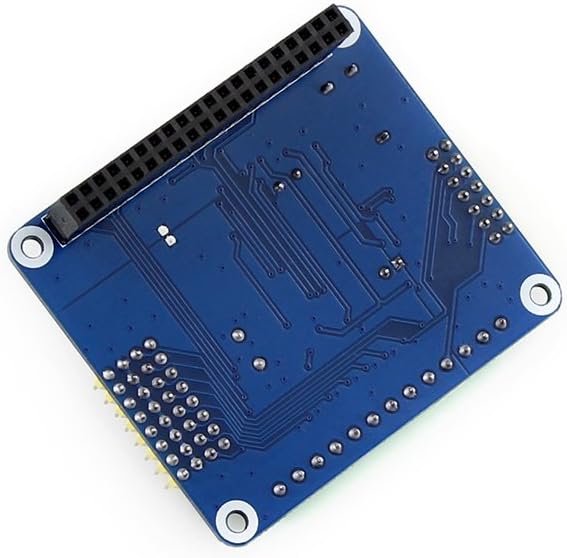

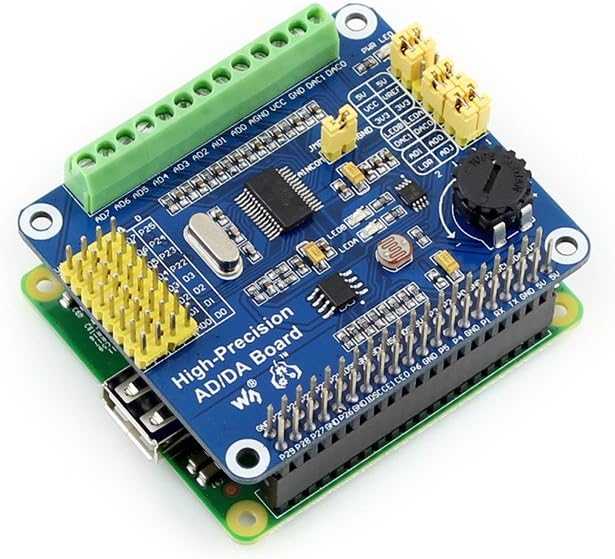

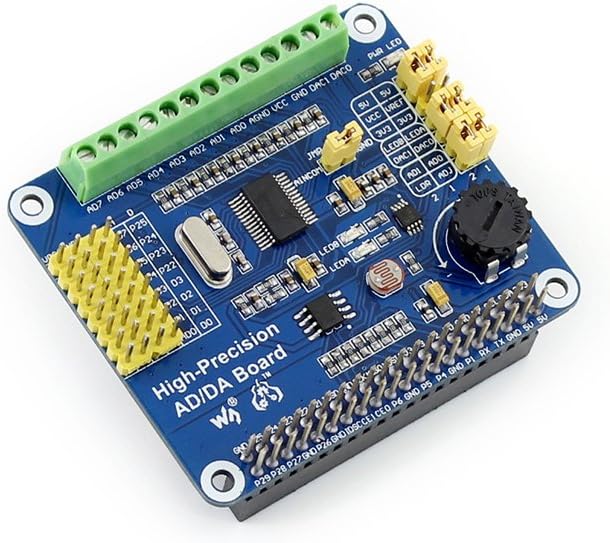

Raspberry Pi AD/DA Expansion Sheild Board for Adding High-Precision AD/DA Functions to Raspberry Pi Onboard ADS1256 DAC8552 Sensor Input/output Interface: Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate; Onboard DAC8532, 2ch 16bit high-precision DAC.
Key features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate; Onboard DAC8532, 2ch 16bit high-precision DAC
- Onboard input interface via pinheaders, for connecting analog signal: the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules
- Size: AD/DA Expansion Board
Product specifics
- Brand: Waveshare
- Category: USB Hubs
- Size: AD/DA Expansion Board
- Part number: waveshare
