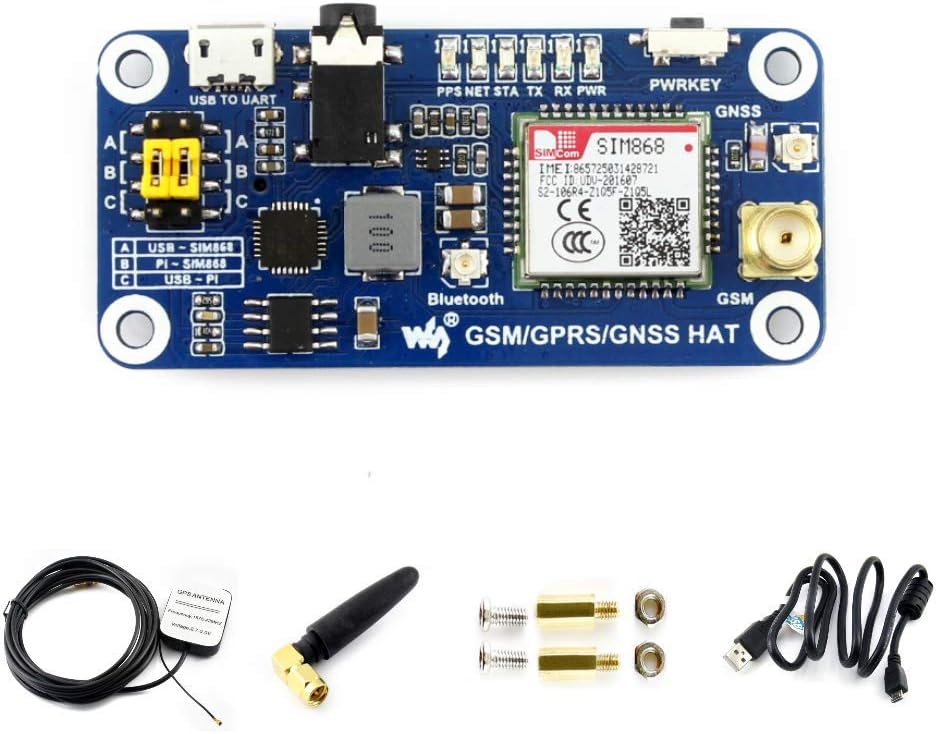

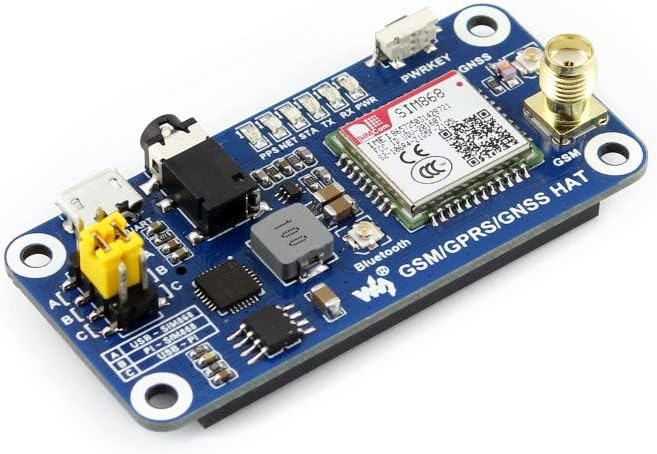

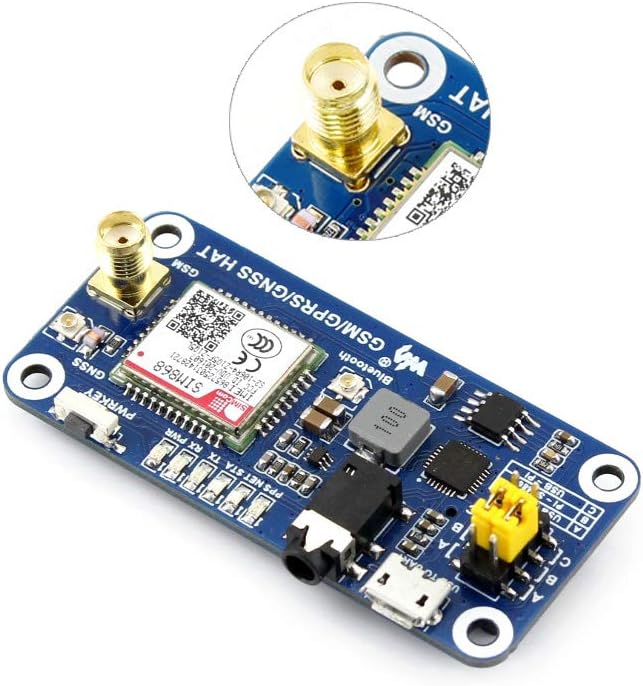

Waveshare Pi GSM/GPRS/GNSS HAT Expansion Board with Low-Power Consumption Based on SIM868 Compatible with Raspberry Pi 2B 3B Zero Zero W: Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning; Supports data transferring. Onboard USB TO UART converter CP2102 for UART debugging; 6x LEDs for indicating the module working status; SIM card slot for 1.8V/3V SIM card.
Key features
- Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning; Supports data transferring
- Onboard USB TO UART converter CP2102 for UART debugging; 6x LEDs for indicating the module working status; SIM card slot for 1.8V/3V SIM card

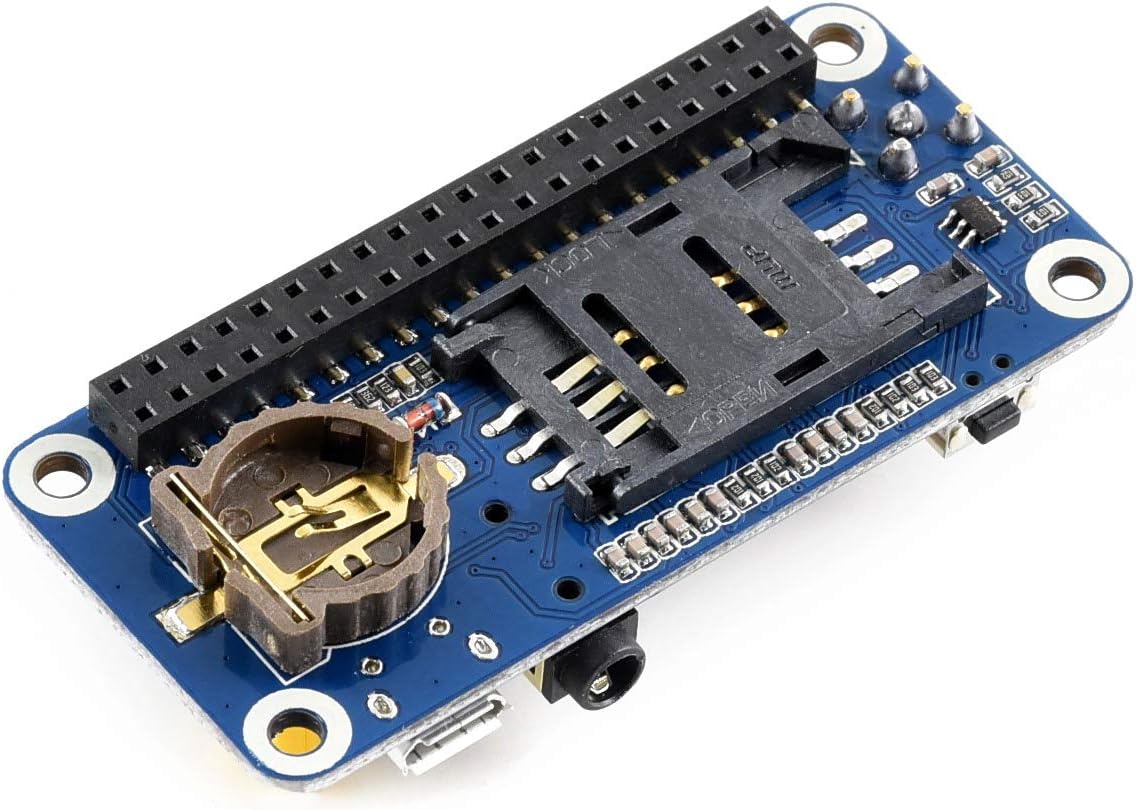

- RTC with backup batt holder;Baudrate auto detection (1200bps ~115200bps); Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Size: GSM/GPRS/GNSS HAT
Product specifics
- Brand: Waveshare
- Category: Barebone PCs
- Size: GSM/GPRS/GNSS HAT
- Model: GSM/GPRS/GNSS HAT
- Part number: GSM/GPRS/GNSS HAT
