Description

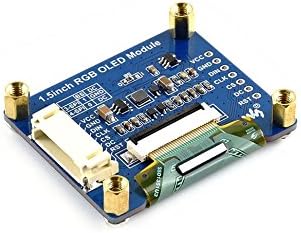

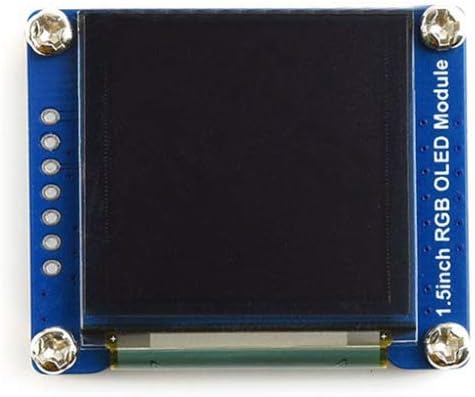

Overview This is a general RGB OLED display Module, 1.5inch diagonal, 128×128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interfaceures 128×128 high resolution, 65K colors, clearly displays colorful images Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications Driver: SSD1351 Interface: 4-wire SPI, 3-wire SPI Display color: RGB, 65K colors Resolution: 128×128 Viewing angle: >160° Operating voltage: 3.3V / 5V Dimension: 44.5 x 37 (mm)Interface: Port Description VCC Power (3.3~5V input) GND Ground DIN Data input CLK Clock data input CS Chip selection, low active DC 4-wire SPI: Data/Command selection (high for data, low for command) 3-wire SPI: Connects to GND, keeps low RST Reset, low active There are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI: BS DC 4-wire SPI 0 DC 3-wire SPI 1 Connects to GNDPackage Includes: 1 X 1.5inch OLED Display Module 1 X PH2.0 7P dupond cable
