Description

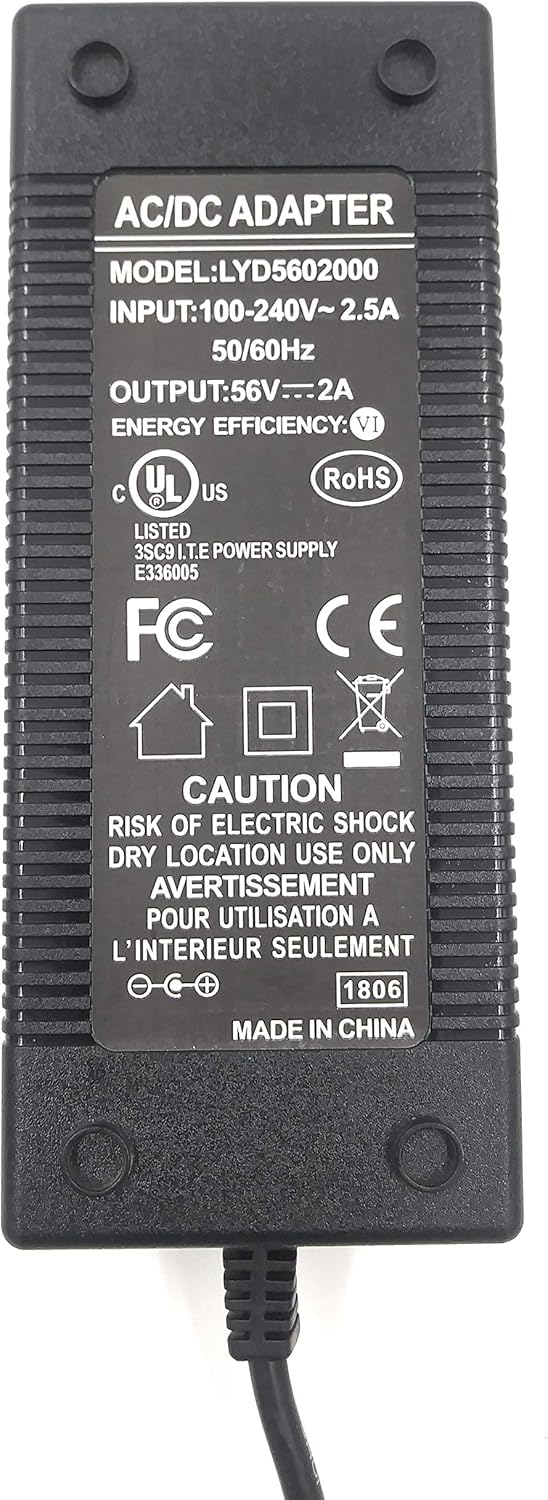

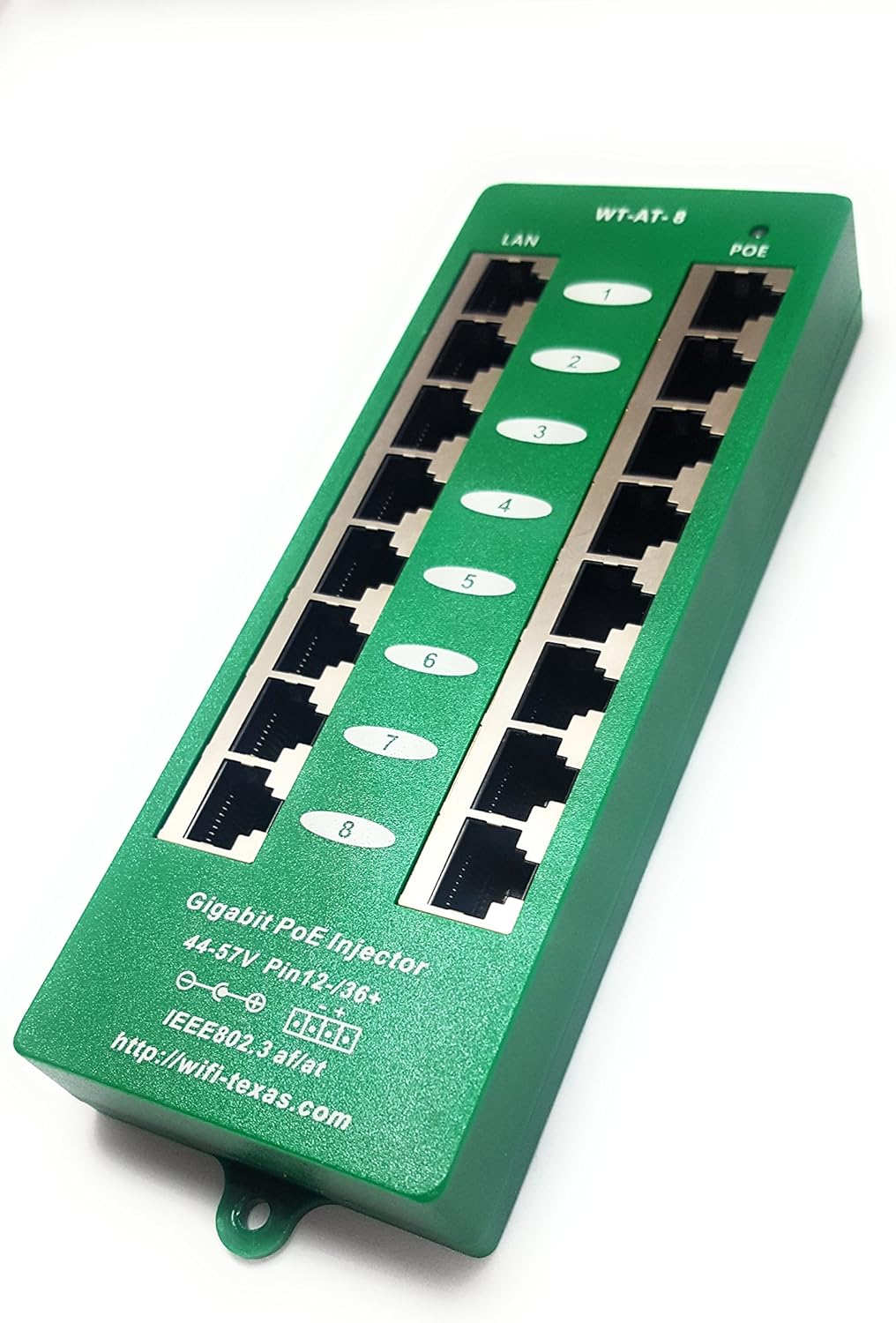

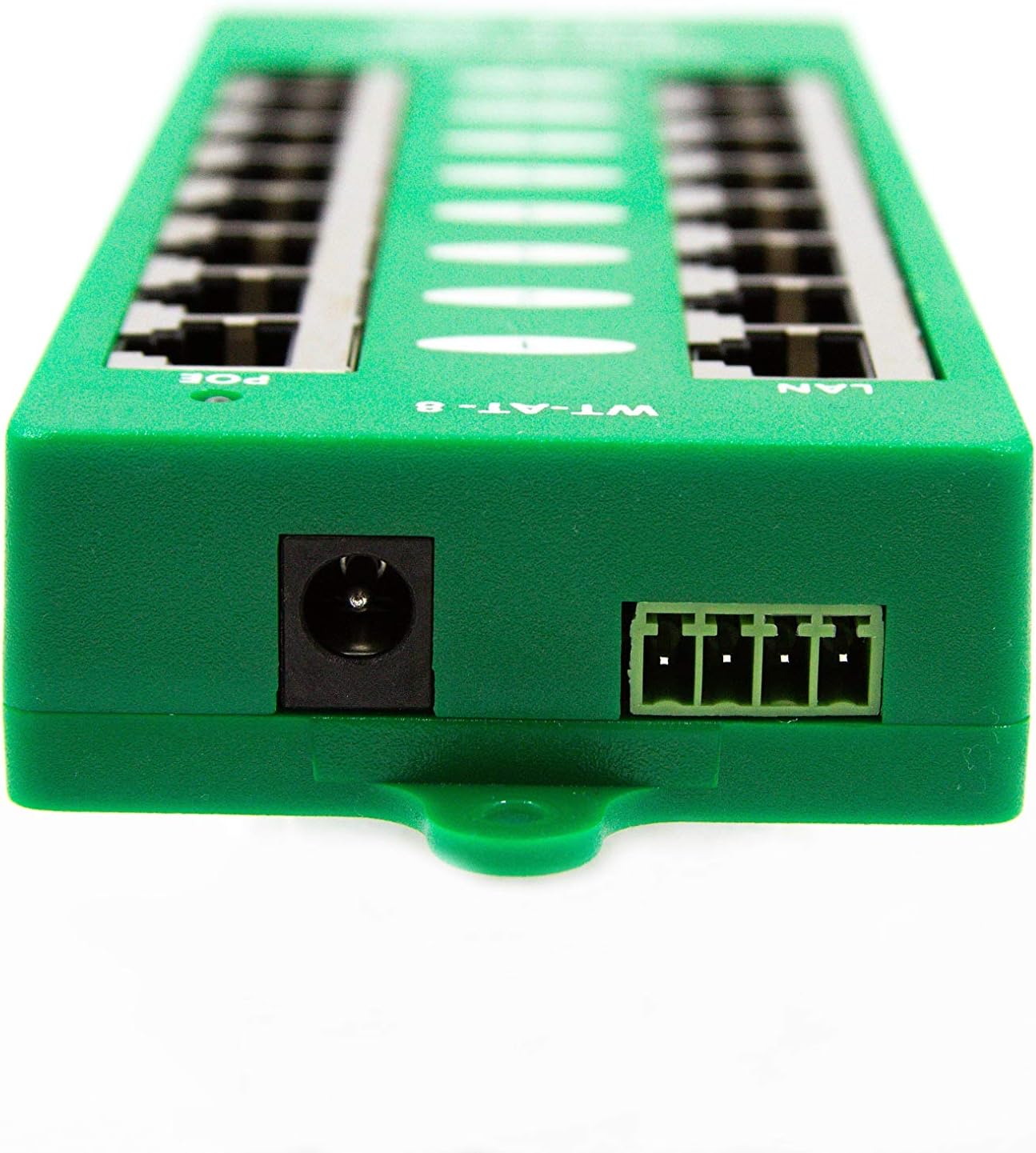

8 port Gigabit PoE+ auto negotiating injector – Includes 56v 120 watt power supply Allows 10/100/1000 data speed and is able to provide up to 25 watts of power to each individual port. It negotiates with 802.3af 802.3at devices and gives the device the power it needs No power is given until a PoE device is found and activated. Used to power cameras, phones, and access points
Features Wall mount Use with any PoE or non-PoE switch No power given to non-PoE devices LED power display 10/100/1000 data speed 56 volt power supply with 120 watts of power Protected extra low voltage – PELV per NFPA standard 79 550 ma current limiter per port 2.1mm x 5.5mm DC plug Mode A output pins: 1&2 (-) and 3&6 (+) Quiet operation – no fan or cooling required Operating temperature: 0°C ~ 50°C Storage temperature: 0°C ~ 50°C Humidity range: 5% to 90% non-condensing
Product Specifications Size:116 x 45 x 25 mm includes 2 10mm tabs Weight: 24 ounces
Other Options 4, 16 port version available 6, and 12 wall mount Gigabit injectors 6 and 12 rack mount injectors
Similar Products WT-GAT-4-48v30w WT-GAT-4-48v60w WT-GAT-4-48v120w WT-GAT-4-56v60w WT-GAT-4-56v120w
