Description
How to Use:
1. Clear code: Simultaneously press and hold the two buttons above, make sure that the LED flashes once and then turn off without letting go. After 2 seconds, the LED light starts to flash, indicating that the code has been cleared.
2. Recovery: Press and hold the two buttons below at the same time, and after 3 seconds, the LED light will start flashing, indicating that the code has been restored to the last cleared code.
3. Copy the original remote control in your left hand and our self-taught remote control in your right hand, with the two remote controls as close as possible. Press the corresponding button keys of both remote controls at the same time, and the LED light will continuously flash, indicating that the code of the button keys of the original remote control has been learned by our self-taught remote control. The other three button keys also operate in the same way.
4. When you accidentally clear the code of the self copying remote control, you can press both buttons below at the same time. After 3 seconds, the LED light will light up and then flash quickly, indicating that the code of the self copying remote control has been restored.
Note: Before using our self copying remote control to copy, please make sure to clear the existing codes on the self copying remote control.
NOTE:
Test whether the existing code of the self copying remote control has been successfully cleared:
The speed of LED flashing is that when you finish clearing the code, you can press any key on the sub copy. If the LED immediately flashes once and then goes out, it indicates that the sub copy code has been cleared
Specification:
Material: Plastic
Color: Black & Silver
Button Battery: 3V CR2016
Rated Current: 0.3A
Operating Frequency: 433MHz
Remote Control Range: Up to 50 meters
Supported IC Code:
222660 (for example, PT222660, SC2260, HS222660 LX2260, HS2260 LX2260, HX2260, HX2260, etc.); 2262 (for example, PT2262, SC2262, HS2262, HX2262, HX2262, HX2262, etc), PT2264, PT222240 (LX2240 LX2241 SCL2240), S5211,1527（EV1527, HS1527, HX1527, SC1527, GP1527, CP1527, AD1527, SCL1527, TL1527, ZX1527, SMC918, AX5026, SMC926, AX5326-3, AX5326-4, FP527, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F630, Codes with the same suffix, such as SC2262 and PT2262
Package List:

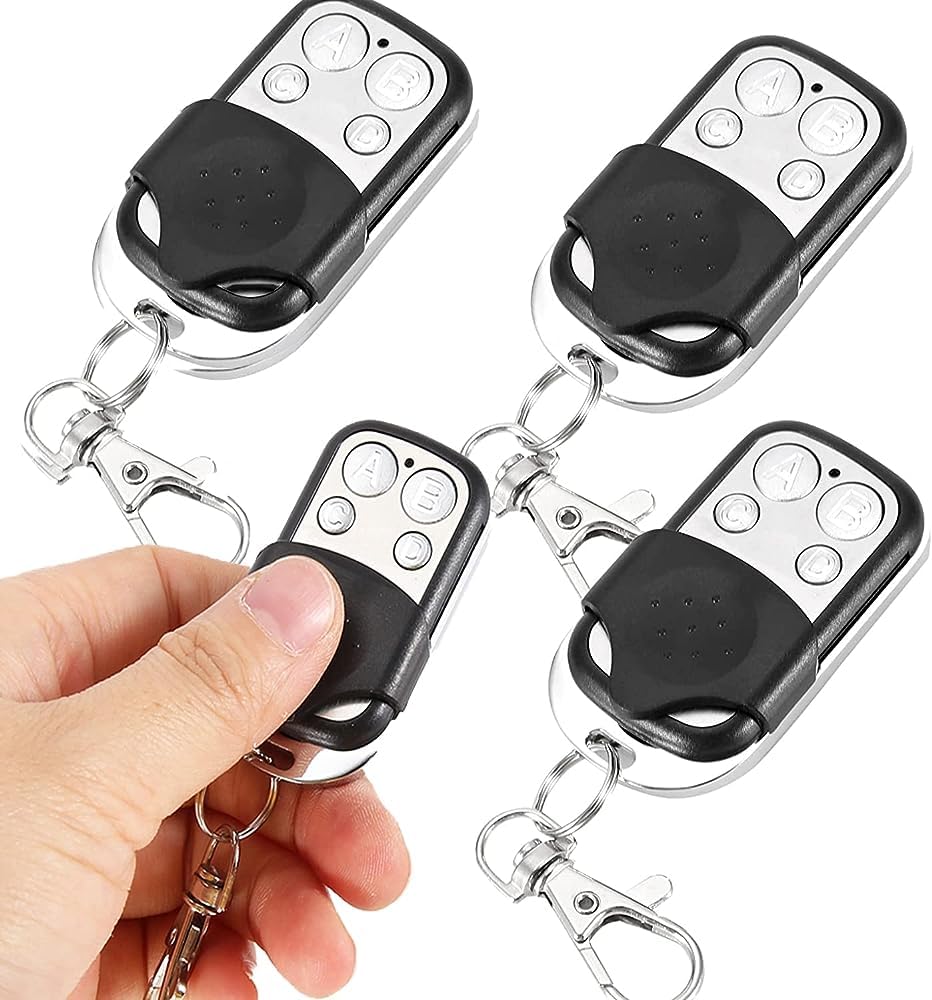

4 x Remote Control Key Fob
NOTE:
We strongly suggest you check the IC CODE of your original remote key. The replacement remote key may not work properly if you copy the code from an unsupported IC.
