Yoiimiya 188PCS Deutsch DT Gray Connector Kit with 16 Solid Contacts in 2,3,4,6,8 and 12 Pin Configurations,Automotive Connectors
Yoiimiya 188PCS Deutsch DT Gray Connector Kit with 16 Solid Contacts in 2,3,4,6,8 and 12 Pin Configurations,Automotive Connectors - Image 2
Yoiimiya 188PCS Deutsch DT Gray Connector Kit with 16 Solid Contacts in 2,3,4,6,8 and 12 Pin Configurations,Automotive Connectors - Image 3
Yoiimiya 188PCS Deutsch DT Gray Connector Kit with 16 Solid Contacts in 2,3,4,6,8 and 12 Pin Configurations,Automotive Connectors - Image 4

Yoiimiya 188PCS Deutsch DT Gray Connector Kit with 16 Solid Contacts in 2,3,4,6,8 and 12 Pin Configurations,Automotive Connectors

$104.99

  • Wedgelocks: Maintains correct contact alignment in connector housings. Can be removed with ET-01 removal tool.
  • Sealable housings: The plug and socket each consist of a housing and secondary wedge. The secondary wedge serves to ensure that the contact is fully seated and in the connector. The plug and secondary wedge are supplied separately.
  • DT Series: Deutsch DT sealed housings are available in 2, 3, 4, 6, 8 and 12 pins and size 16 contacts, each rated at 13 amps continuous. Housings feature an integrated interlock for mating.

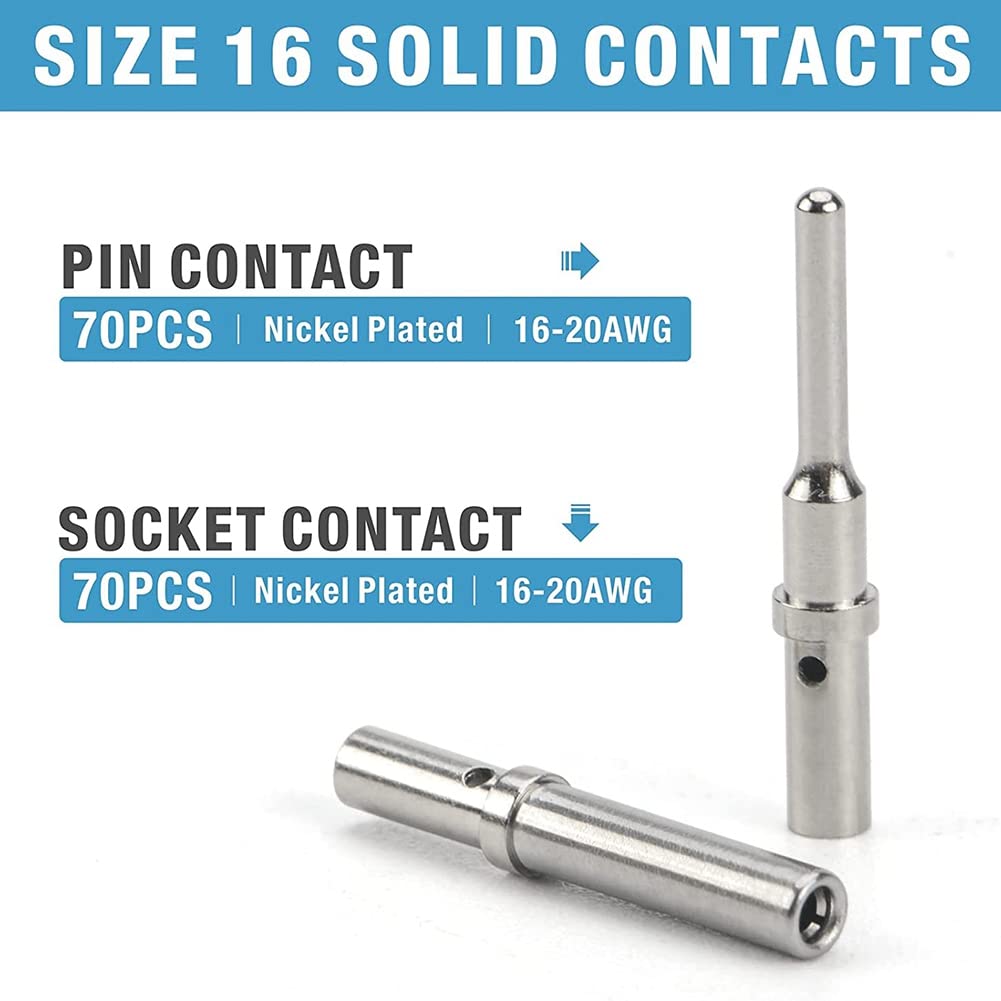

  • Size 16 Solid Contacts: 0462-201-16141 (Socket) & 0460-202-16141 (Pin) – German size 16 plated solid socket for 20-16 AWG, plated copper alloy. Max 13 amps. Crimps with a 4-crimper. No soldering required.
  • Applications: DT connectors offer proven reliability and robustness. Widely used in Bus, Off-Highway, Construction, Agriculture, Mining, Emergency Vehicles, Forestry, Leisure, Motorcycle.

In stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Mating Pin Diameter: 1.59mm. Terminal Transmits:0-24A (Low ) Wire Size (AWG) 20 – 16 Wire Size (mm): .5 – 1.5 Operating Temperature (Max.): 125 Celsius [ 257 Fahrenheit ] Operating Temperature Range: -55 to 125 C. [ -67 – 257 Fahrenheit ] Terminal: 4 Crimp. Color: Material: Plastic. Package Included: 188 x DT Gray Connector Kit Only the above content, others are not included. Note: Due to the light and screen setting difference, the item’s color may be slightly different from the actual product. Measurement deviations of +/- 1-3 cm are possible.

Additional information

Weight 0.46 kg
Brand

Yoiimiya
EAN

4894923096259
SKU: B0BFFBQRV8 Category: Tags: , ,
