Description
Is your drain valve leaking and smells unpleasant?
Then it’s time to replace the drain fitting.
Here you have found the matching complete drain set for 1 1/4 inch systems.

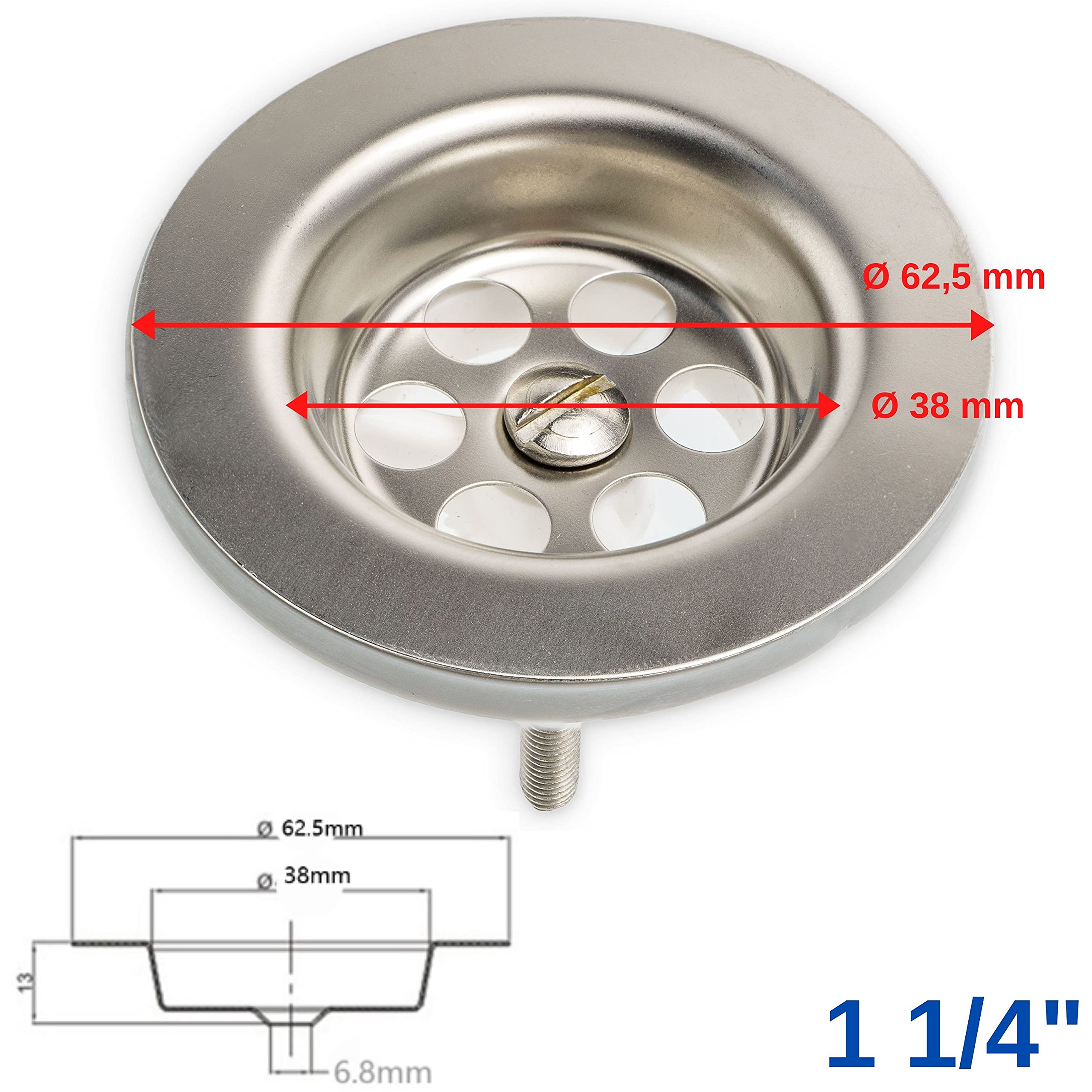

Drain valve for sinks, 1 set, size diameter 62.5 mm – 1 1/4 inch, SS201 stainless steel valve top, M6 x 60 mounting screw, PP base with brass nut, PVC seal and 41 mm plug, plug valve.
Whether for sinks, sinks, baths or shower trays, drain fittings in the sizes 1 1/2 inch and 1 1/4 inch can be used anywhere.
To choose the appropriate drain set size, measure the drain pipe of the siphon as well as the drain diameter on the top of the sink.
For assembly, the old drain valve must first be completely disassembled and pipe connection and sink outlet must be thoroughly cleaned.
Then the stainless steel valve top is inserted into the top of the sink and the mounting screw is guided through the opening in the middle.
Then the PP base and seal are mounted on the sink from below and screwed from above with the mounting screw.
Finally, connect the base to the siphon drain and check whether the drain system is waterproof.
Size differences valve top and connection piece below:
– Size 1 for 1 1/4 inch pipe connectors (base) and diameter 62.5 mm sink valve top cut-out.
– Size 2 for 1 1/2 inch pipe connectors (base) and diameter 70 mm sink valve top cut-out.
Box contents:
– Plug valve set with 1 x diameter 41 mm plug, 1 x 30 cm plug chain, 1 x M6 x 60 screw, 1 x diameter 62.5 mm valve top, 1 x connection piece at the bottom with diameter 1 1/4 inch, 1 x seal
