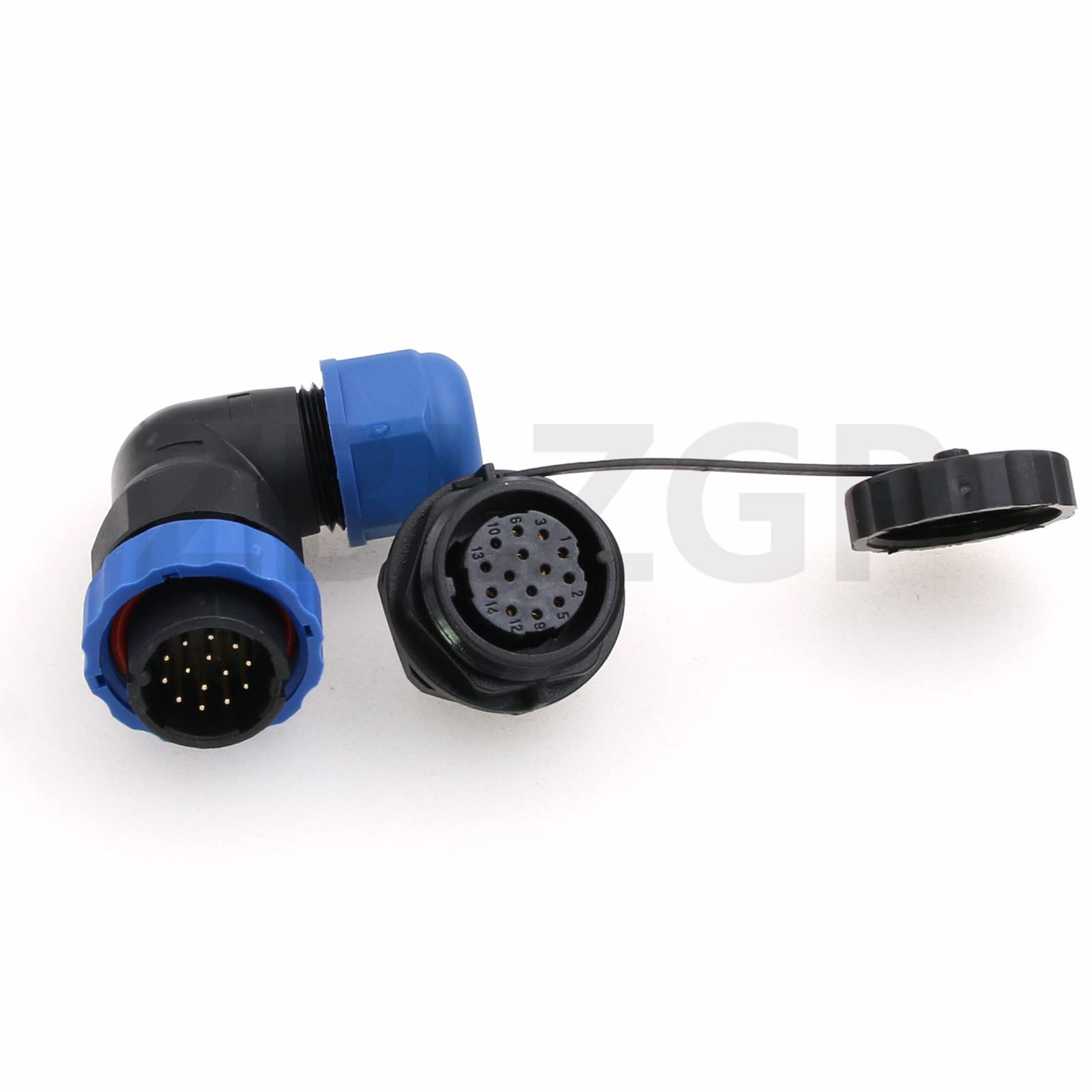

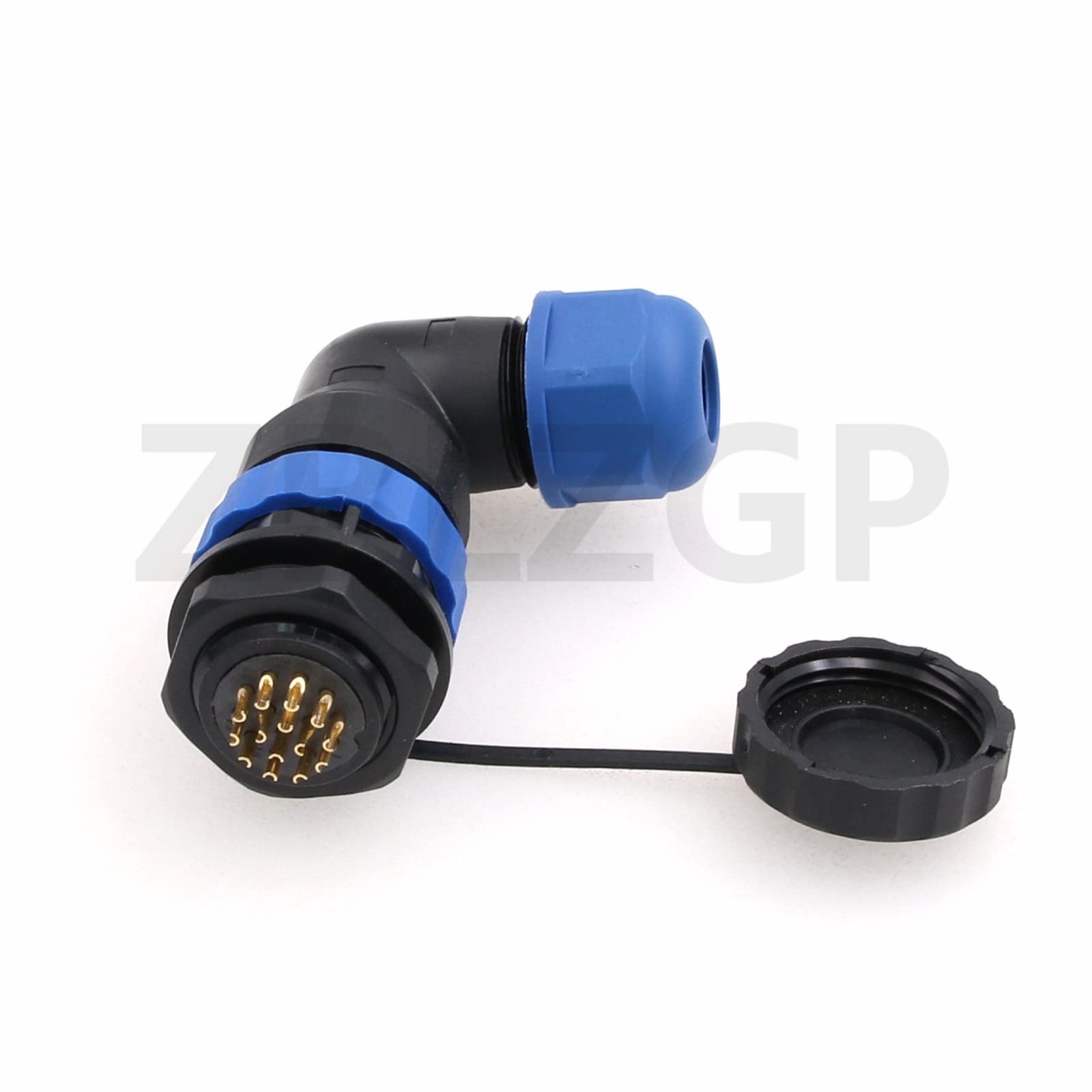

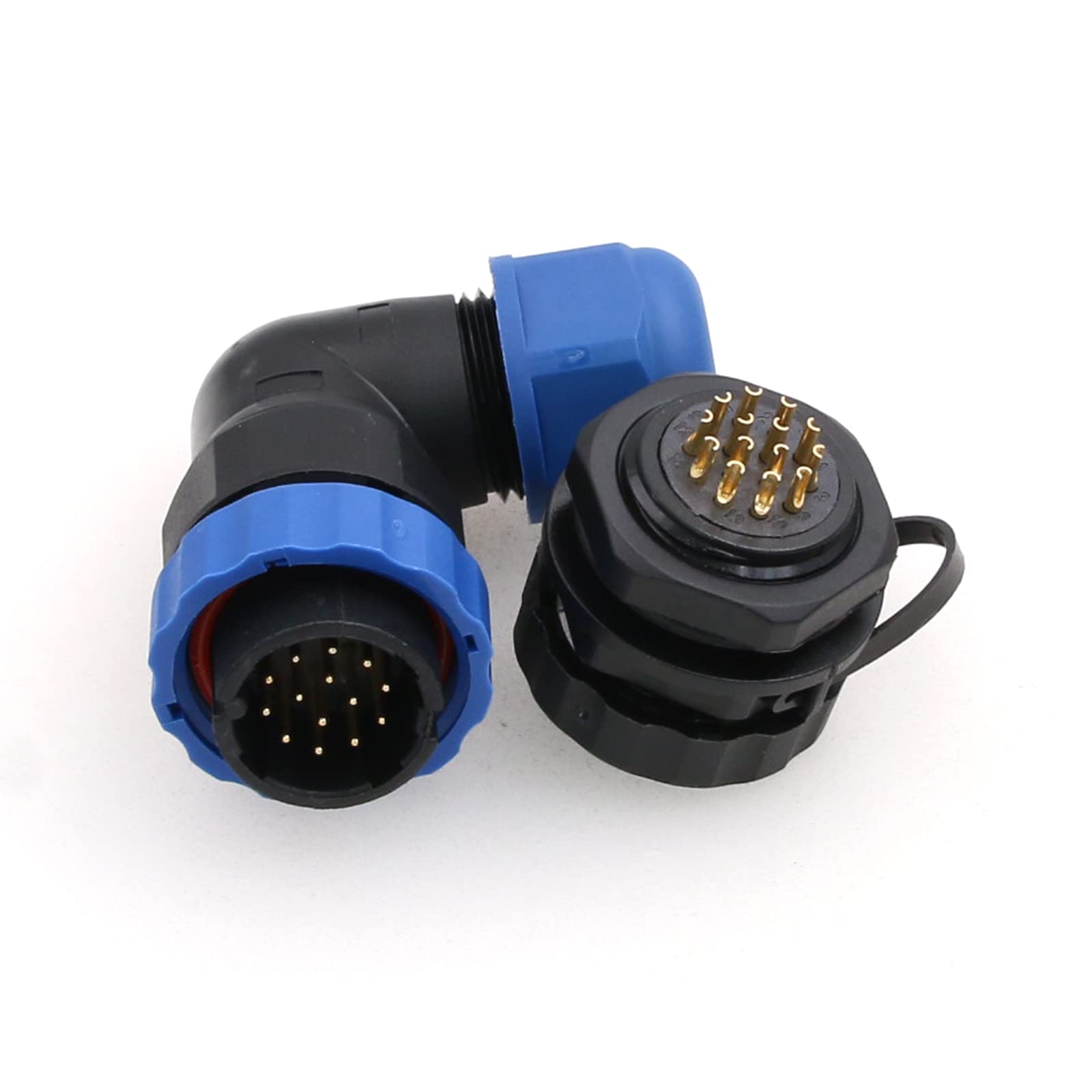

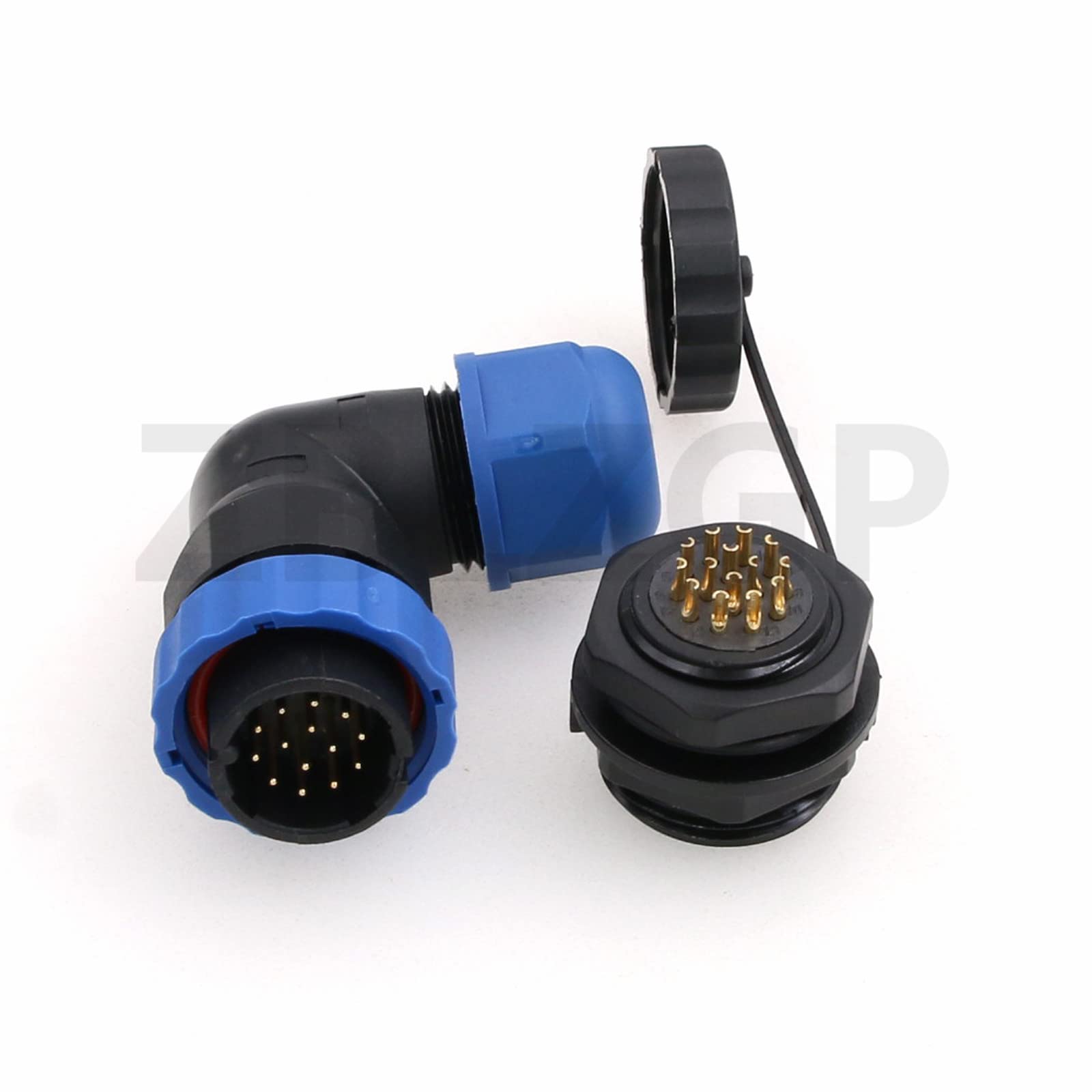

ZBLZGP SD20 14 Pin 90 Degree 5A Connector IP68 Waterproof Male Socket Female Socket Panel Mounting Wire Cable Connector: SD20 IP68 watertight plastic threaded coupling for panel mounting quick disconnect connection for welding. Housing material: PA66 Thermoplastic, PA6, insulation: PPS, high temperature resistance 260 °C. Contact parts material: gold plated copper Temperature range: -25℃~85℃.
Key features
- SD20 IP68 watertight plastic threaded coupling for panel mounting quick disconnect connection for welding
- Housing material: PA66 Thermoplastic, PA6, insulation: PPS, high temperature resistance 260 °C. Contact parts material: gold plated copper Temperature range: -25℃~85℃
- Pin connector Contact diameter: 1*14mm; Rated current(A): 5A; Rated voltage (AC.V): 250V; Test voltage (AC.V)1min: 1500V; Contact resistance(MΩ): 5; Insulation resistance(MΩ): 2000
- Size: 14 Pin 5A
Product specifics
- Brand: ZBLZGP
- Category: Terminals & Kits
- Size: 14 Pin 5A
