Description

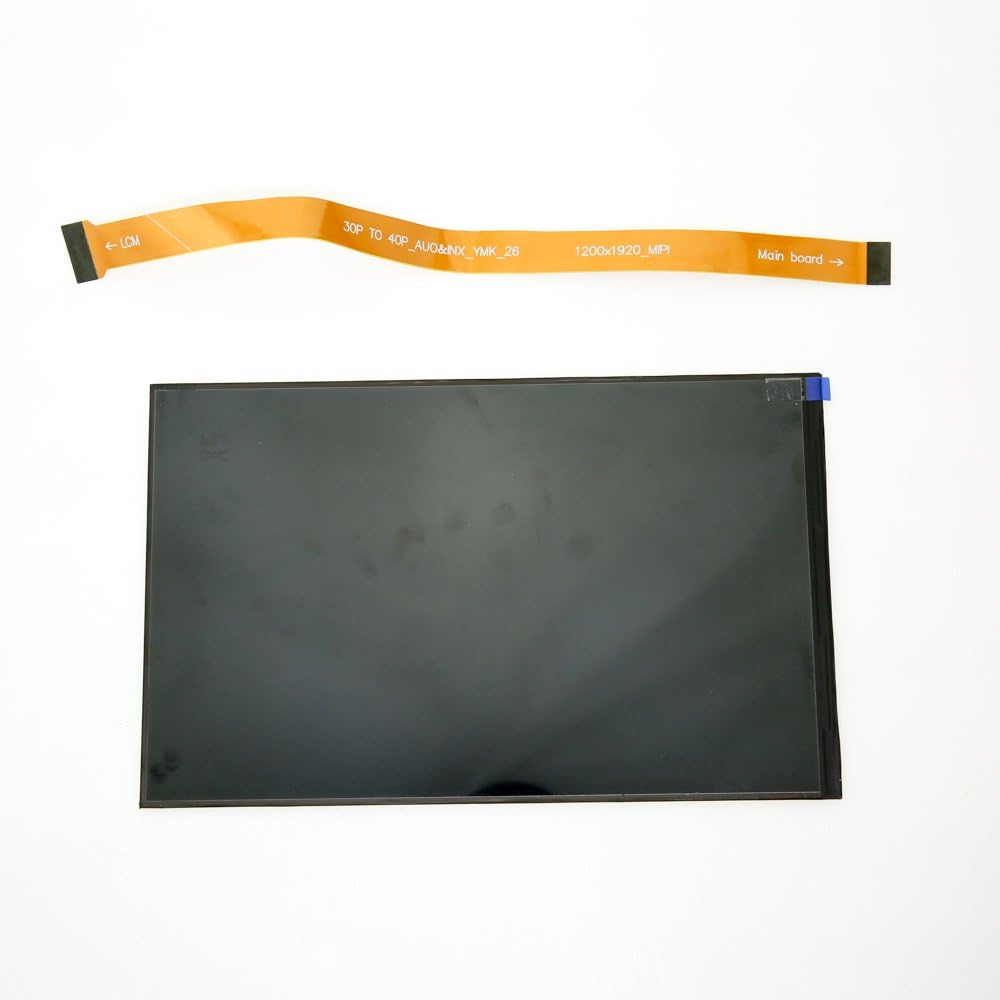

INTRODUCTION This 10.1 inch high-resolution 1200*1920 IPS display is especially designed as a monitor for LattePanda (which could be used as windows 10 development board). It gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects，even adding a face for your robot, you can expand your imagination, make more fun. Up to 224 PPI, this 1200×1920 display will creating an impression of sharp print-like text. And only one connection to the LattePanda is required, it connects via an FPC cable which handles power and signal conversion. So, there is no need for the adapter board and it releases HDMI port to build dual-screen. Note: 1ePanda and power supply are NOT included! 2se use a 5V@3A power supply to driver the LattePanda with this high-resolution display. 3 is a portrait display, you can set in system to rotate the page.4 Compatible with LattePanda Alpha and Delta editionIFICATION Screen Size: 10.1 inch Active area Dimensions: 135 * 217mm/5.31 * 8.54 inches (10:16) Display Dimensions: 143 * 230 * 2.2mm/5.6 * 9.05 * 0.1 inches Panel Type: TFT-LCD Resolution (RGB): 1200×1920, WUXGA Brightness: 300 cd/m^2 Contrast Ratio: 800:1 (Typ.) Rated power: 3W Signal input: MIPI-DSI Weight: 190gSHIPPING LIST 10.1″ 1200 x 1920 IPS Display for LattePandax1 FPC cablex1
