Description

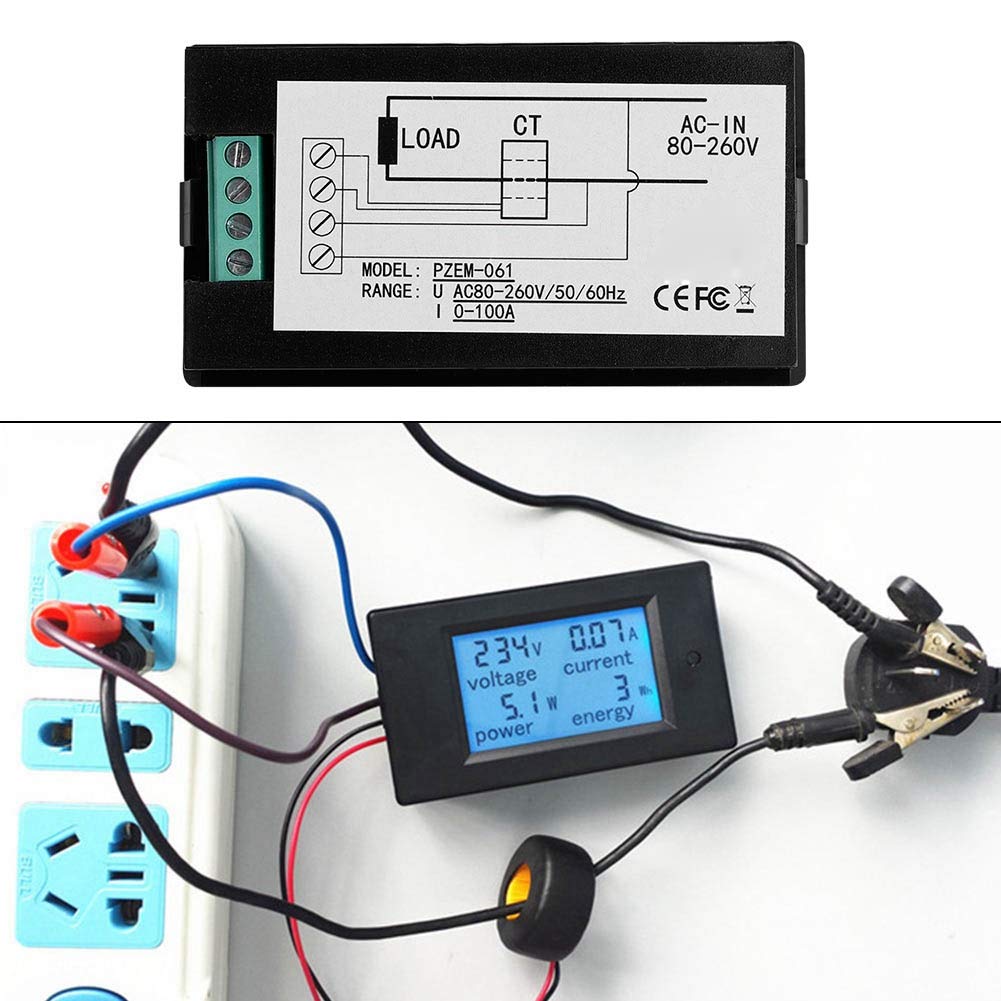

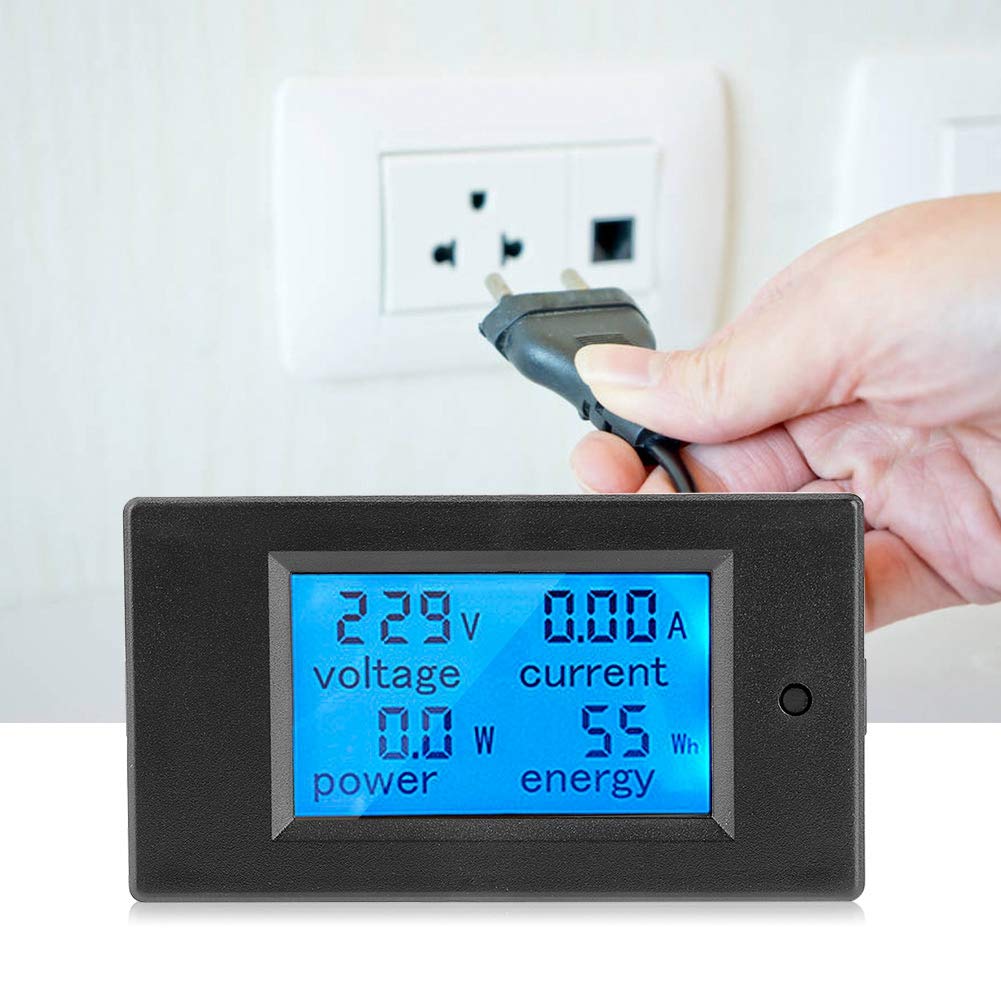

Specification:The working voltage: 80-260VACTest voltage: 80-260VACMax power: 100A/22000WWorking frequency: 45-65HzThe measurement precision: Class 1About Function:- Measurement and monitor the electrical parameters(voltage, current, kwh, watt)- Overload alarm function(more than watt alarm threshold, backlight flashing)- Power alarm threshold preset function(can set up their own power alarm threshold)- Power(kwh)button reset function- When power off ,store the data, when on ,continue the date- Large screen LCD liquid crystal screen full display function(voltage, current ,kwh,watt)- Backlight functionAbout Display:Display interface. By the large screen LCD display LCD monitor voltage and current,kwh,watt,electric parameters1. Watt: the measurement range of 0-22kWless than 1kW: 0.0-999.9Wless than 10kW: 1000-9999Wless than 22kW: 10.0-22.0kW2. kwh: the measurement range of 0-9999kwhless than 10kWh:0-9999Whmore than 10kWh:10-9999kwh3. The test voltage range of 80-260VDisplay format 80-220V4. Current test range:0-100ADisplay format: 0.00-99.99ANotices:1. Suitable for indoor ,not outdoor2. Should not exceed te rated power3. Wiring can not be wrong4. The tape’ color of the CT will be random Package Includes:1 x AC 100A Power Meters Monitor Volt Amp kWh Watt Digital Cambo Meter with case1 x CT
