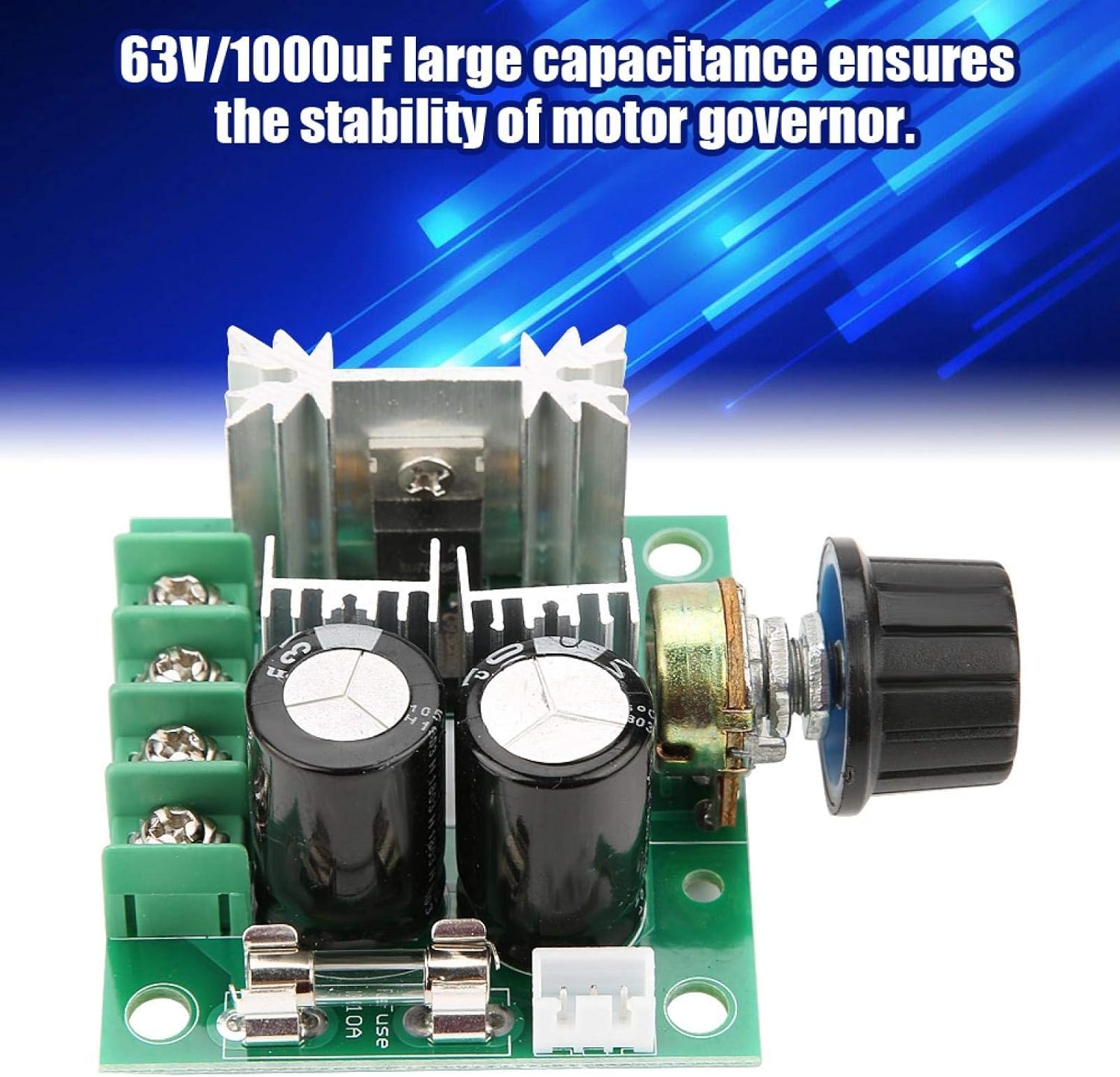

12V-40V 10A PWM DC Motor Governor, Stepless Variable Speeds Switch Module, PWM Motor Speeds Controller,for Protect The Speeds Controller
12V-40V 10A PWM DC Motor Governor, Stepless Variable Speeds Switch Module, PWM Motor Speeds Controller,for Protect The Speeds Controller - Image 2
12V-40V 10A PWM DC Motor Governor, Stepless Variable Speeds Switch Module, PWM Motor Speeds Controller,for Protect The Speeds Controller - Image 3
12V-40V 10A PWM DC Motor Governor, Stepless Variable Speeds Switch Module, PWM Motor Speeds Controller,for Protect The Speeds Controller - Image 4
12V-40V 10A PWM DC Motor Governor, Stepless Variable Speeds Switch Module, PWM Motor Speeds Controller,for Protect The Speeds Controller - Image 5

12V-40V 10A PWM DC Motor Governor, Stepless Variable Speeds Switch Module, PWM Motor Speeds Controller,for Protect The Speeds Controller

$17.99

  • Make sure this fits by entering your model number.
  • 【Stable 】This is a simple and easy-to-use DC motor speed controller of stable performance.
  • 【Speed Controller】Speed controller is made with high quality circuit board which ensures a longer service life.

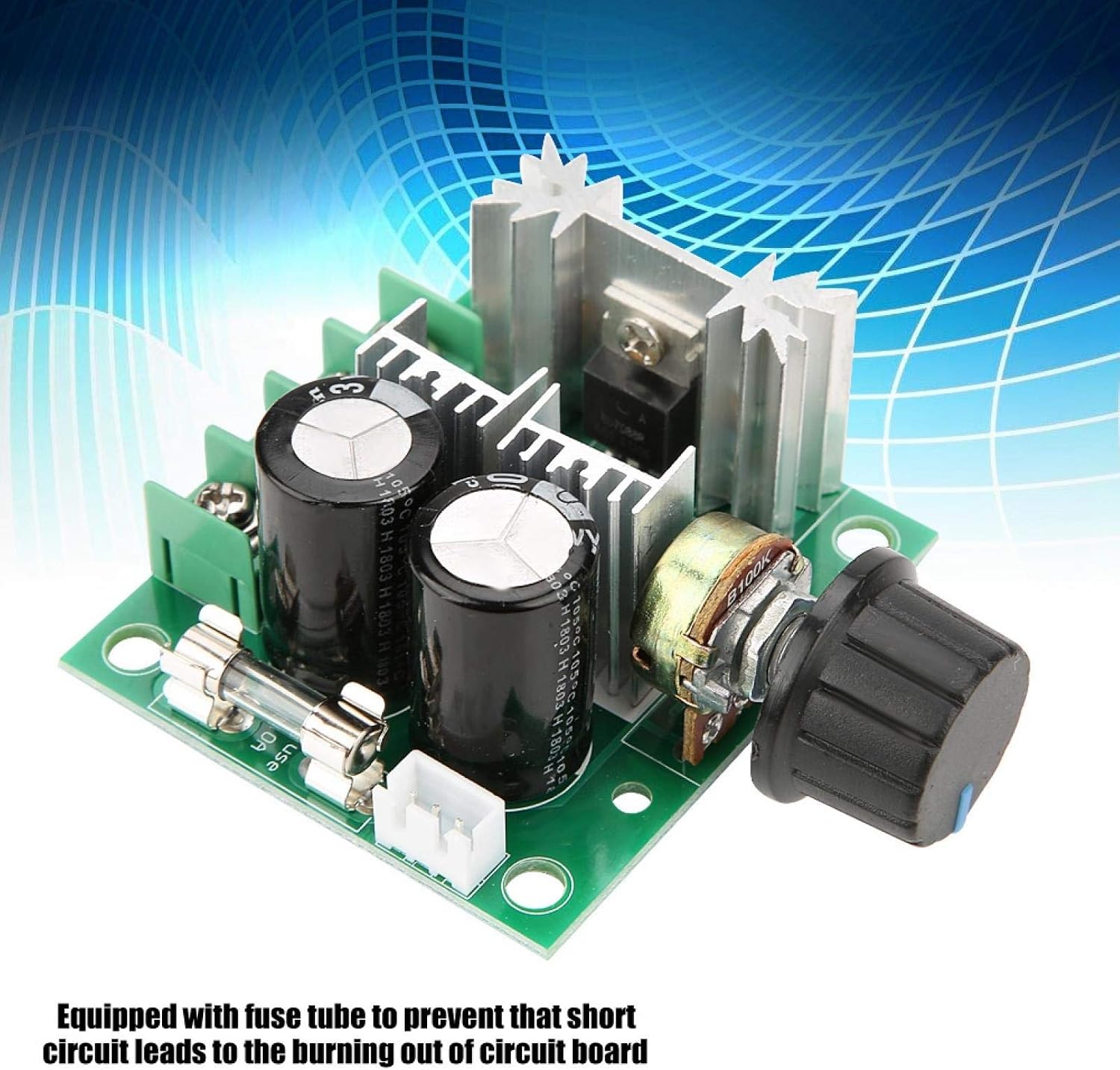

  • 【Fuse Tube】Equipped with fuse tube to protect the speed controller from burning out that short circuit causes.
  • 【Function】With reverse connection protection function.
  • 【Terminals】Designed with convenient screw terminals for quick wiring.

In stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Features:
1. This is a simple and easy-to-use DC motor speed controller of stable performance.
2. Speed controller is made with high quality circuit board which ensures a longer service life.
3. Equipped with fuse tube to protect the speed controller from burning out that short circuit causes.
4. With reverse connection protection function.
5. Designed with convenient screw terminals for quick wiring.

Specification:
Input Voltage: DC 12V-40V
Control Power: 0.01-400W
Rated Current: 8A
Maximum Current: 10A
Static Current: 0.02A(standby status)
Frequency: 13kHz
Speed Adjustment Range: 10%-100%
Hole Diameter: 3.2mm
Operating Temperature: -20℃~125℃
Dimensions: 75*60*28mm / 2.95*2.36*1.10in
Package Weight: Approx. 70g/2.4oz

PackageList:
1 * DC Motor Governor

Additional information

Weight 0.06 kg
brand

SALUTUYA
dimensions

8 x 7 x 3 cm; 70 Grams
SKU: B08SCM77K9 Category: Tags: , ,
