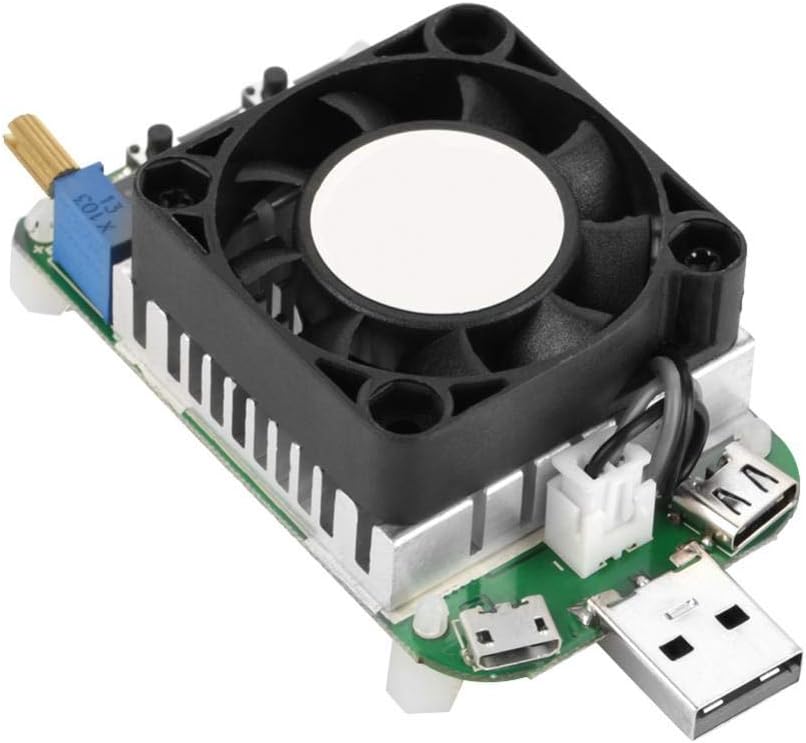

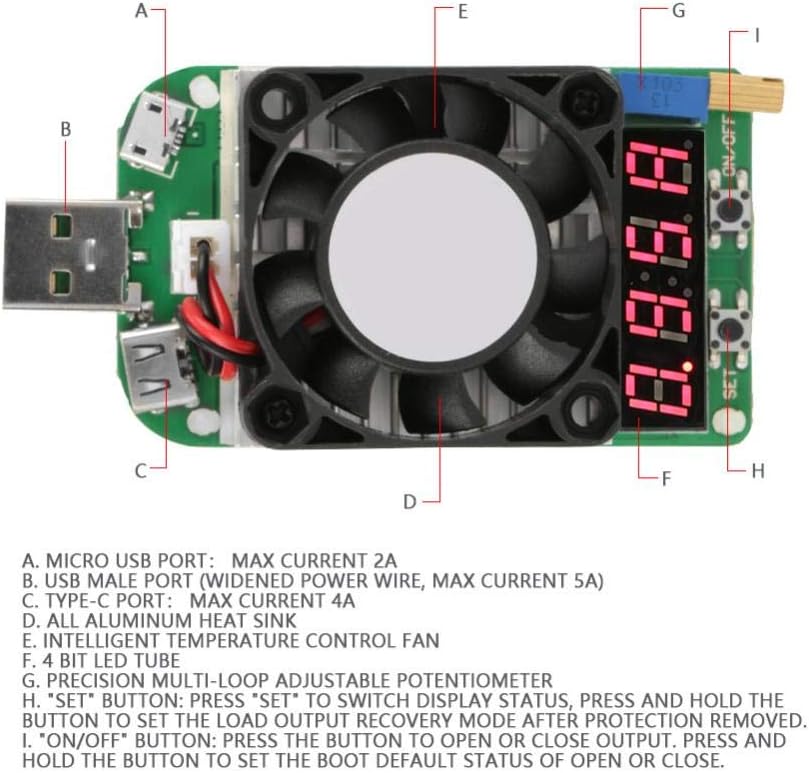

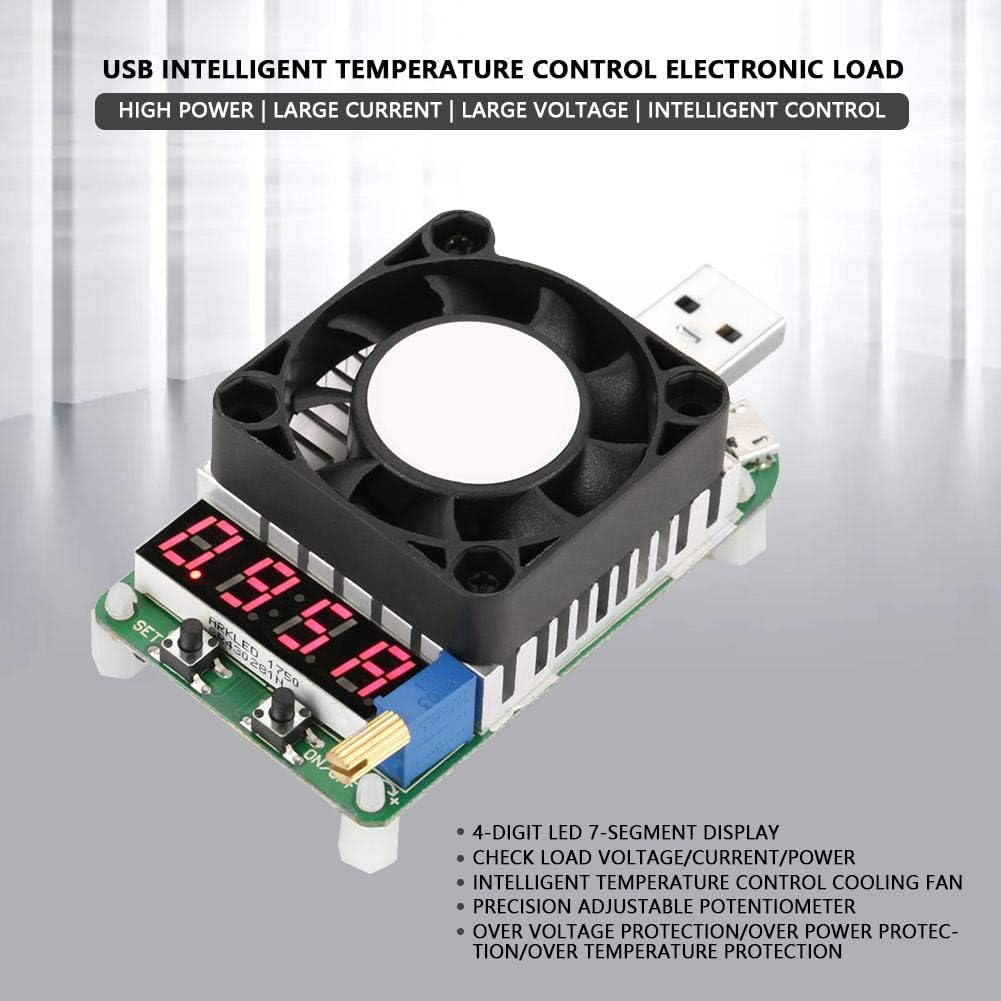

Akozon USB Power Meter Tester, USB Load, Discharge Tester, LD25 USB Electronic Load Digital Display Battery Test Adjustable Resistor Voltage Current Meter

$58.99

  • 【100% Brand New and High Quality】 Akozon digital USB Power Meter testers supports over voltage protection, over power protection and over temperature protection. On the basis of all-aluminum radiator, the size of the fan is increased. A four-side ventilation design is adopted, with faster rotation speed and better heat dissipation effect. Stable and reliable, very practical, easy to operate, not easy to age and long service life
  • 【Full Function】This is a high-performance intelligent electronic load that can perform constant discharging testo USB and type-c input ports are added to help measure the quality of micro USB and type-c charging lines. Intelligent temperature control fan + all aluminum fan for better heat dissipation.
  • 【Wide Range of Application】Assist to measure Micro USB cable, Type-C cable, output current capacity of charger good or not. Added over power/over voltage/high temperature protection, when more than the rated voltage/current/temperature range, the device will automatically stop working, digital tube display relevant code, to ensure that the equipment will not be burned.
  • 【Adjustable Current】This Discharge Tester is fine adjustment to 0.05A, will not damage the power due to hand error instant adjustment of large current. Oil bearing intelligent temperature control fan, speed 5800±10%RPM.
  • 【Kindly Remind】We Have a Strong After-sales Service Team: As long as you have any questions about the product, we will resolve your issue immediately if received your email, your satisfactory purchase experience is our greatest hope! Looking forward to your consultation

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Specification: Product Model: LD25  Rated operational voltage: DC4-25.0V  Max discharging power: 25W  Rated operational current: 0.25-4.00A (when fan don’t work, the minimum constant current is 0.05A)  Fan Speed: 5800±10%RPM Constant current resolution ± (1%+3 digits) Working temperature: -10℃~40℃  Adjustable potentiometer Precision multi-loop adjustable potentiometer Display mode 4 bit LED tube Expansion port Micro USB port, Type-C port Weight:Approx. 58g/2oz Size:80*40mm/3.1*1.6in Note: This product has no reverse connection protection. The input polarity cannot be reversed, otherwise the product is permanently damaged and cannot be repairedage List: 1 * Electronic Load

Additional information

Weight 0.0442 kg
brand

Akozon

dimensions

8.4 x 4.1 x 2.8 cm; 20 Grams
