Description

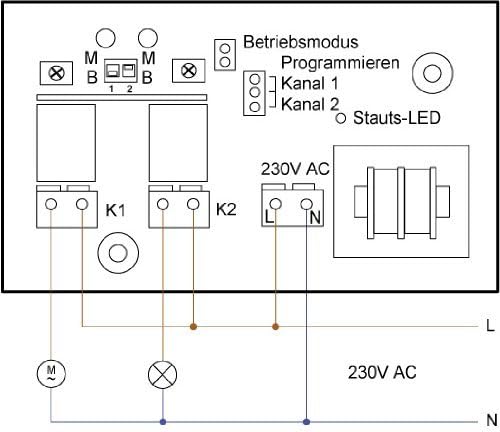

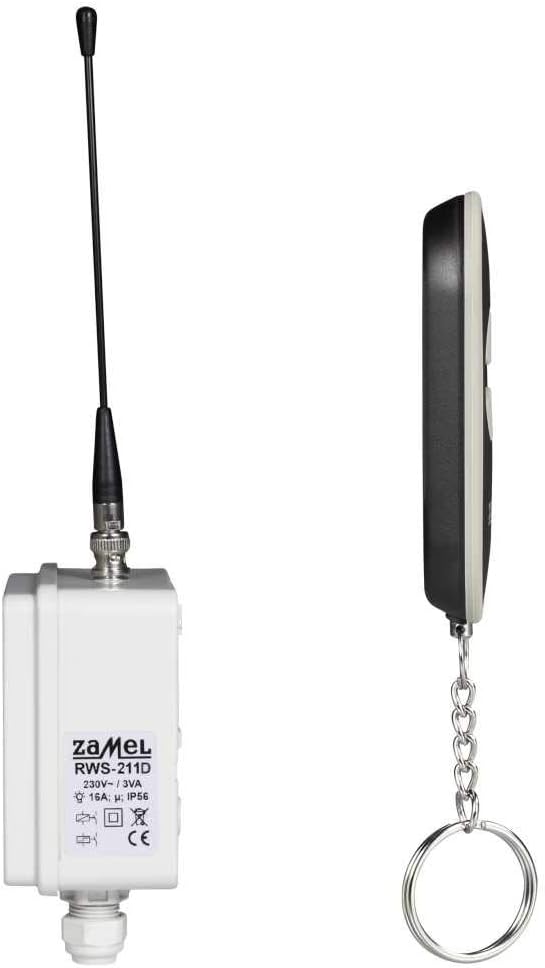

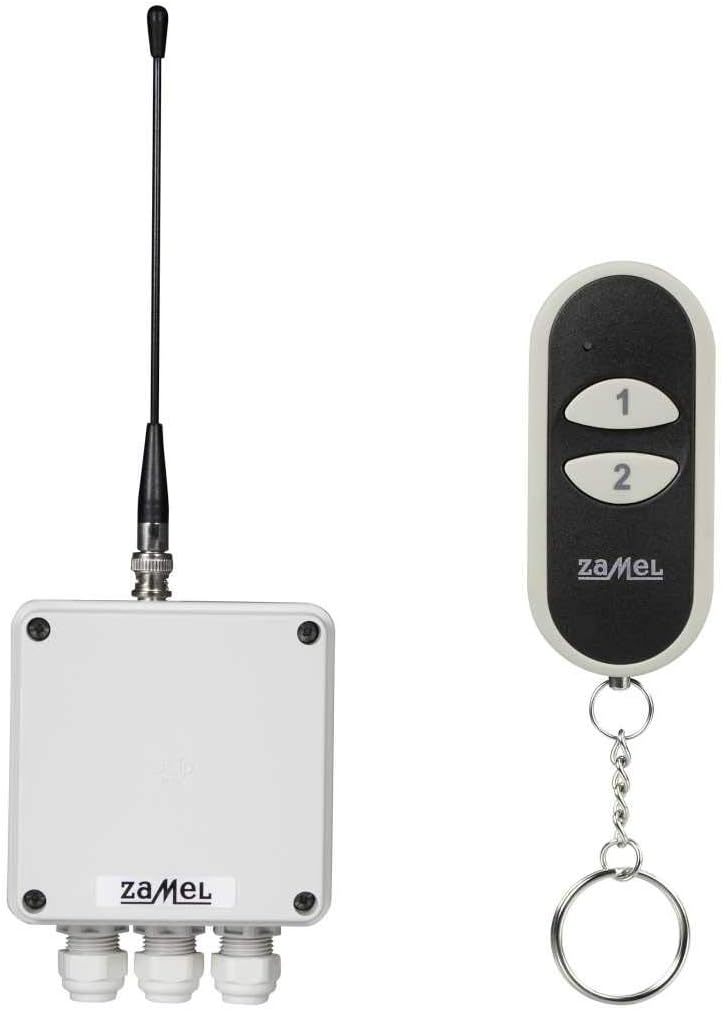

Wireless RJ45 back switch for switching from 2 consumers, can be mounted in outdoor IP56 (protected against water jets), range up to 300 m in open spaces. Bi-directional, coded and failsafe transfer Keloq. 1 x P-258/2 hand-held remote included. Voltage: 230 V AC can be used as a permanent supply voltage RWS Remote RJ45 back switch has 2x Potenzialfreiee switch contact (as both 1 N/O Contact) and is supplied with a voltage of 230 V AC. Each Switching contact can independently be on or off. It’s a jungle out there, but volt free contacts and of the associated galvanic separation for supply voltage, you can take any voltages up to max. 250 V AC (i.e. can also be 24 V dc such as LED light) on or off. The robust and impact resistant housing IP56 is the radio switch Water-proof and can be used for mounting when used outdoors remote switch can be adjusted, whether the switching contact Monostable (button) or Bistabil (switch). In Monostabilen mode can be set more than a pot tone potentiometer switches off time adjustable between 1 sec to 2min. After this time is turned off automatically. In Bistable mode is held in place with the push of a button on the transmitter of the switching contact closed. The contact remains on until the other button turns off to. The remote switch is suitable for use over long periods and can be used over hours or days be turned ontional Information: Dimensions (W x H x D) 127X120X60 MM, Weight 320g, temperature range: -15 °C to + 55 °C, protection type IP56, protection class II Additional remote control: there will be a total of 113 piece hand-held transmitter of the types: P – 258/2, P 258/4 and p to 207/2 and “P 259/8 on a radio receiver Pend in the EU, Meets all valid standards and laws.
