Description
ersion don’t have WIFI module

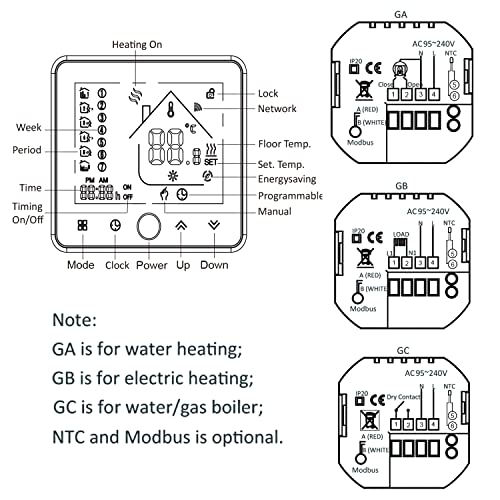

ABOUT YOUR THERMOSTATS
TECHNICAL DATA
Power Supply: 95 ~240 VAC, 50 ~60Hz
Fan Relay Amps Resistance: 5A: Inductive: 3A
Valve Relay Amps Resistance: 3A: Inductive: 1A
Current Load: 3A (water heating/water boiler/gas boiler) 16A (electric heating)
Sensor: NTC3950, 10K
Accuracy: ±0.5 ℃
Set Temp. Range: 5-35 ℃
Dispaly Temp. Range: 5 ~99 ℃
Ambient Temp.:0~45 ℃
Ambient Humidity: 5~95 % RH (Non Condensing)
Storage Temp.:-5 ~45 ℃
Power Consumption: <1.5W
Timing Error: <1%
Shell Material: PC +ABS ( Fireproof)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5 mm2 or 1 x2.5 mm2
Protection Class: IP20
Buttons: Capactive Touch Buttons
More detailed parameters can be found at: http://www.becaenergy.com/
