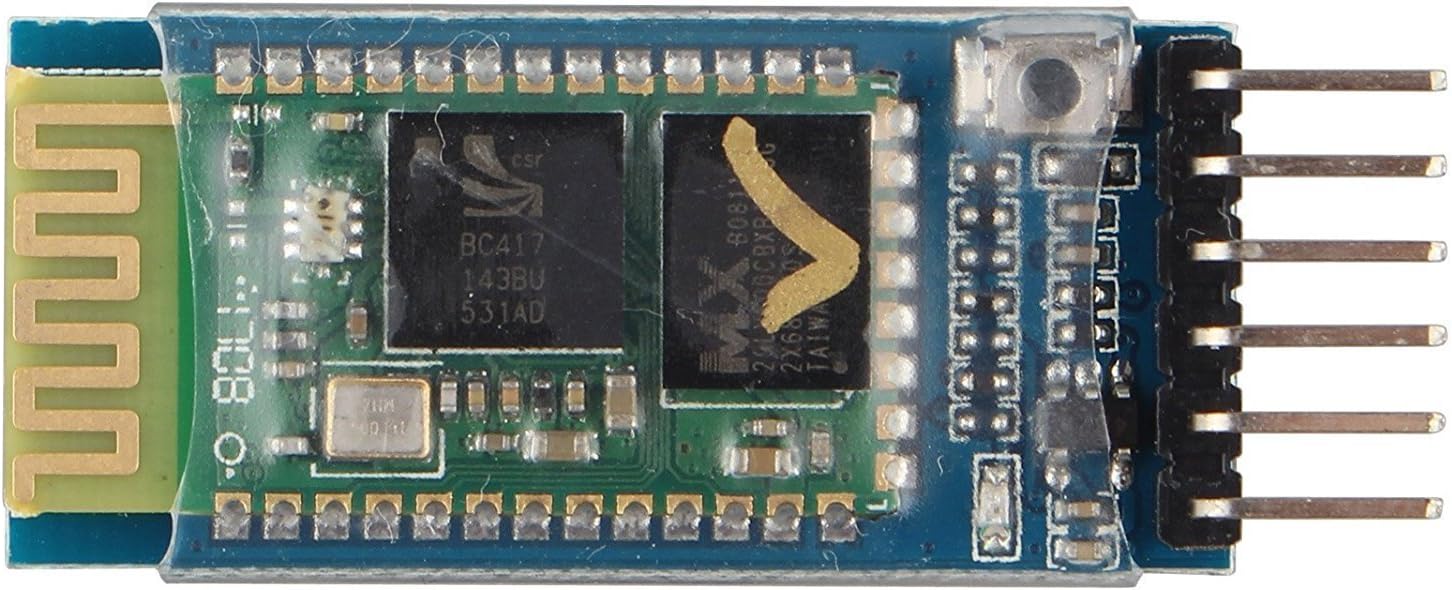

DollaTek 3Pcs HC-05 Wireless Bluetooth Transceiver Modul Slave and Master RS232 with 6 set cable for Arduino


  • Make sure this fits by entering your model number.
  • Bluetooth module HC-05 Master and slave Two in one module
  • Use the CSR mainstream bluetooth chip, bluetooth V2.0 protocol standards
  • Module working voltage 3.3 V
  • Coupled Mode: Two modules will establish communication automatically when powered. PC hosted mode: Pair the module with bluetooth dongle directly as virtual serial.
  • Note: This is not original Arduino product. it only a substitute accessories from DollaTek
  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout


product Specifications: 1. PCB Dimensions: 37.3mm (length) * 15.5mm (W) 2. Weight: 3.5g 3. Input voltage: 3.6V – 6V, 7V prohibit over 4. Power anti-reverse, reverse module does not work 5. leads to 6 pin: EN / VCC / GND / RXD / TXD / STATE (Bluetooth status leads to the foot, is not connected to the output low, output high after the connection) 6. En status indicator, LED flash means no Bluetooth connection; LED slow flash indicates into the AT command mode 7. On-board 3.3V regulator chip, the input voltage DC 3.6V-6V; when unpaired, current is about 30mA (because LED lights flashing, the current state of change); After the pairing is successful, the current is about 10mA 8. Level interface 3.3V, you can directly connect a variety of microcontroller (Arduino / 51 / AVR / PIC / ARM / MSP430, etc.), 5V microcontroller can also be directly connected. Directly connected to the microcontroller serial port, you can not go through MAX232 chip! 9. The open area effective transmission distance of 10 meters, over 10 meters are possible, but do not guarantee the quality of the connection 10. After the pairing is successful, can be used as a full-duplex serial interfaces. Do not need to know any of the Bluetooth protocol, but only supports 8 data bits, 1 stop bit, no parity communication format. This is the most common communication format, not support other format! 11. Press the button to give the Bluetooth module is powered up can enter AT mode, set parameters and query information 12. You can switch between master and slave mode via AT commands 13. The module default baud rate is 9600, the default passkey is 1234, the default name for the HC-05 Note:* Arduino-compatible; Note: This is not original Arduino product. it is only a substitute accessories from DollaTek package include:3x DollaTek HC-05 Bluetooth module 3x dupont cable

Additional information

Weight 0.03 kg




12.8 x 8.8 x 2.6 cm; 30 Grams
