Description
Details

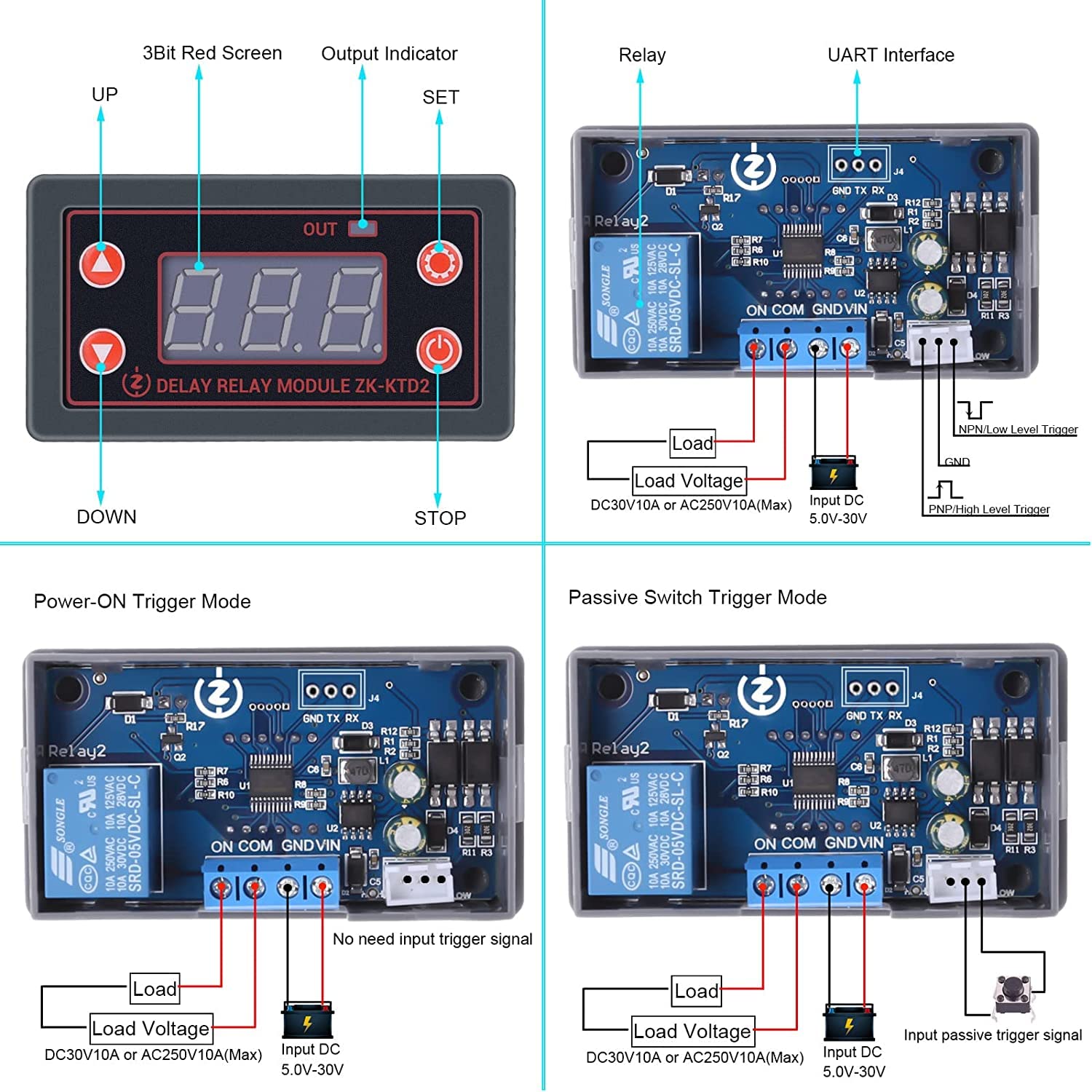

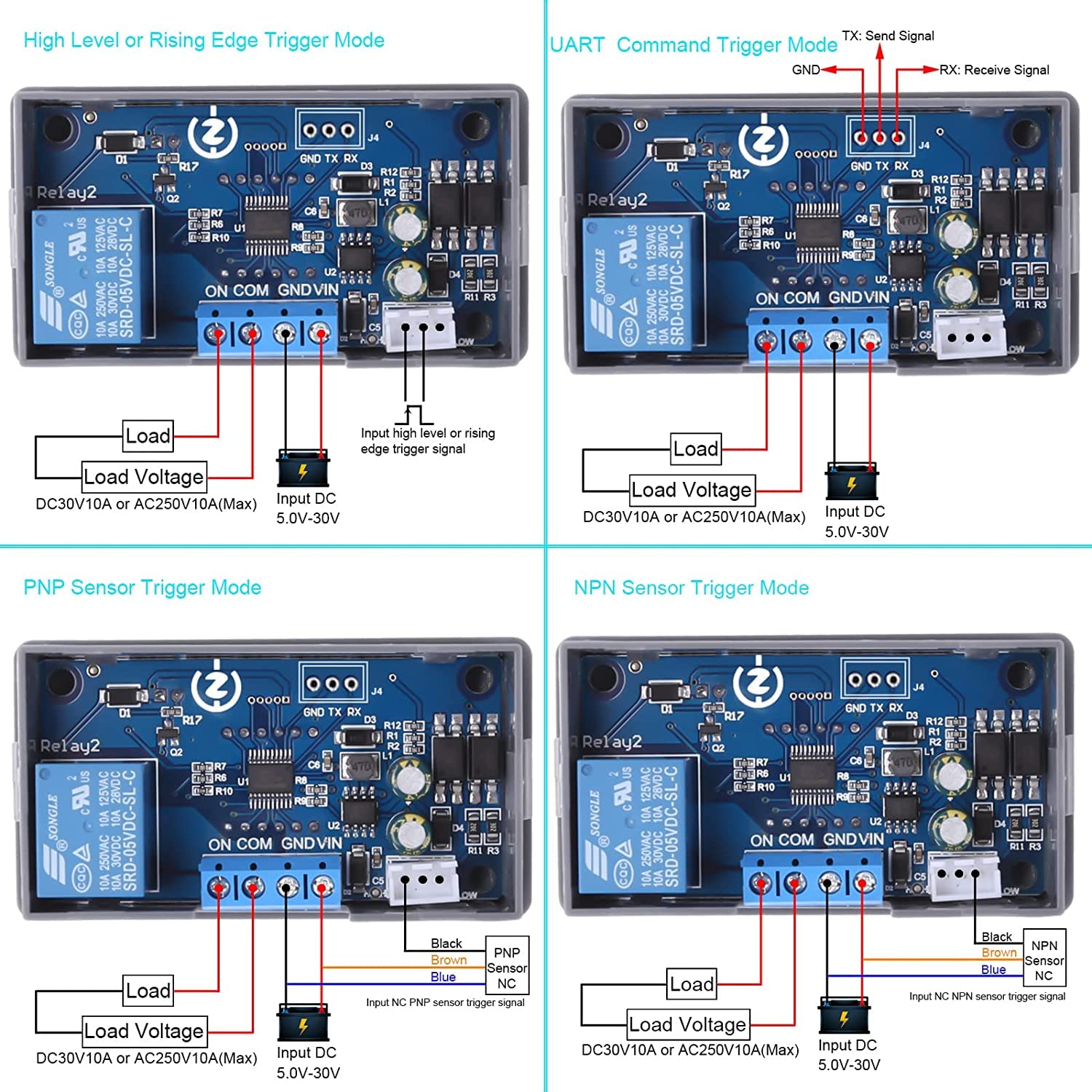

DONGKER Delay Module DC 5V-30V Timer Relay with Digital LED Display DC 12V 10A Delay Relay 0.1s-999mins Timer Module: Wide time range: minimum 0.1 seconds, maximum 999 minutes, infinitely adjustable. It can set OP, CL, LOP, CLL, CLH parameters that are independent of each other and stored separately. Not off function: built-in emergency off function with one button, with reverse polarity protection and optocoupler insulation. All parameters are automatically saved after power failure.
Key features
- Wide time range: minimum 0.1 seconds, maximum 999 minutes, infinitely adjustable. It can set OP, CL, LOP, CLL, CLH parameters that are independent of each other and stored separately
- Not off function: built-in emergency off function with one button, with reverse polarity protection and optocoupler insulation. All parameters are automatically saved after power failure
- Sleep mode: If no operation is done for 3 minutes after switching on, the display will automatically turn off. Press any button to wake up
- Colour: black red
- Size: 0,1s-999mins (Unabhängig eingestellt werden)
Product specifics
- Brand: DONGKER
- Category: Timers
- Size: 0,1s-999mins (Unabhängig eingestellt werden)
- Colour: black red
- Model: GY20599ABHIC
- Part number: 8701ABHIC
