Description
Details

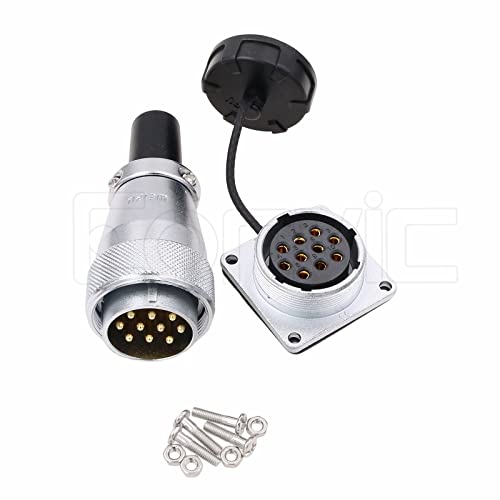

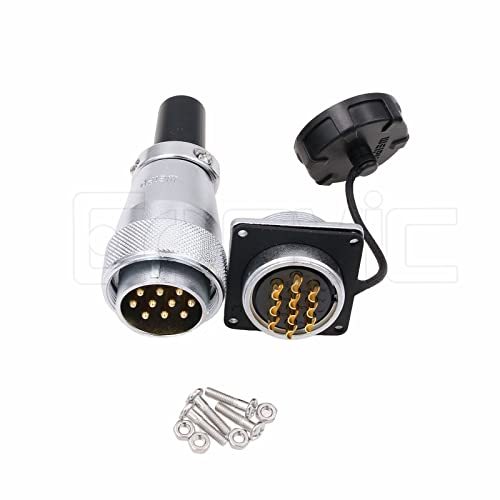

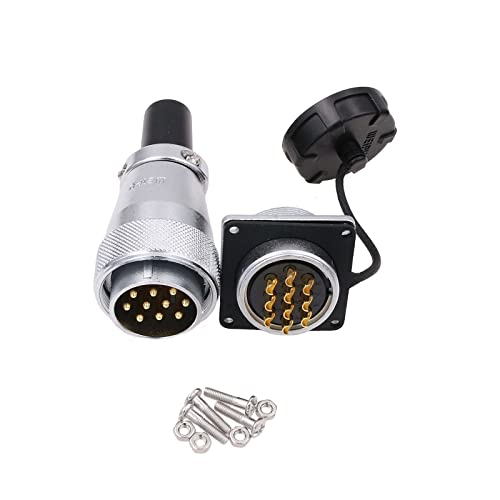

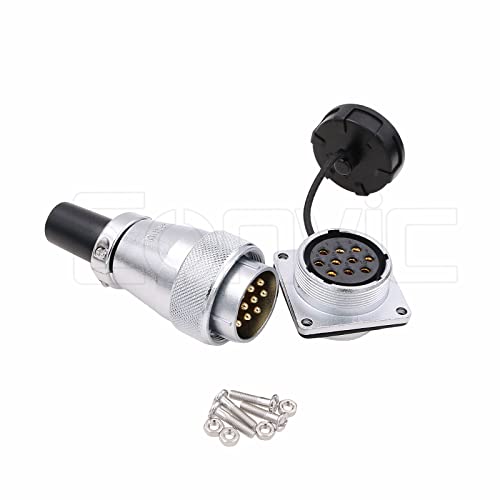

Eonvic WEIPU WS28 Connector Waterproof IP67 Metal Male Plug Female Square Socket Panel Mount Aviation Cable Connector (10Pin): Threaded Coupling,Shell material: Zinc alloy with chrome plating. Contact material: Brass with gold plating, Insert material: PPS, max temperature 260 ℃. Temperature range: -40°C~+ 85°C.
Key features
- Threaded Coupling,Shell material: Zinc alloy with chrome plating
- Contact material: Brass with gold plating, Insert material: PPS, max temperature 260 ℃. Temperature range: -40°C~+ 85°C
- WS28 10pin connector. Rated Current:25A Contact Diameter:Φ2.5mm Rated Voltage:500V Test voltage: 1500V Contact resistance:1mΩ Insulation resistance:2000MΩ Wire Size:≤4mm²/ 11AWG
- Colour: 10 Pins
- Size: 10Pin
Product specifics
- Brand: EONVIC
- Category: Connectors
- Size: 10Pin
- Colour: 10 Pins
- Model: 853eb707-fe13-4ebc-9d49-e4a45a15b7ce
