Description
Features:
This instrument is easy to carry and store, allowing it to be used conveniently in a variety of environments. Its portability makes it suitable for professionals on the go or hobbyists who require a compact and efficient instrument.It can serve as a complete replacement for any inductance and current meter available in the market. It offers superior measurement performance and accuracy, making it versatile and reliable for a variety of applications.
Specifications:
Measurement Accuracy: 1%
Capacitance Measurement Range: 0.01 pF – 10 uF
Minimum Resolution: 0.01 pF
Inductance Range: 0.001 uH – 100 mH
Minimum Resolution: 0.001 uH
Wide Inductance Measurement Range: 0.001 mH – 100 H
Minimum Resolution: 0.001 mH
Wide Capacitance Measurement Range: 1 uF – 100 mF
Minimum Resolution: 0.01 uF
Test Frequency: Capacitors, file inductors close to 500 kHz, large inductors around 500 Hz
Can display the current value of the test frequency
Significant Digit Display: 4
Screen: LCD 16×2
Power Supply: Mini USB port (or 5V power supply)
SMD soldering components, stable and reliable
Color: Green
Material: Metal + Plastic
Dimensions: 8 x 5 x 3cm
Package Contents:

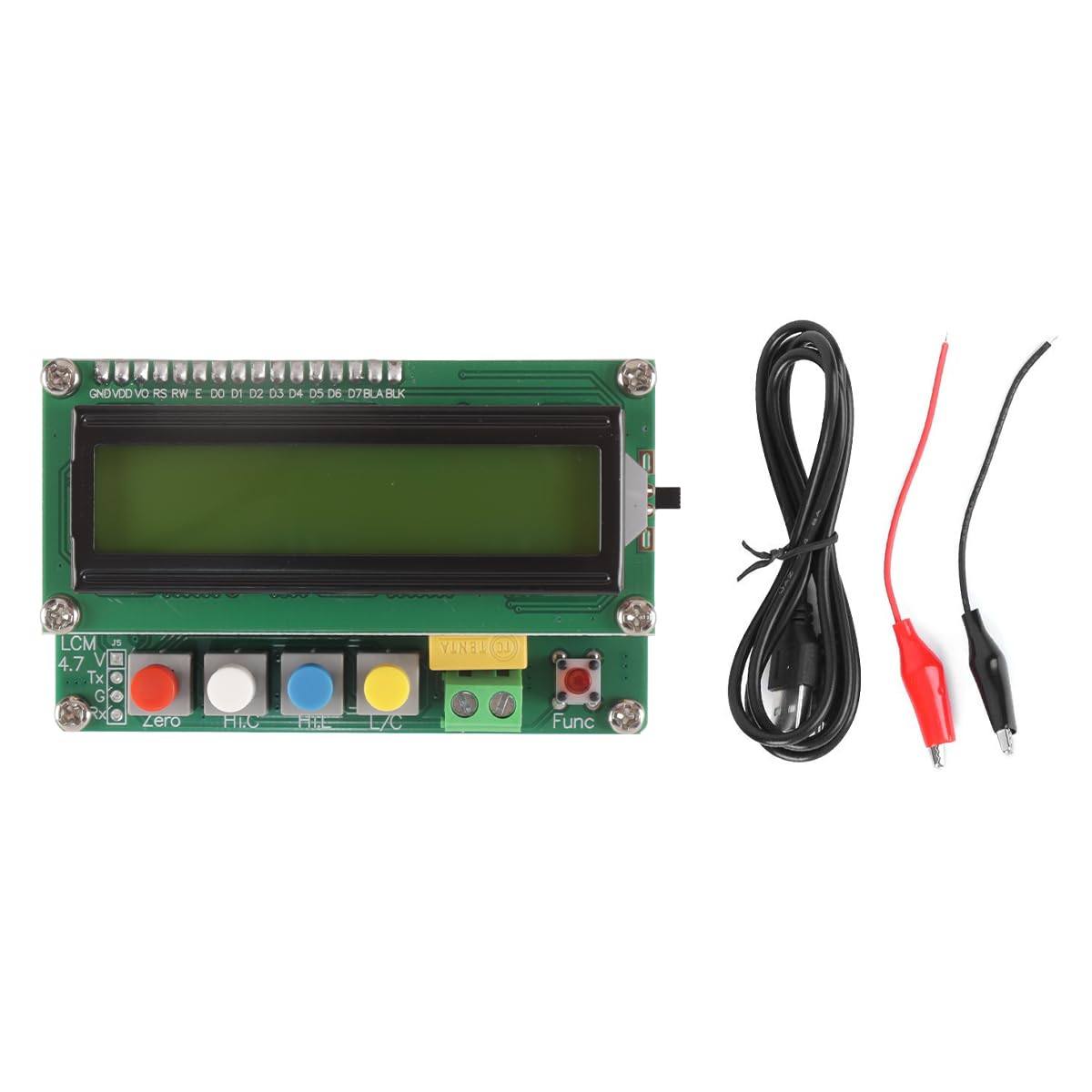

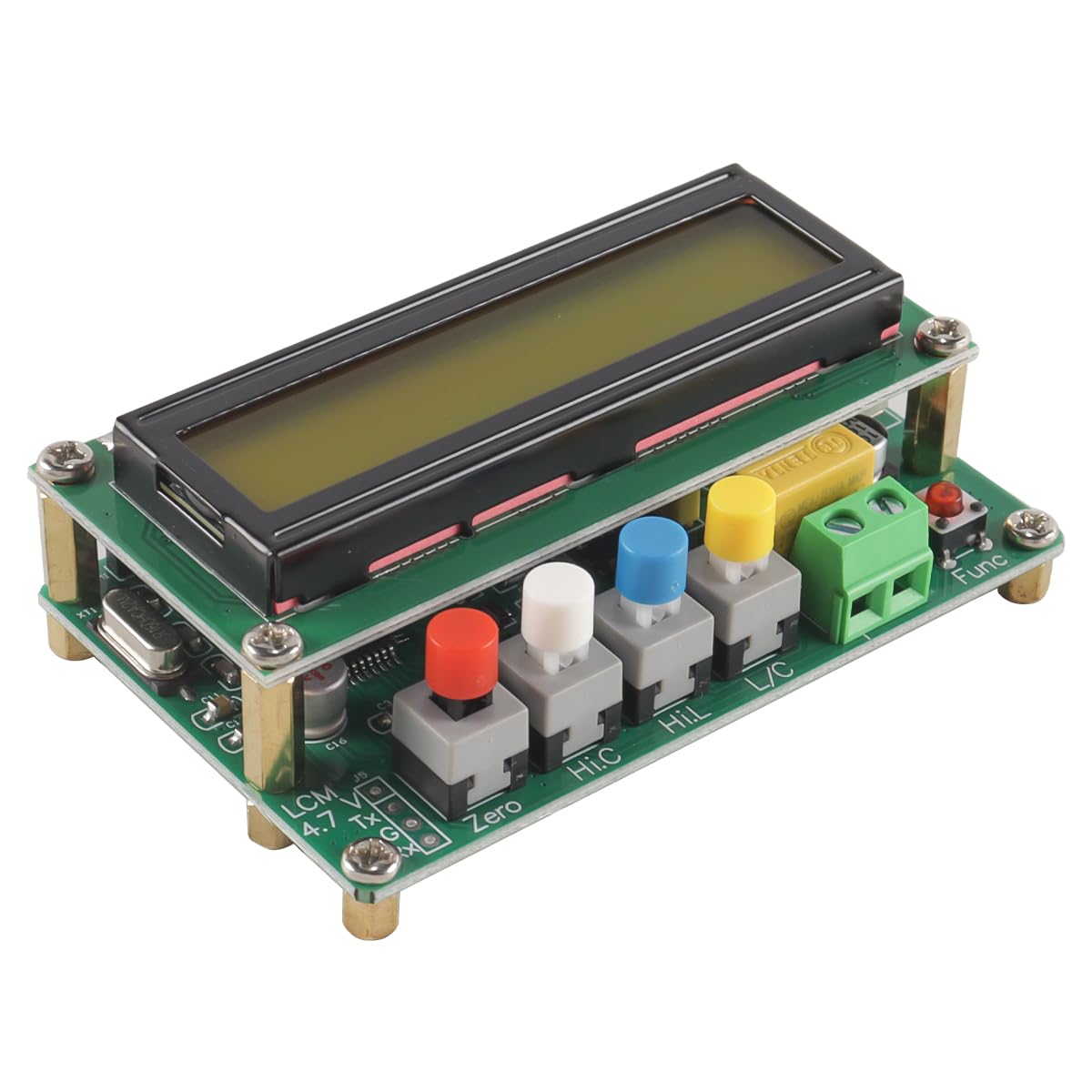

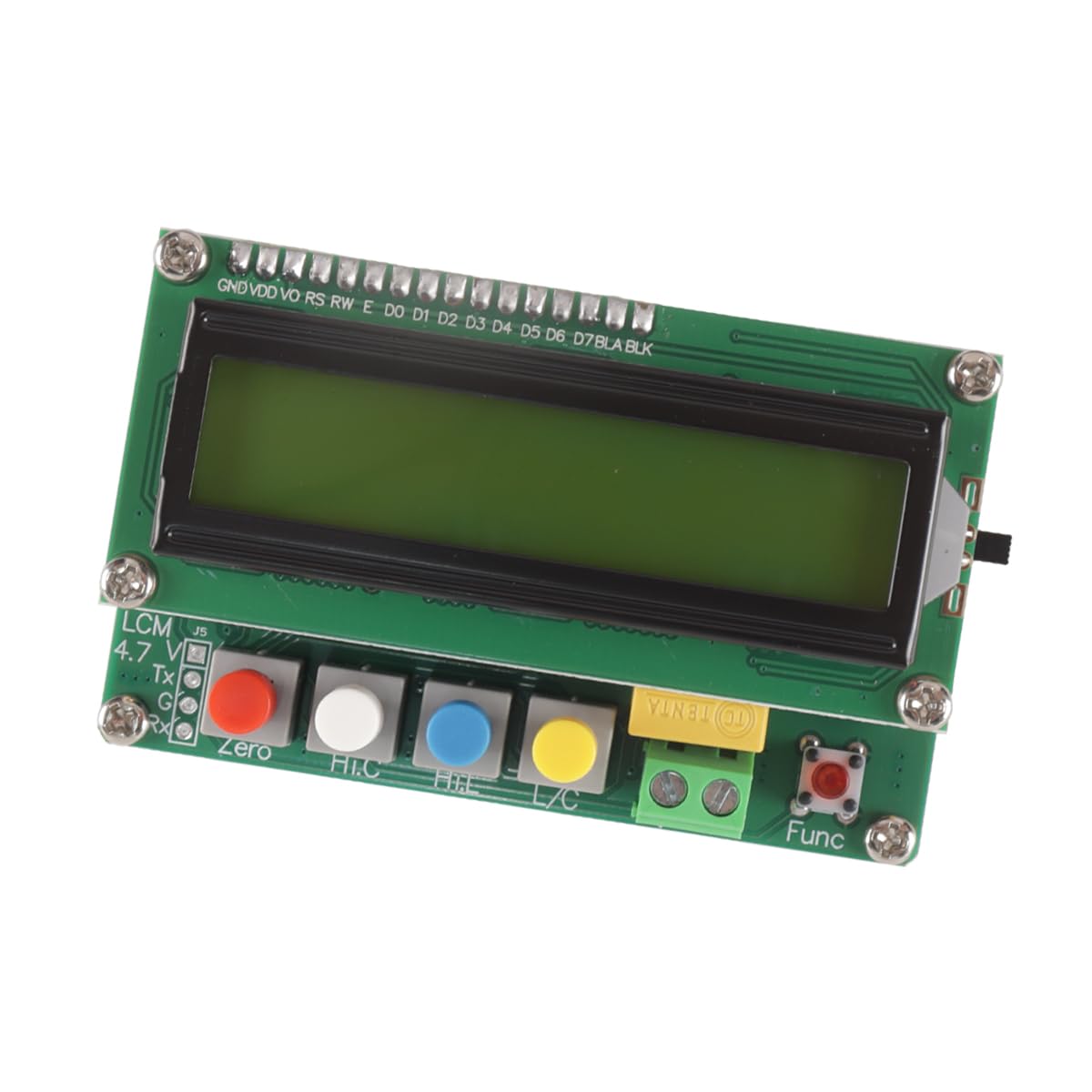

1 x LC100-A Inductance and Capacitance Meter
1 x Mini USB cable
Note:
1. This package contains the above contents only, and does not include other products.
2. Light shooting and different displays may cause the color of the item in the picture to be a little different from the actual item. The measurement allowable error is +/-1-3cm.
