Description

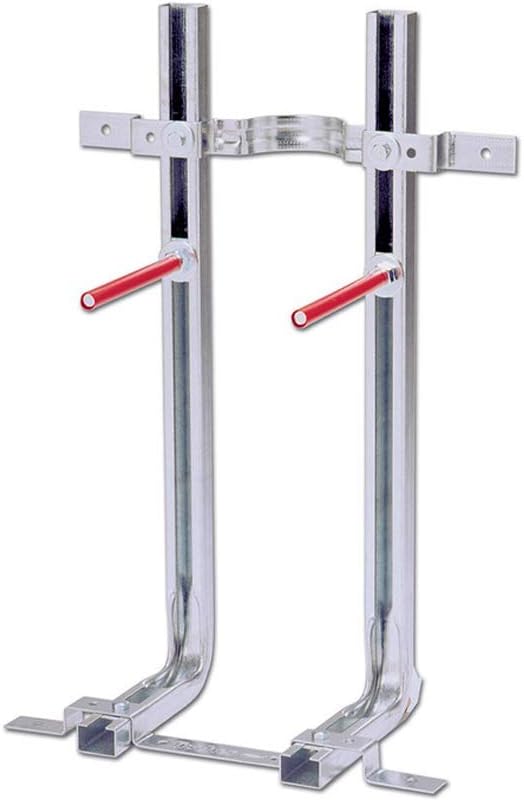

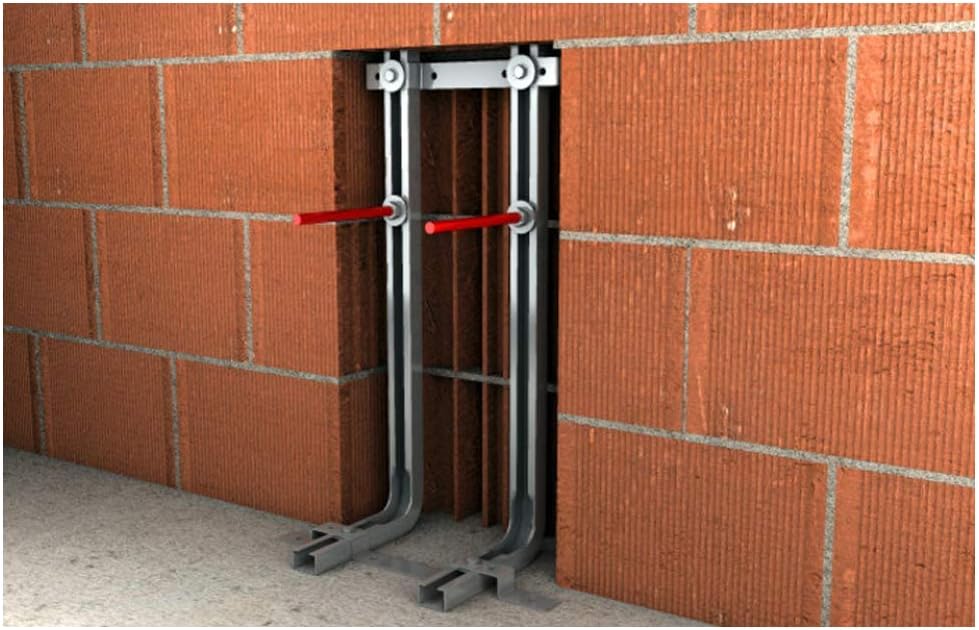

Pre-assembled L Plus / LC Plus system; pre-assembled L-frame for hanging toilet and bidet; support materials: solid brick brick; semi-filled brick (vertically perforated) brick; advantages: LC plus with shaped crossbar for clearing the rinsing box; l plus with straight crossbar for using bidet or toilet with lateral positioning of the cassette; complete kit of bushings eccentric BUU AK, M12 bars and nuts; pre-assembled system with 180 mm centre distance and can be adjusted up to 230 mm; M12 bars 180 mm long; tested to 400 kg according to UNI EN 997 and UNI EN 14528; application with any recessed box; floor support base without drilling screws. People; Applications: Toilet and bidet suspended on load-bearing walls; operation: Insert the M12 bars with the red protection; fix the bracket at the required wheelplace; install in the wall and rinse; eliminate the red protection, install the sanitary and fix the nuts by covering with the BUAK bushings; Specifications: Height – L. 1. [mm]: 600; Width – L. 2. [mm]: 200; wheelbase – L. 3. [mm]: 180/230; References: EAN: 8001132010266; Fischer Code: 501026
