Description

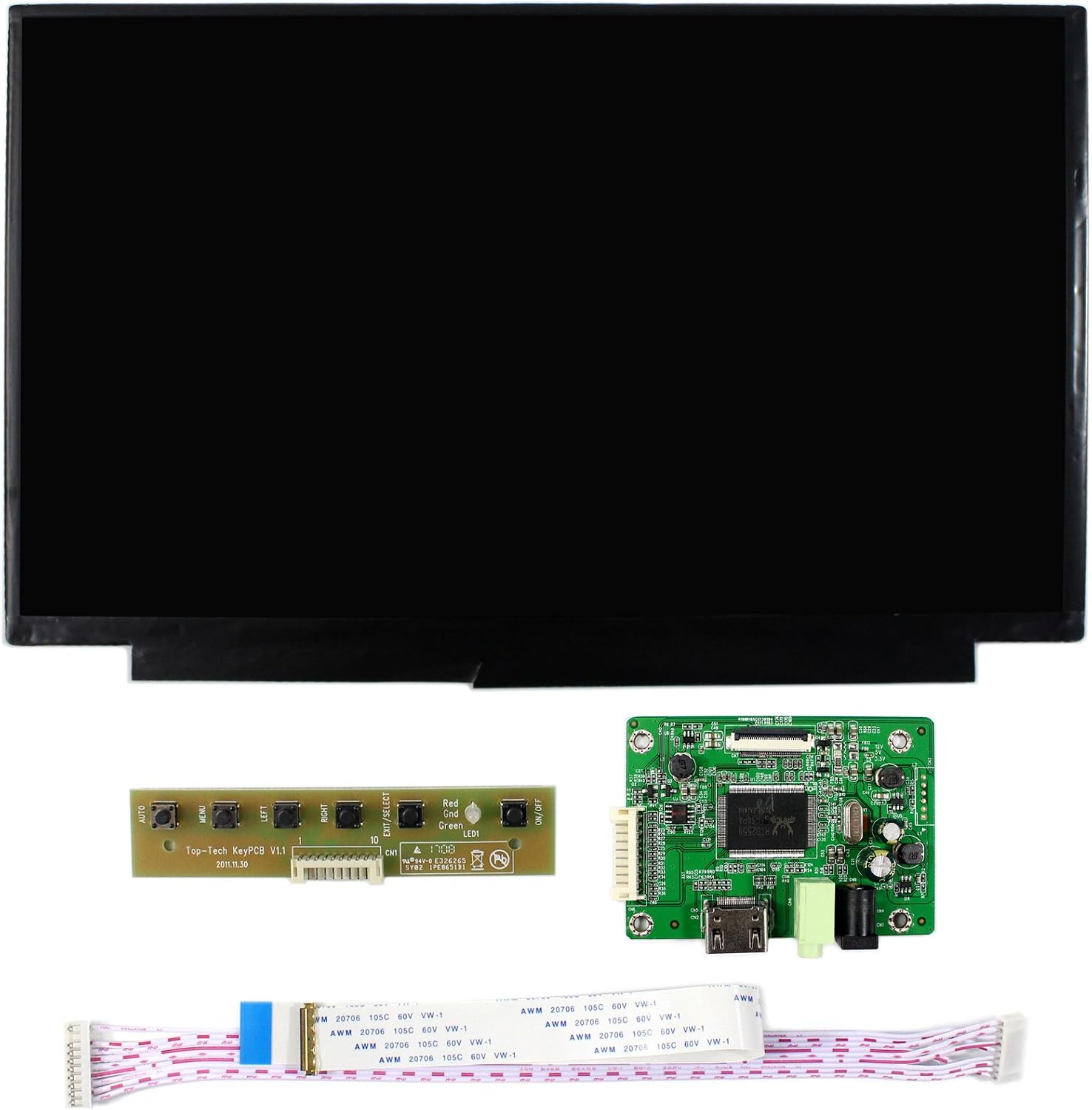

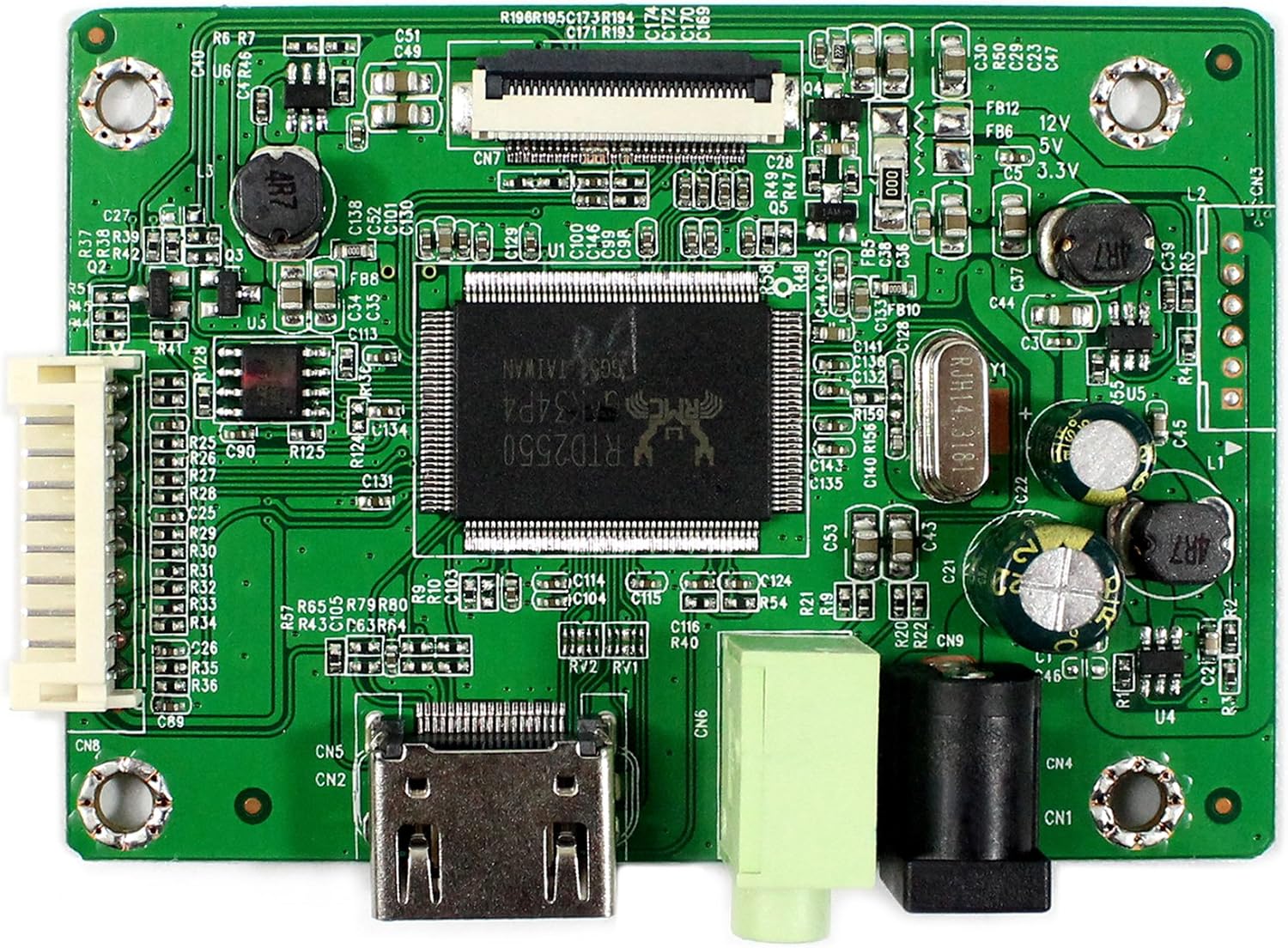

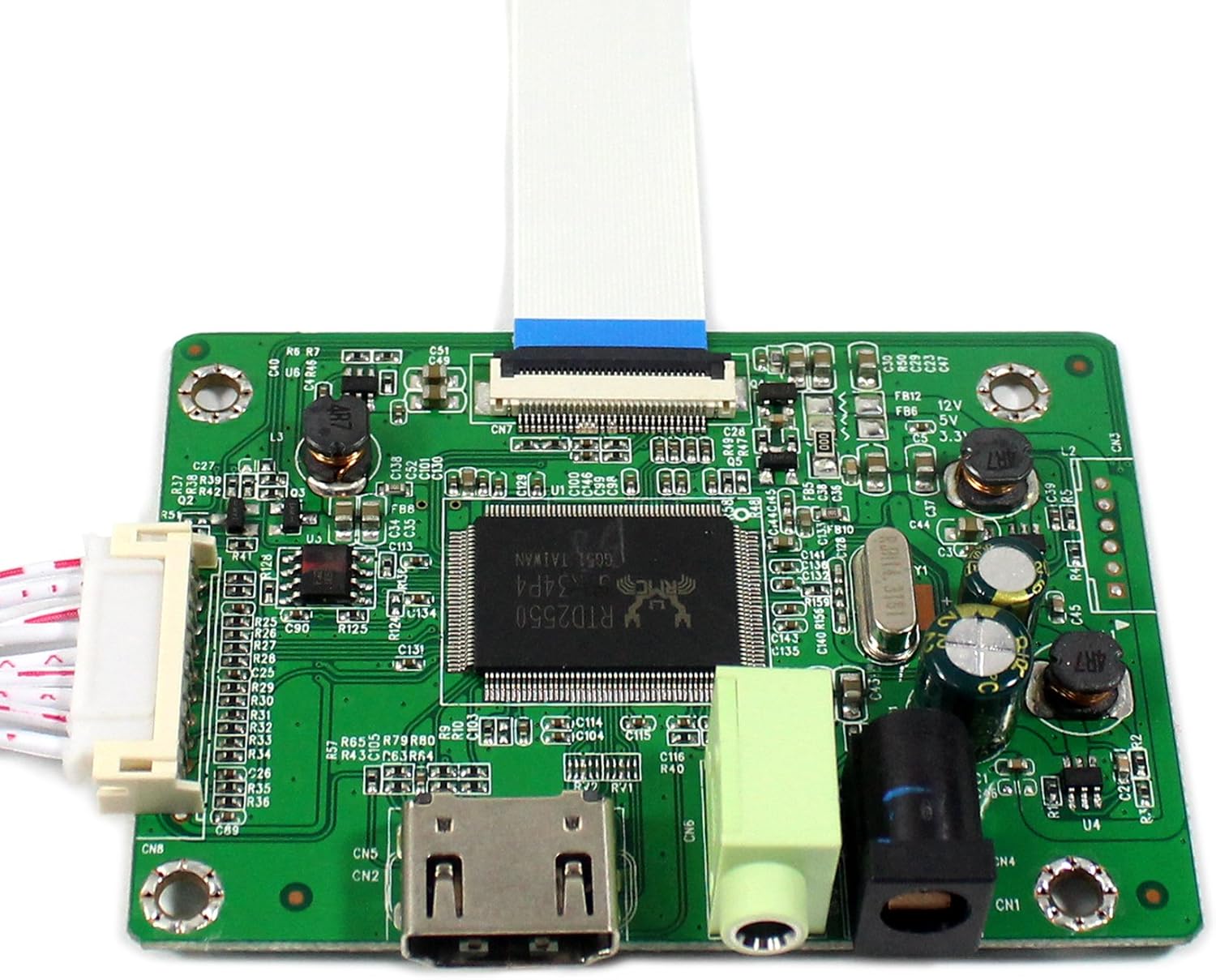

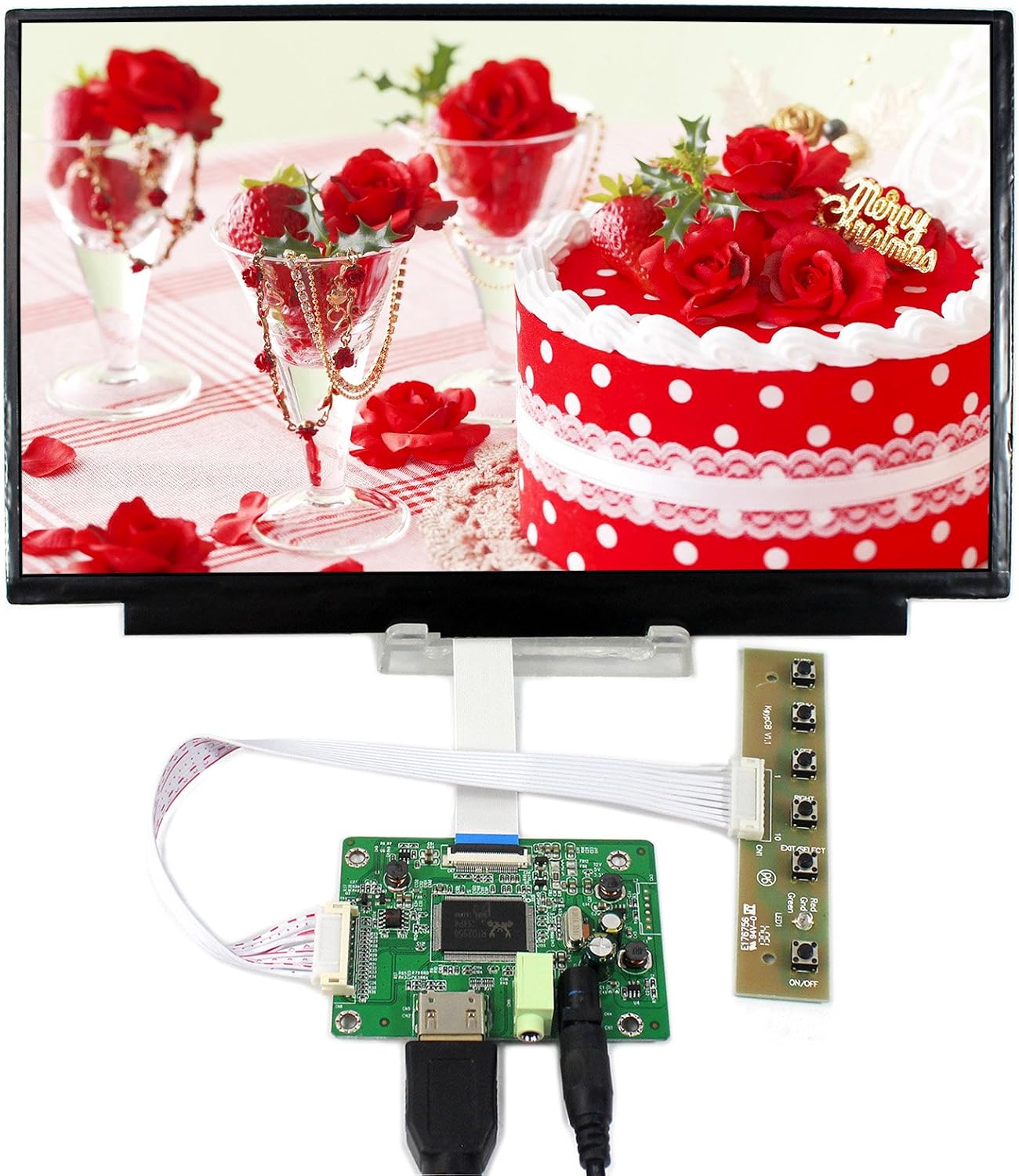

LCD Controller Board: HDMI Board Work for 30Pin EDP LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model Audio Input: HDMI Audio Output: Earphone OSD: Brightness Contrast VOL+ VOL- Language And So On Language: English Board Size:77mm x 55mm x 16mm11.6″ LCD Screen N116HSE-EJ1: Display Mode AAS, Normally Black, Transmissive Resolution 1920RGB)×1080 Outline Size 268 × 156.9 × 2.5 (H×V×D) Display Area 258.32 × 146.18 (H×V) Brightness 350 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface eDP (2 Lanes) , Connector , 30 pins Backlight WLED Input Voltage 3.3V (Typ.) Packing list : 1× HDMI LCD Controller Board 1×11.6inch N116HSE-EJ1 1920X1080 IPS LCD Screen 1× Signal Cable 1× Keyboard With Cable
