Description
Details

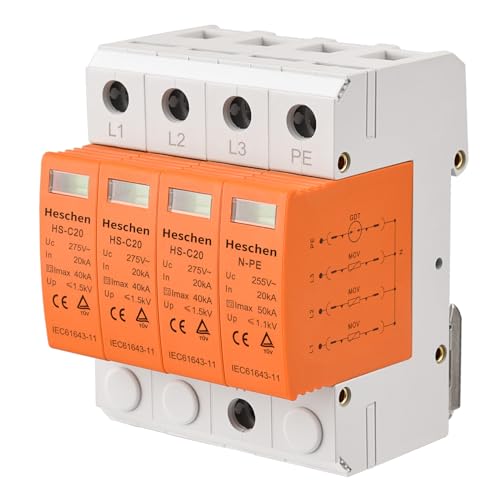

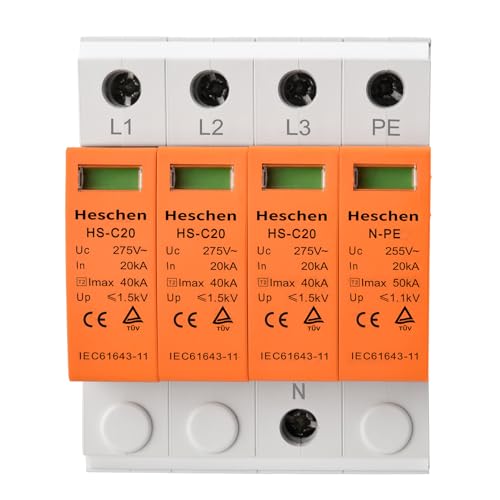

Heschen Surge Protective Device SPD, HS-C20, 275VAC 20KA, 3+N-PE, Fire-Proof, Low-Voltage Arrester, 35mm DIN Rail Mounting: Max Continuous Operating Voltage: (L-N) 275V AC, (N-PE) 255V AC. Nominal discharge current: 20kA; Max discharging current (T2): (L-N) 40kA, (N-PE) 50kA.
Key features
- Max Continuous Operating Voltage: (L-N) 275V AC, (N-PE) 255V AC
- Nominal discharge current: 20kA; Max discharging current (T2): (L-N) 40kA, (N-PE) 50kA
- Voltage Protective Level: (L-N) ≤1.5kV, (N-PE) ≤1.1kV
Product specifics
- Brand: Heschen
- Category: Circuit Breakers
- Model: HS-C20 3+N-PE
- Part number: HS-C20 3+N-PE
