1. MAIN FUNCTION: This hole drill locator is used for common 35mm straight arm and mid bend hinges, greatly improves the mounting efficiency.
2. RELIABLE MATERIAL: The main body is made of aluminum alloy, theis sandblasted, the drill bushing is made of stainless steel, which is hard wearing and greatly extends the drilling life.
3. ECCENTRIC WHEEL DESIGN: The hinge hole locater is designed for common 40mm connecting rod, with eccentric wheel hole position design, is moved up 1.5mm, the splicing is closer.
4. EASY TO USE: Align the locator with the marking line and place on the cabinet door, cover the red baffle on the edge, use the marking tool to mark the hole center and the two screw holes.
5. WIDE USAGE: The hole drill guide is widely used for hinge installation of cabinet, door, window, folding table and other furniture, very practical.
Specification:

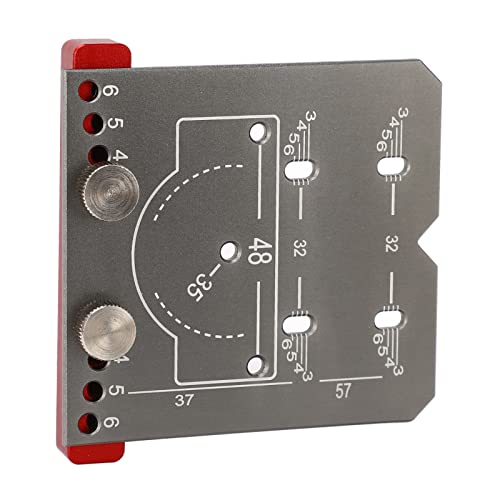

Item Type: Hinge Hole Drilling Locator
Material: Aluminum Alloy
Positioning Function:
35mm Straight Arm or Middle Bending Hinge Hole Positioning
32mm Connector Hole Positioning
Hinge Cup Edge Distance: 3 4 5 6mm Four Gear Adjustable
Drill Bushing Size: Approx. 8mm/0.3in
Hole Spacing: Approx. 28mm/1.1in
Scale Parameters:
English Range: 3-11/16in, Minimum Scale: 1/16in
Metric Range: 94mm, Minimum Scale: 1mm
packing list:
1 x Hinge Hole Drilling Locator
