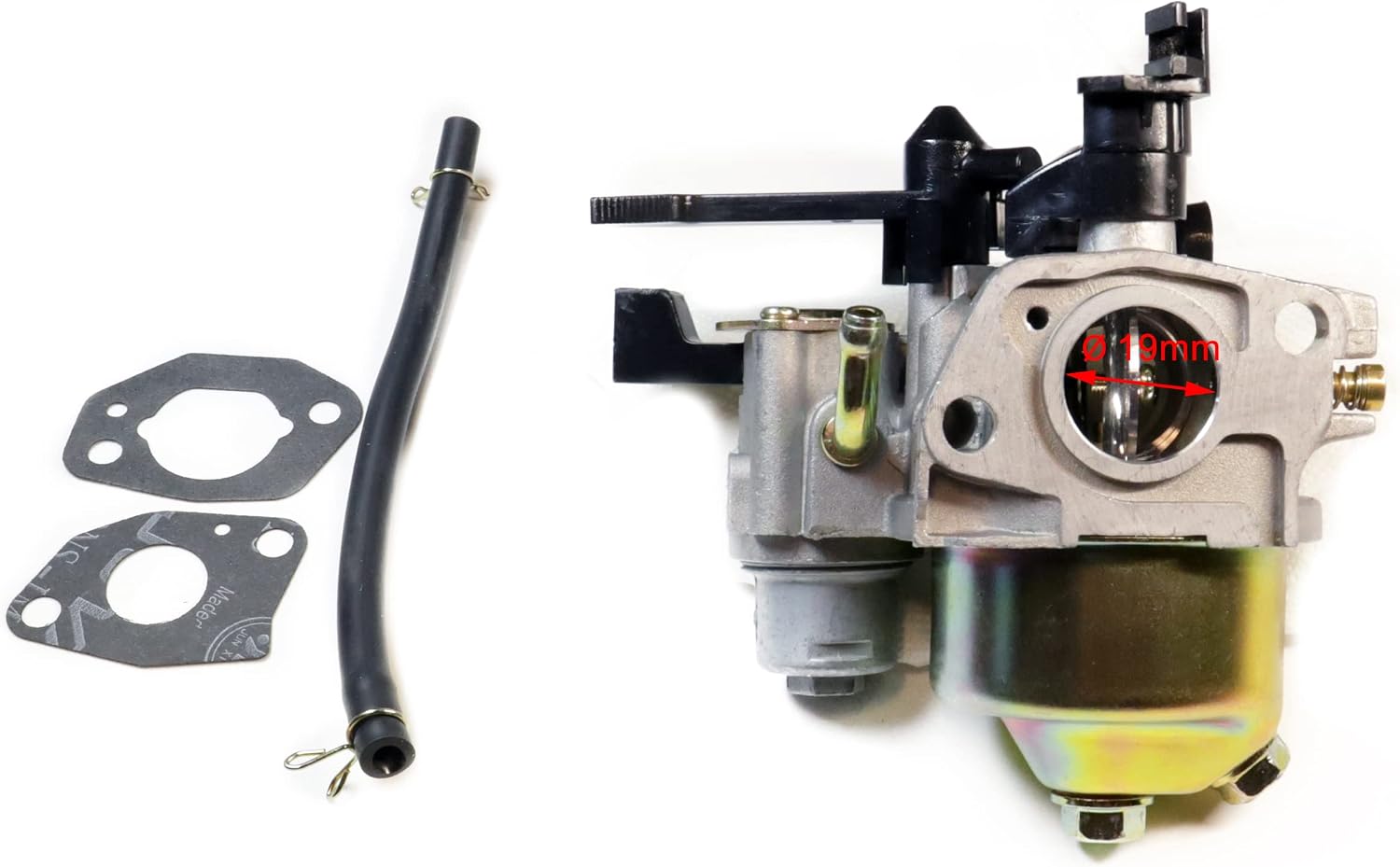

HOLZER D19 mm carburettor for 140-220 cc petrol engines with seals
HOLZER D19 mm carburettor for 140-220 cc petrol engines with seals - Image 2
HOLZER D19 mm carburettor for 140-220 cc petrol engines with seals - Image 3
HOLZER D19 mm carburettor for 140-220 cc petrol engines with seals - Image 4
HOLZER D19 mm carburettor for 140-220 cc petrol engines with seals - Image 5

HOLZER D19 mm carburettor for 140-220 cc petrol engines with seals

$75.99

  • Throttle valve (outlet): diameter 19 mm. Choker flap (inlet): diameter 24 mm. Length (flange flange): 55 mm. Hole spacing stand bolt: 43 mm. Mounting holes stand bolt: diameter 7 mm. Choker flap actuation: by hand lever. Choker flap locking: yes (open/closed). Stand-up gas adjusting screw: yes. Adjustable empty air nozzle: yes. Integrated tank tap: yes. Fuel nipple diameter: 5 (6) mm. For hose inner diameter: 5 mm. Float chamber removable: yes
  • Float chamber drain screw: yes, bottom. Height: approx. 110 mm. Width: approx. 80 mm. Net weight: 260 g.

In stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Throttle valve (outlet): diameter 19 mm Choker flap (inlet): diameter 24 mm Length (flange): 55 mm Hole spacing: 43 mm Mounting holes: diameter 7 mm Choker flap actuation: by hand lever. Locking choker flap: yes (open/closed). Standing gas adjustment screw: yes. Empty air nozzle adjustable: yes. Integrated tank tap: yes. Fuel nipple diameter: 5 (6) mm For hose inner diameter: 5 mm Float chamber removable: yes. Float chamber drain plug: yes, bottom. Height: approx. 110 mm. Width: approx. 80 mm. Net weight: 260 g

Additional information

Weight 0.29 kg
brand

HOLZER
dimensions

‎10.4 x 9.7 x 6.7 cm; 290 Grams
