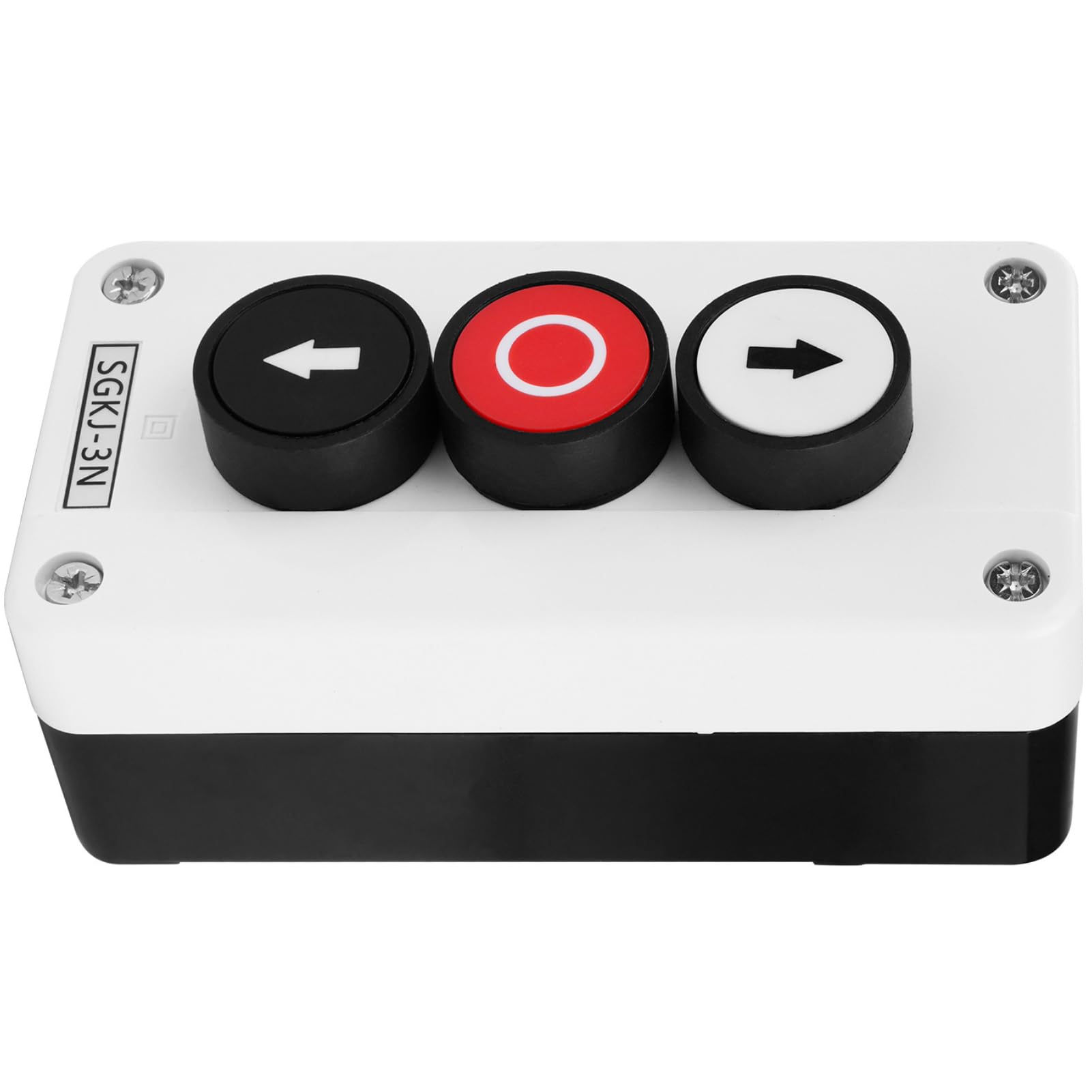

Jadeshay Push Button Switch, Waterproof Momentary Push Button Switch Up and Down Switch Hoist Control Switch for Indoor and Outdoor (3 Position)
Jadeshay Push Button Switch, Waterproof Momentary Push Button Switch Up and Down Switch Hoist Control Switch for Indoor and Outdoor (3 Position) - Image 2
Jadeshay Push Button Switch, Waterproof Momentary Push Button Switch Up and Down Switch Hoist Control Switch for Indoor and Outdoor (3 Position) - Image 3
Jadeshay Push Button Switch, Waterproof Momentary Push Button Switch Up and Down Switch Hoist Control Switch for Indoor and Outdoor (3 Position) - Image 4

Jadeshay Push Button Switch, Waterproof Momentary Push Button Switch Up and Down Switch Hoist Control Switch for Indoor and Outdoor (3 Position)

$56.99

  • Electrical ON/OFF ControlPush button switch is widely used in various circuit control scenarios. By sending control signals, it checks contactors, relays and other electrical components, thus achieving precise control of the main circuit.
  • Basic IntroductionInternal grounding, both switches are normally open. Operation type: momentary; only leads when pressed and stops contact when release (stop pressing). Rated voltage and current: AC 230V/10A, button: up, down.
  • Rainproof and DustproofIndustrial grade ABS plastic, splash-proof and shock-resistant. The back cover is sealed with a rubber gasket, which can achieve IP65 protection, rain and dustproof, safe to use, and can be used indoors and outdoors.
  • Widely ApplicableThe push button switch can be used for remote control of equipment such as cranes, electric hoists, winches, lifting platforms, ships, dump trucks, dump trailers, etc.
  • Pure Copper PartsThe control handle contains copper parts, which are resistant to oxidation and corrosion, provide lower strength, reduce energy loss and minimize heat generation, improving the service life and reliability of the switch.

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

Specifications:
Product Name: Control Button Switch
Material: ABS plastic
Number of buttons: 2 buttons
Button Contacts: 1 Set Normally Open
Operation Type: Self Recovery
Rated voltage and current: AC 230V/10A
Insulation voltage: AC 400V
Protection level: IP65
Insulation opening: 22 mm.
Product size: 10.5*6.8*5cm
Product weight: 175g

Note:
Due to the different monitor and light effect, the actual color of the item may be slightly different from the color shown on the pictures.
Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing list:
1 x Push Button Switch

Additional information

Weight 0.285 kg
Brand

Jadeshay
SKU: B0F1XWQ238 Category: Tags: , ,
