Additional information
| Weight | 2.61 kg |
|---|---|
| Brand | Schlösser Armaturen |
| EAN | 4044997221020 |

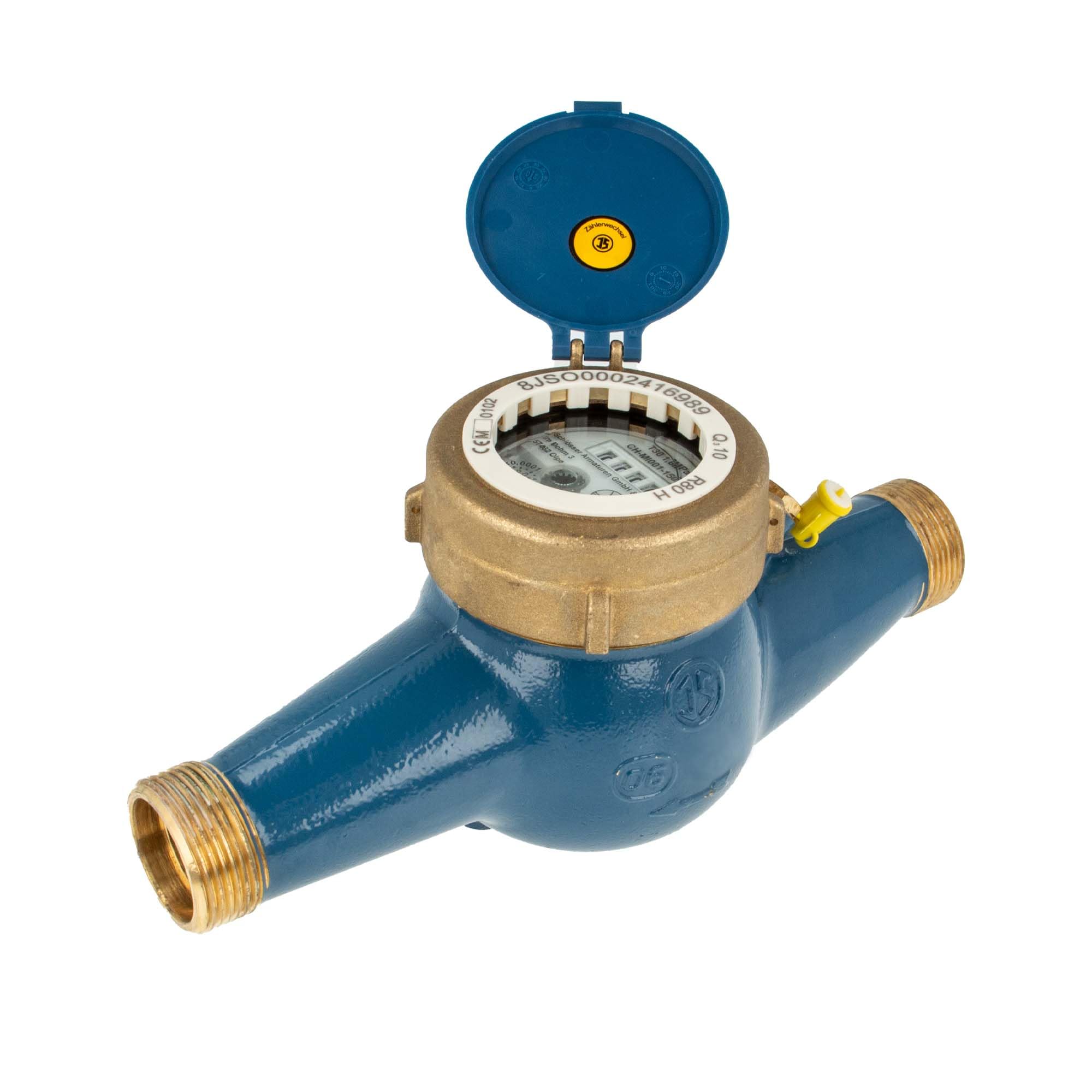

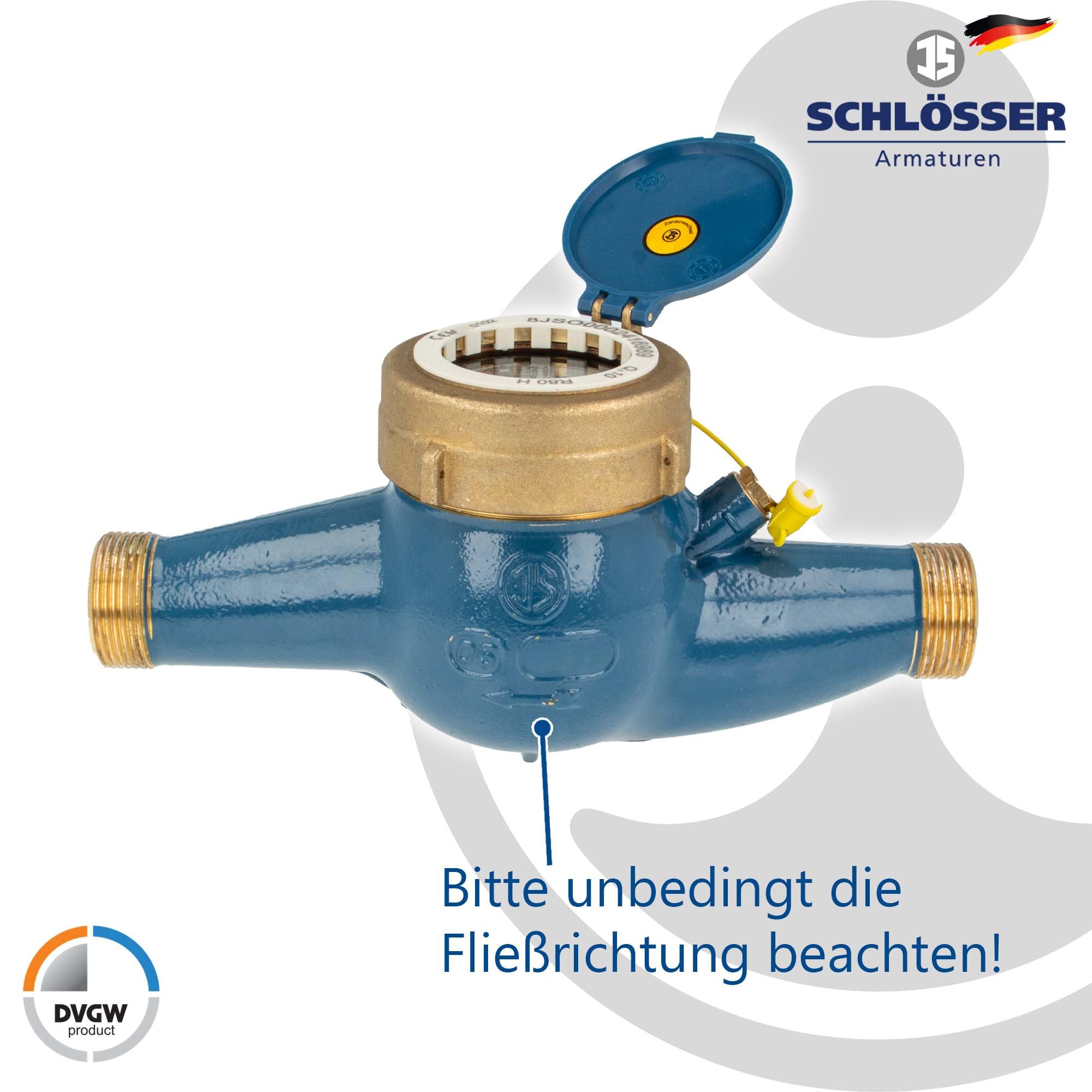

JS Home Water Meter MNR 1 Inch DN 25 Q3 = 10, R80, Length 260 mm
$0.00
- Cold water domestic water meter as a multi-jet impeller wet runner for cold water up to 30 C. For horizontal installation. The meter insert is sealed and equipped with a protective cap

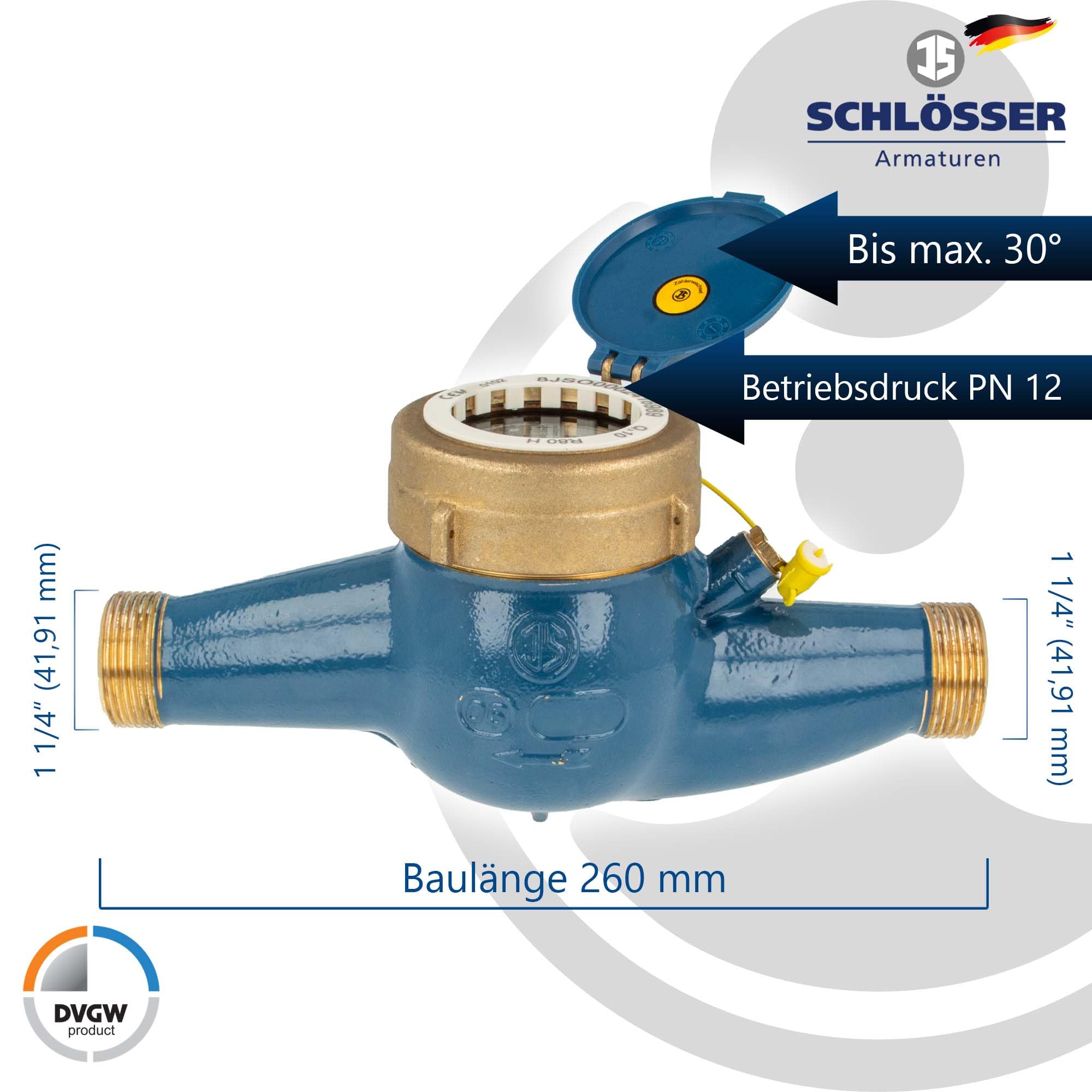

- Length: 260 mm/DN 25 // Connection: 1 1/4 inch external thread // Calibration year corresponds to the current calendar year // Manufacturer: Werner Schtz water meter Olpe/Germany // Brass housing blue powder coated with KTW/W270 certificate according to Drinking water regulation // without seals for installation/replacement
- Max. Long-lasting performance: QN 10 m per hour. Smallest flow Q1: 125 l/h. Operating pressure PN 12 according to DIN 2401. Metrological class: B
- Registration of the smallest water extraction // short-term heavy duty // Counter with 5 number rolls for recording whole m, max. 99,999 m as well as 4 hands for litre display up to 0.001 m/h and star wheel for visual inspection in small quantities
- This water meter is certified (calibrated) with a calibration period of 6 years from calibration year and has been manufactured according to DIN ISO 4064 and DIN 50930-6, approved for drinking water, KTW approved, PTB approved. EU declaration of conformity according to Directive 2012/32/EU”
Out of stock
