Description
Specification:
Trigger Signal Source:
High level trigger (3.0V-24V), low level trigger (0.0V-0.2V), switch control (passive switch)
Function:
Package List:

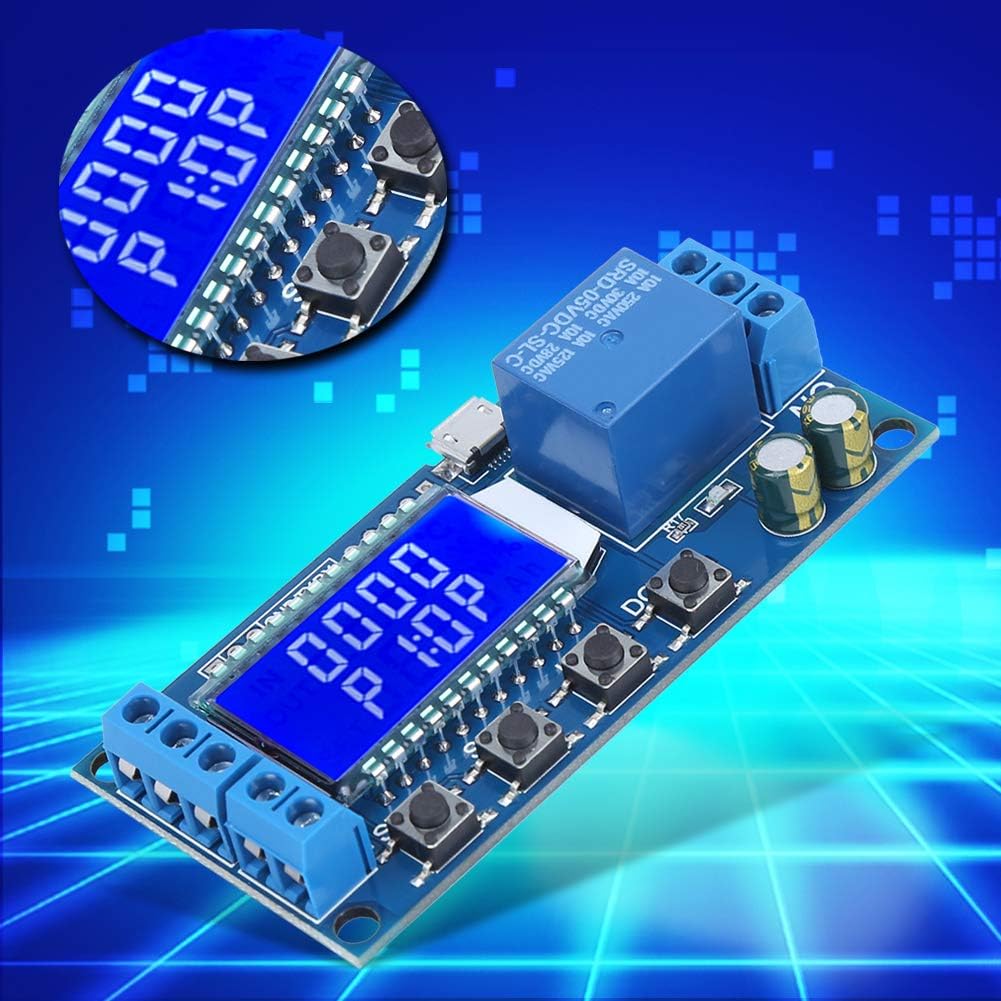

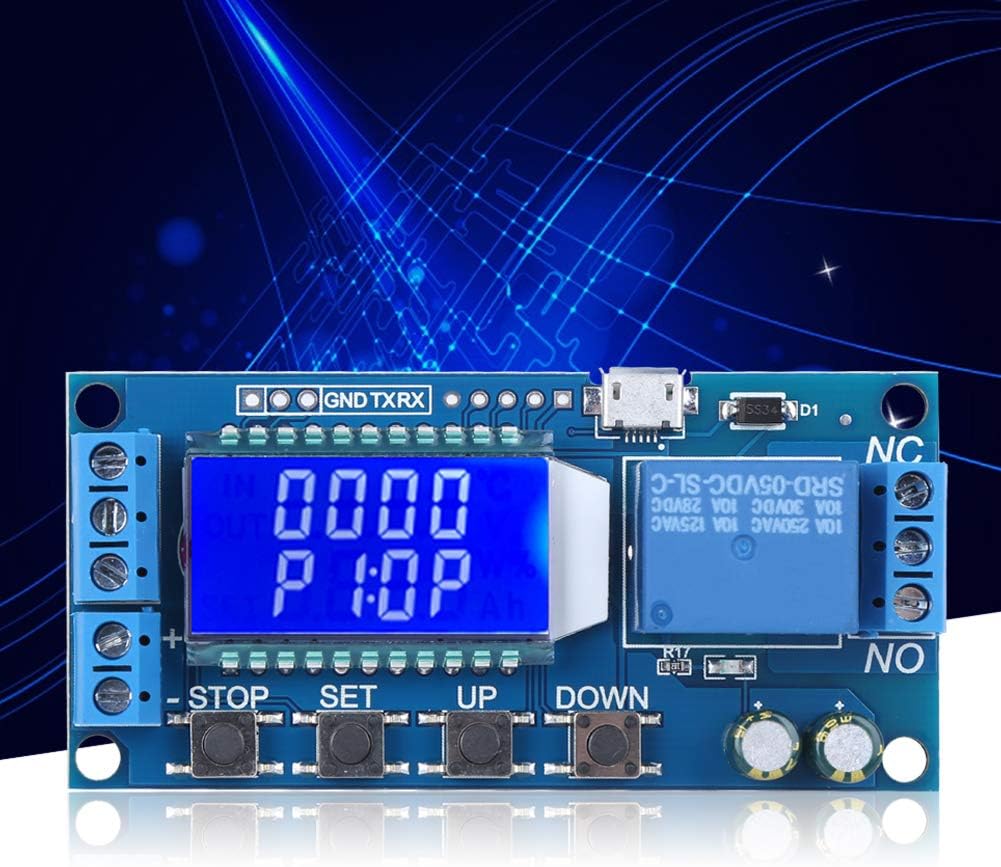

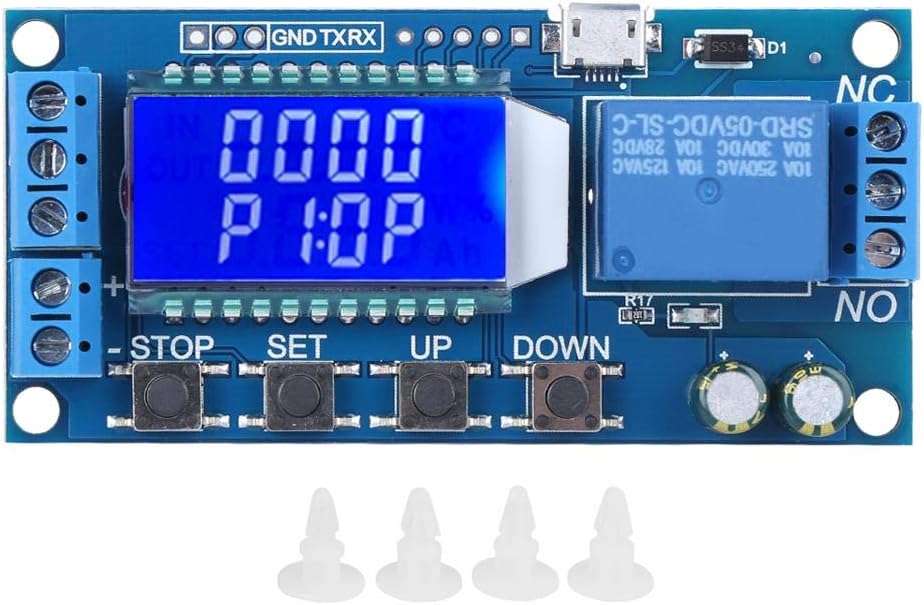

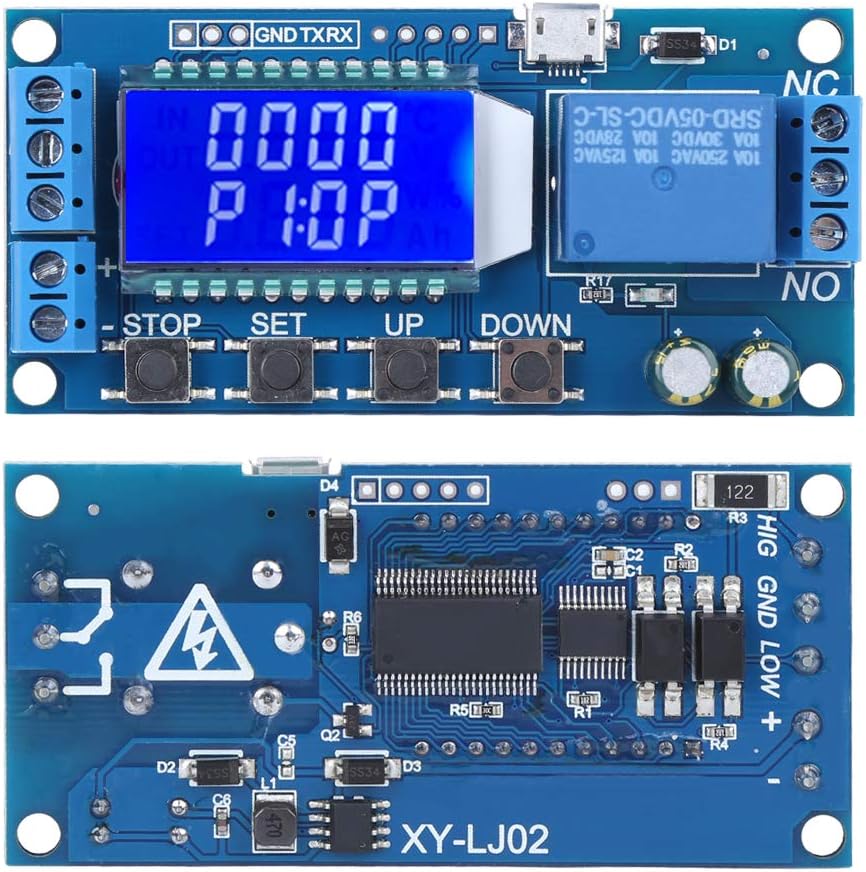

Marhynchus Loop Timing Module Cycle Trigger Delay Timer Switch Circuit Electronic Relay Module Delayed Power Off XY-LJ02
$55.99
- SUITABLE FOR MOST OCCASIONS: Wide voltage power supply (6-30V) supports micro USB 5.0V power supply, which is very convenient to useort high and low level trigger, switch control, suitable for most occasions.
- WITH REVERSE CONNECTION PROTECTION: The switch has a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn the circuit.
- VERY CLEAR: With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practicad sleep mode, after enabling, no operation within 5 minutes, automatically turn off the LCD backlight; any key to wake up.
- ENHANCED ANTI-INTERFERENCE ABILITY: Different OP, CL, LOP parameters can be set. These parameters are independent of each other and saved separately; all set parameters are automatically saved after power-off optocoupler isolation, enhanced anti-interference ability, industrial-grade circuit board, set parameters will always remember after power off.
- NOTE：We are confident the quality of our product is 100% qualified. If there is any question, feel free to contact us. We will offer the best service for you.
Out of stock
Additional information
| Weight | 0.04 kg |
|---|---|
| brand | Marhynchus |
| dimensions |
