Description

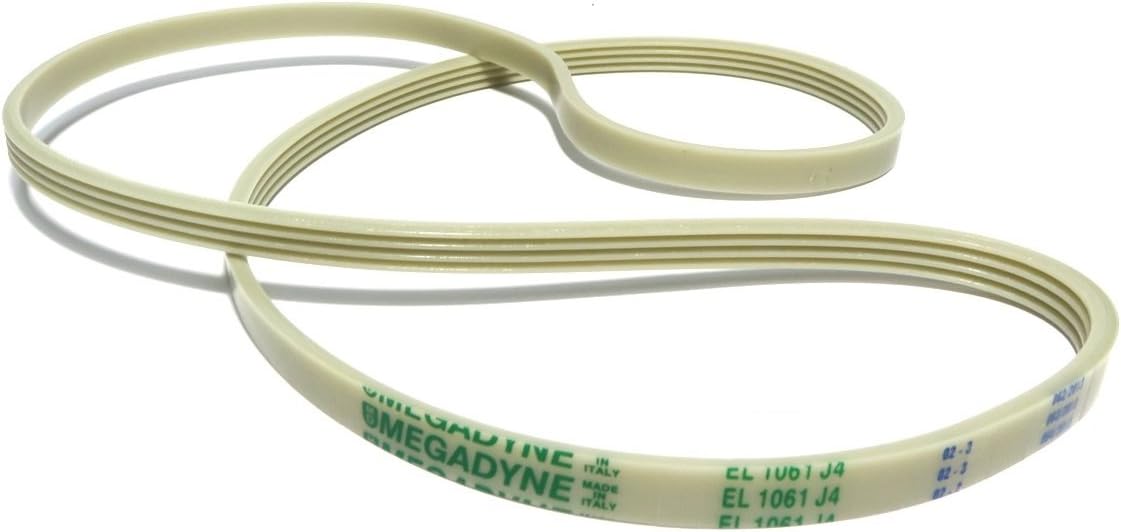

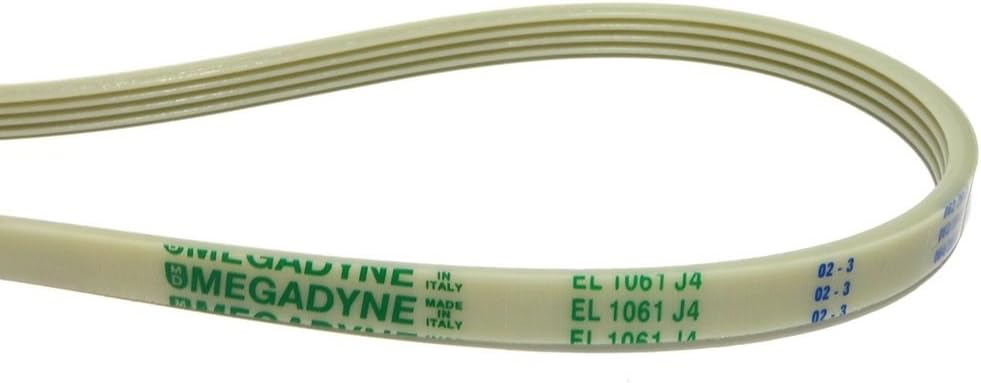

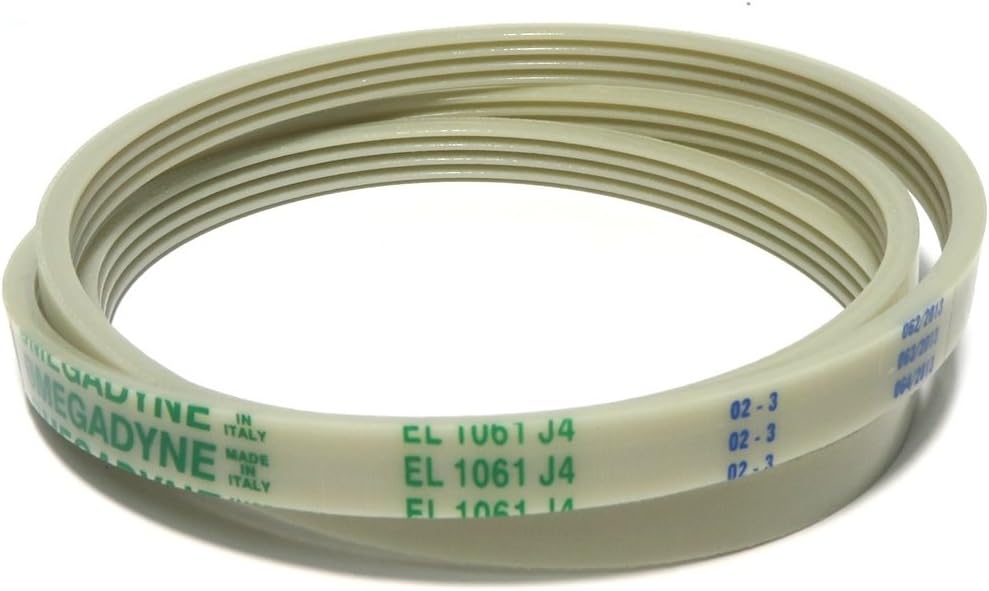

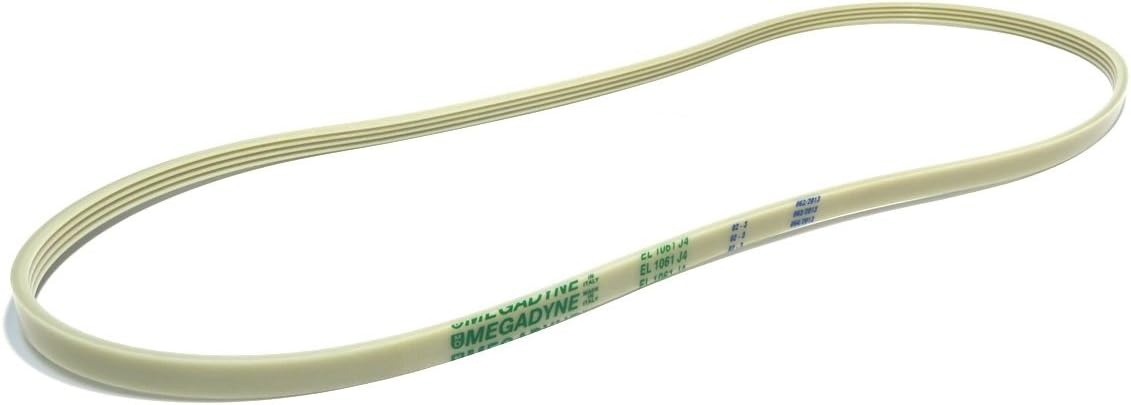

Transmission belt is ribbed, 1061 milimètres, with the function of the movement of the engine to the drum of the washing machine. It is installed in washing machines of brands SILTAL, ARISTON, HOTPOINT, INDESIT, Scholtes, CREDA, among many other brands. Teeth: 4/channels: 3/slots: Type J/elasticity: El/Length: 1061 mm/Manufacturer: Megadyneement instructionsOnce you are inside the washing machine: 1. Spend the belt in engine pulley 2. Then the belt drive to the high pulley. It is important not to try and adapt the belt by the highest part of the pulley. What needs to be done is to support the belt in a corner of the pulley 3. And start slowly and forced. The belt will be as it has elasticity (it can be set up as a bicycle chain)(look at the photo)
