Description

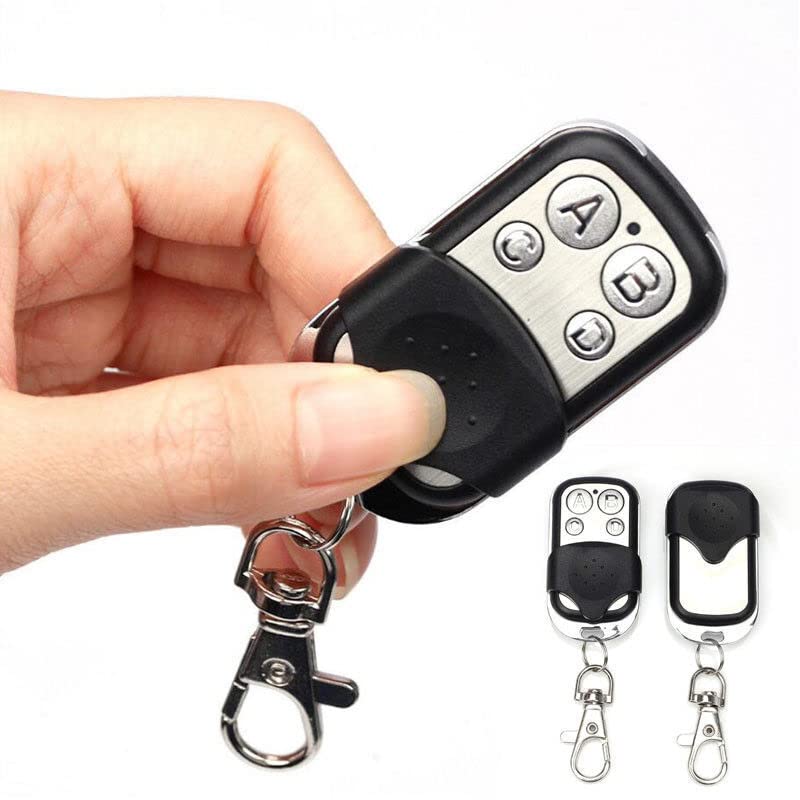

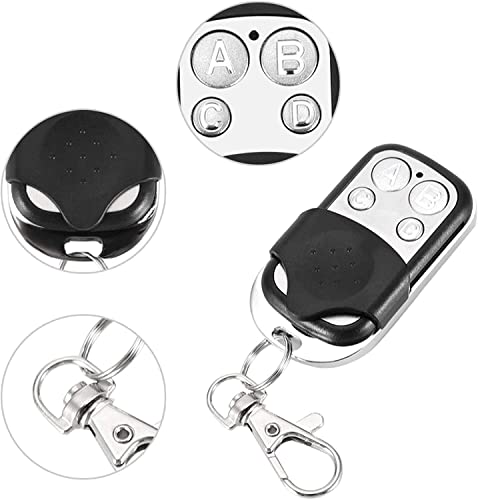

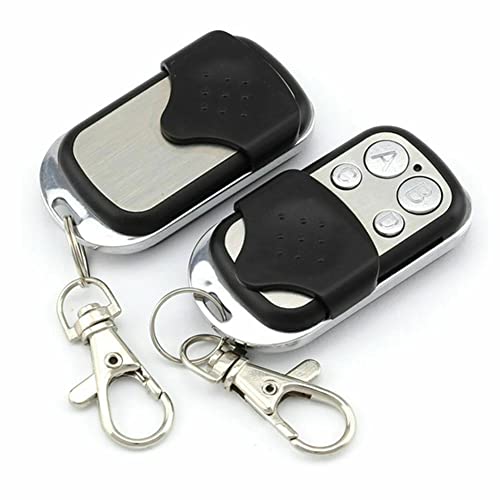

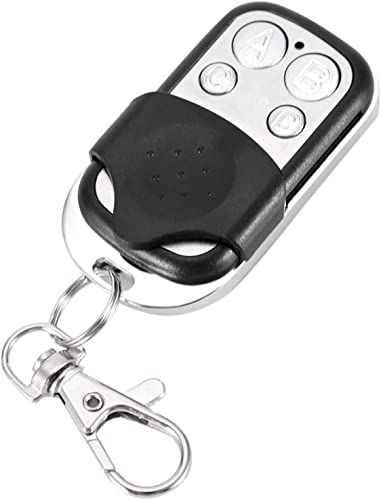

Electric Cloning Universal Gate Garage Door Remote Control Fob 433mhz Key Fob
4-Channel RF Wireless Remote Control Duplicator for Cars, Garage Doors, Gate Doors, Alarm Systems etc.
This is a fixed frequency remote cloner (433.92mhz) for copying 99.99% common fixed and learning code remote controls.
Clone up to 4 remote signals from 4 different remotes!
Specifications:
Operating frequency: 433.92MHz
Weight: 30g
Size: 55 x 33 x 15 mm
Remote control range: Up to 100 meter
Battery: 12V/27A (including)
With this replacement remote key, you can clone all 433.92MHz
Duplicate Your Existing Remote Controllers so you always have a backup:
1. Vehicle central locking systems
2. Garage doors
3. Electronic gates
4. Electrical appliances/Home automation i.e. lights
5. Car sunroofs
6. Car/Motorbike alarms
Note:
THIS ITEM IS NOT SUITABLE FOR CLONING ROLLING CODE REMOTES
With this replacement remote key you can clone all 433.92MHz fixed code key fobs based on supported IC
Supported IC CODE: 2260 (ex, PT2260, SC2260, HS2260 LX2260, HX2260, etc); 2262 (ex, PT2262, SC2262, LX2262, HS2262,
HX2262, etc), PT2264, PT2240 (LX2240 LX2241 SCL2240), CS5211, 1527 (EV1527, HS1527, HX1527 SC1527 GP1527 CP1527
AD1527 SCL1527 TL1527 ZX1527), SMC918, AX5026, SMC926, AX5326-3, AX5326-4, FP527, HT600, HT680, HT6207, HT6010,
HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F630. The Codes that have the same suffix like SC2262 and PT2262 are also supported
If IC chips cannot match, it will not be copied, please verify the chip model before you buy.
We strongly suggest you check the IC CODE of your original remote key.
The replacement remote key may not work properly if you copy the code from an unsupported IC
Open the back shell of your original remote, to see the IC board
This copy of the remote control cannot copy a computer code and rolling code, the device can only copy fixed code or learn codes
Please replace the battery when the remote control distance is insufficient.
How To Program （So Easy）：
1. Press the two top button A&B until the LED flashes – this takes around 3 seconds.
2. Place the cloner remote and the original remote close together back to back or side by side or end to end so that they are touching.
3. Simultaneously press a button on your original remote and one of the buttons on the clone remote and hold until the LED on the clone remote flashes steadily. (The LED will first flash 3 times quick, then stops for a second, then flashes steadily for successful cloning).
4. Programming is now successful! If you want to program more buttons simply repeat steps 2-3-4. It’s that easy! To reset the remote simply start again with step 1
5. If you still feel hard to program, please youtube some videos on how to pair. Thanks.
