Description

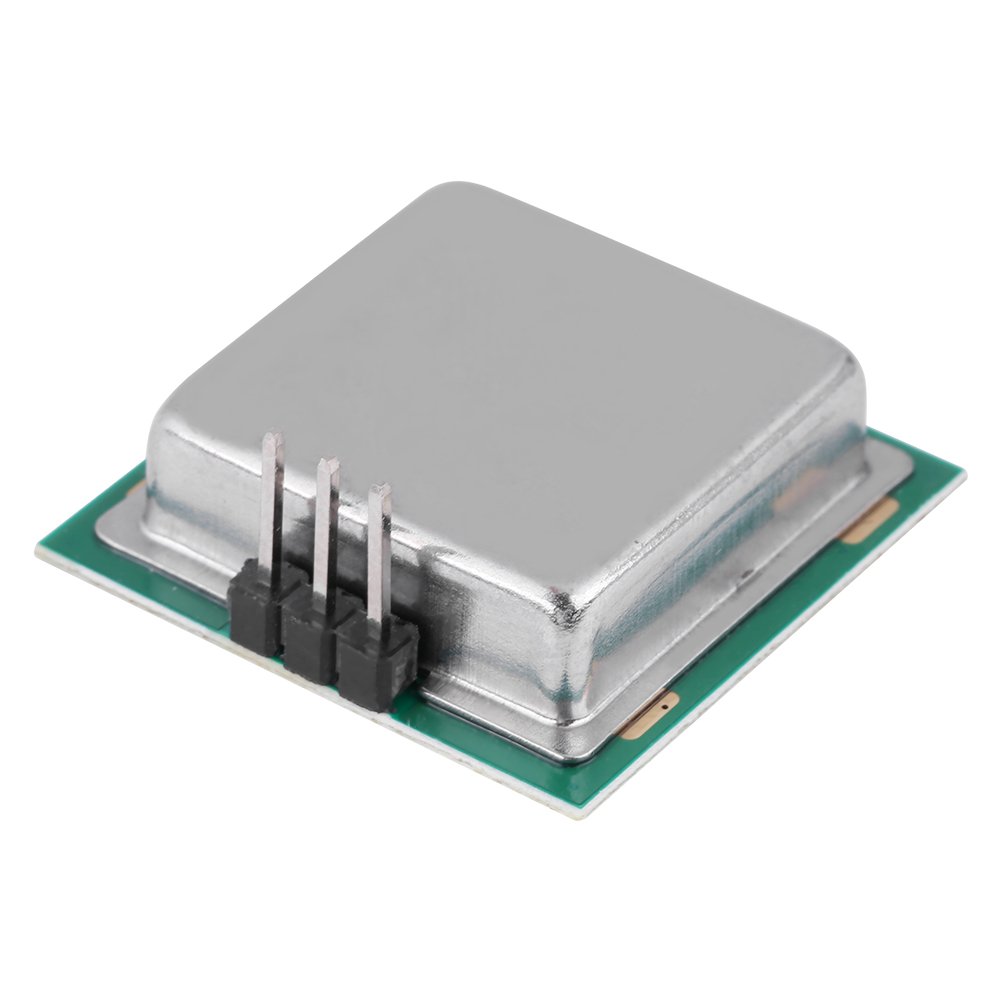

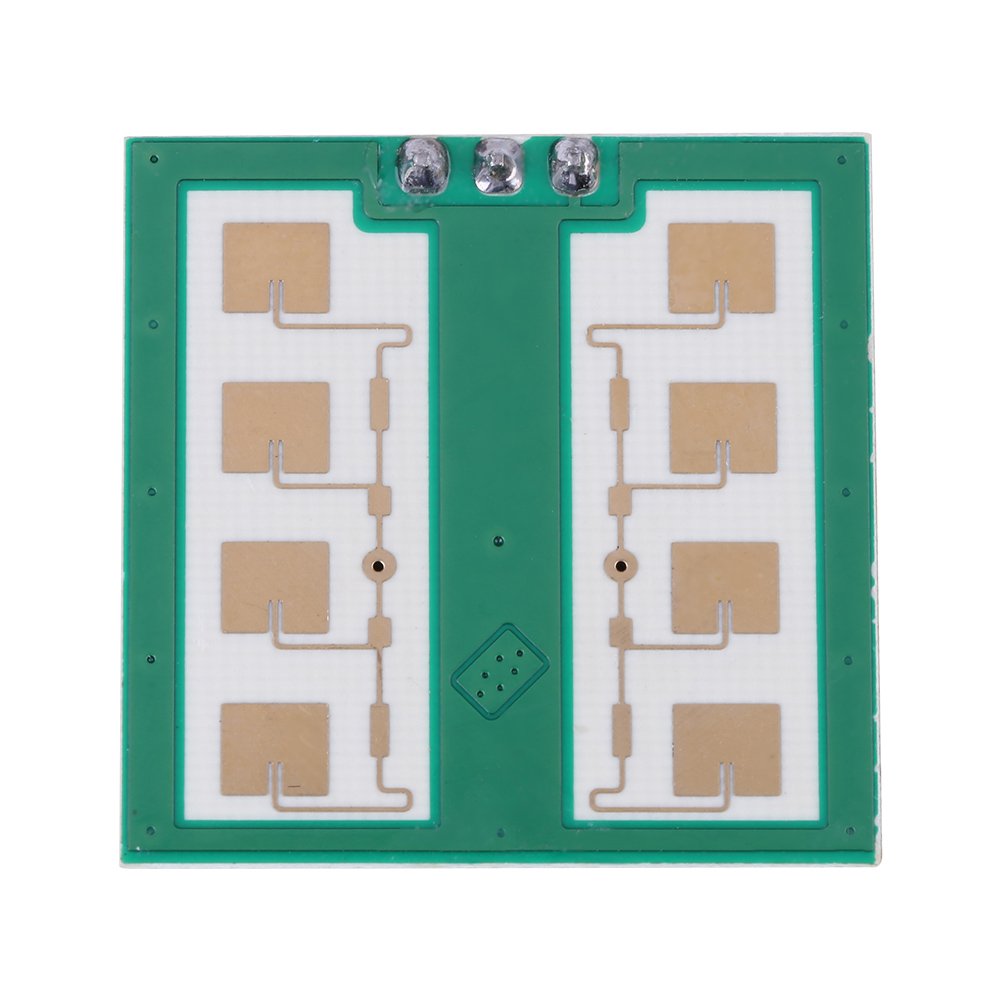

Features: Touchless detection, detecting moving objects. The transmission frequency of this module is 24 GHz and can be widely used in companies, industry, word control, etc. Advanced low consumption PHEMT oscillator. Independent broadcasting and reception channels can make the big profit. High sensitivity, high flexibility, low cost, range of 15m. Single channel operation Specifications: Transmission frequency: min: 24 GHz Type: 24.125 GHz max: 24.25 GHz Output power: 16dbm (type) Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32 Suppression ratio of the side handle: horizontal direction: typ.13 dB, vertical direction: typ.13 dB. Operating temperature: -20 ~ 60 °C Operating current: type: 30MA, max: 40MA. Operating voltage: 5.5 V. Pulse width: type: 10US. IF output: -300 ~ 300MV Size: 25 x 25 x 7 mm / 0.98 x 0.98 x 0.27 inches. Weight: 5 g Contents: 1 x Microwave Body Induction Module
