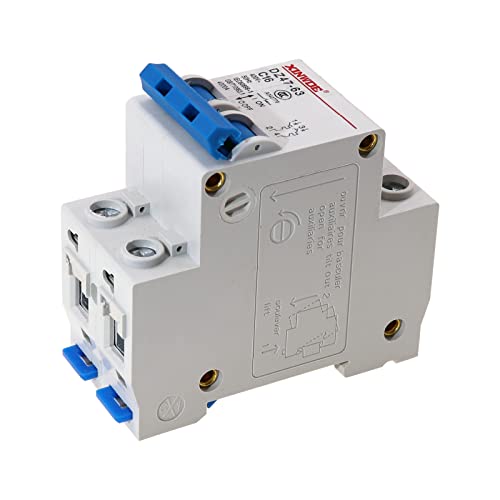

RKURCK2 Pole 400V Low-voltage Miniature Circuit Breaker 16A Din Rail Mount DZ47-63 C16

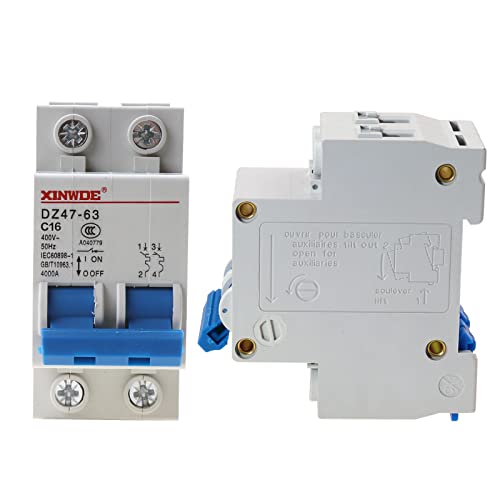

RKURCK2 Pole 400V Low-voltage Miniature Circuit Breaker 16A Din Rail Mount DZ47-63 C16 - Image 2

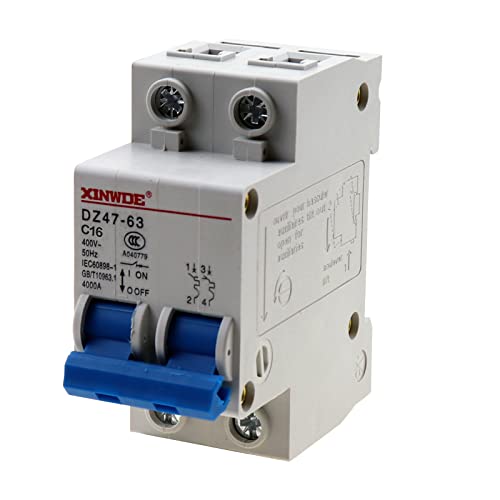

RKURCK2 Pole 400V Low-voltage Miniature Circuit Breaker 16A Din Rail Mount DZ47-63 C16 - Image 3

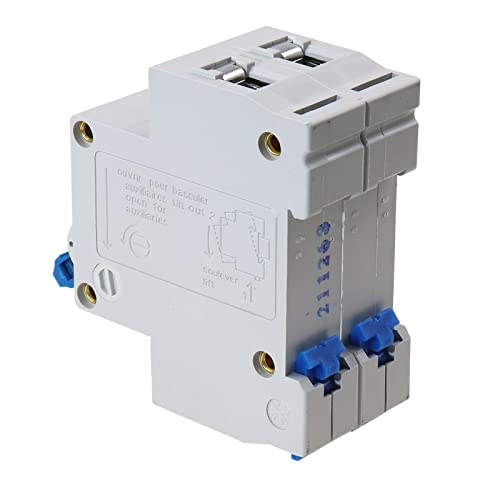

RKURCK2 Pole 400V Low-voltage Miniature Circuit Breaker 16A Din Rail Mount DZ47-63 C16 - Image 4

RKURCK2 Pole 400V Low-voltage Miniature Circuit Breaker 16A Din Rail Mount DZ47-63 C16

$32.99

  • Rated Current: 16A ; Model: DZ47-63 C16 ; Number of Pole:2,For AC 50 Hz
  • Rated Circuit Breaking Capacity: 4000A; Rated Voltage: 400V, isolation in accordance with industrial standards: IEC EC60898-1/GB10963.1
  • Modular sturcture, can be easily installed on the DIN standard guide rail in distribution box, bistable locking clip,Rail Mounting : 35mm DIN Rail
  • Fast trip function, Ensure reliable operation of the load and prolong the life of circuit breaker. It can also work as on-off switch for load circuits.
  • Be used for distribution and protection the facilities from damages caused by overload and short-circuit, the illumination of office buildings and residential buildings.

In stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

ons:
Rated Current: 16A
Rated Voltage: 400V
Rated Circuit Breaking Capacity: 4000A
Number of Pole: 2P
Switch Type: ON+OFF, Latching
Mechanical Life: 20,000 Times
Electrical Life: 6,000 Times
Rail Mounting: 35mm DIN Rail
Material: Plastic, Electric Components
Overall Size: 79 x 31 x 72mm
PC flame retardant thermoset shell
Suitable for isolation in accordance with industry standards: IEC EC 60898-1/GB10963.1

Package Content:
1x Miniature Circuit Breaker 16A

Additional information

Weight 0.15 kg
Brand

RKURCK
EAN

8424523636850
