Description

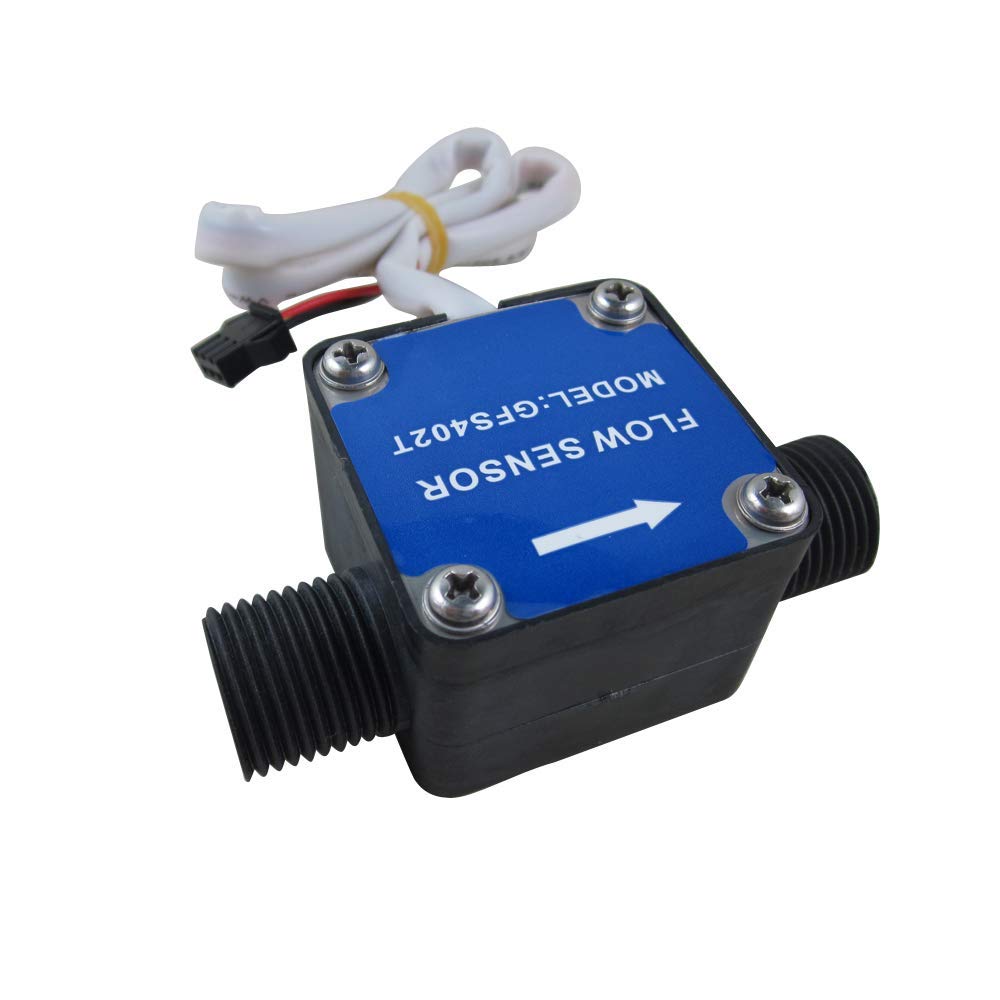

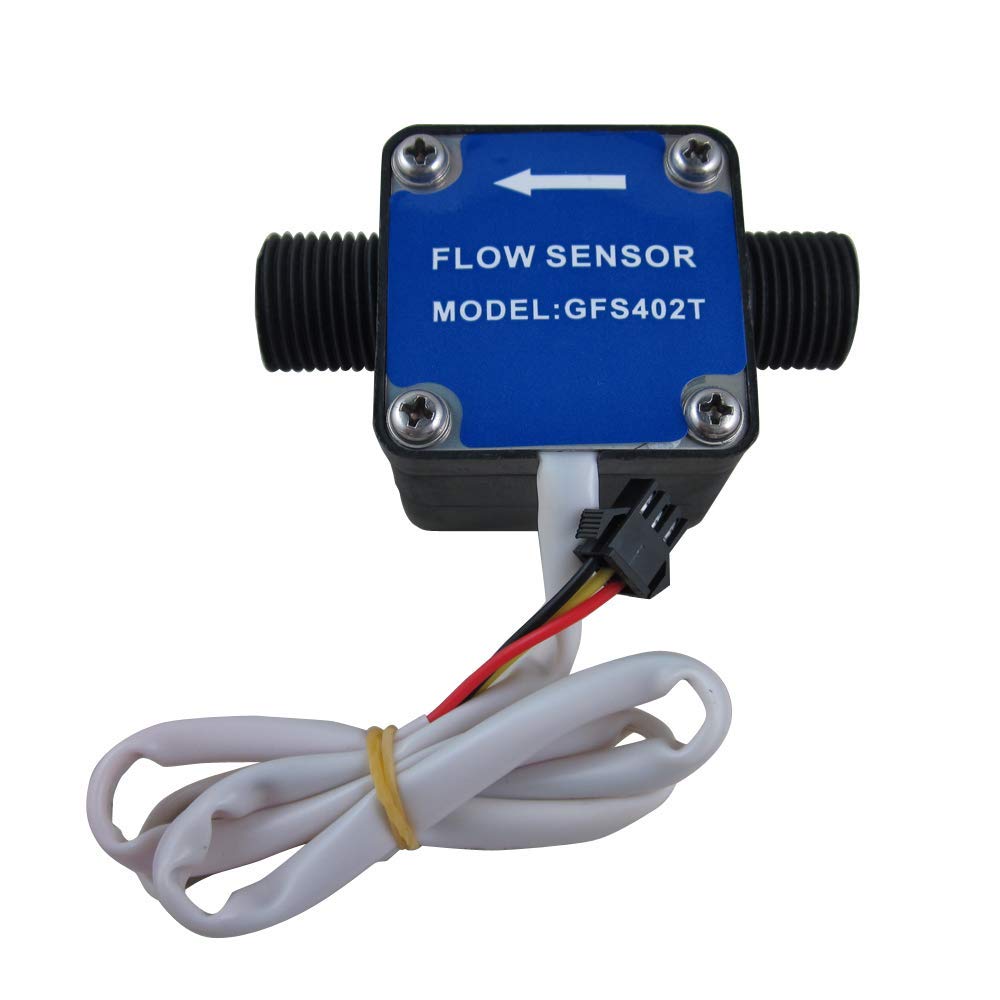

Specifications: Connection: G1/2″ thread male Flow range: 1-30L/min Working voltage: DC3V-12V Accuracy: ±0.5% Output singal: pulse singal,2.5mL/P Max operation pressure: 0.8Mpa with fluid temperature of +20℃ Ambient operating temperature: -10 to 70℃(freezing must be avoided) Wiring: Red—Power+;Black—GND; Yellow—Pulse singal This product mainly used to measure oil, gasoline, diesel, milk, chemicals(weak acid and base), etc liquidsage include: Flowmeter x 1
