Description
SOLIDfy Ball Pan 13 mm M6 DIN 71805
Made in Germany.
Our ball pans with left-hand thread are manufactured according to DIN 71805 form B, made of galvanised steel with safety bar. The application area ranges from the car spare part area (coupling rods, hood lifters, shift cables and much more). home, garden, model building in various areas, as well as plant construction in industry. Thanks to the production according to DIN standards, a consistent quality is guaranteed and the scope of application is not bound to manufacturers, brands or components. Ball pans according to DIN combined with a ball pin according to DIN 71803 form an angle joint according to DIN 71802.

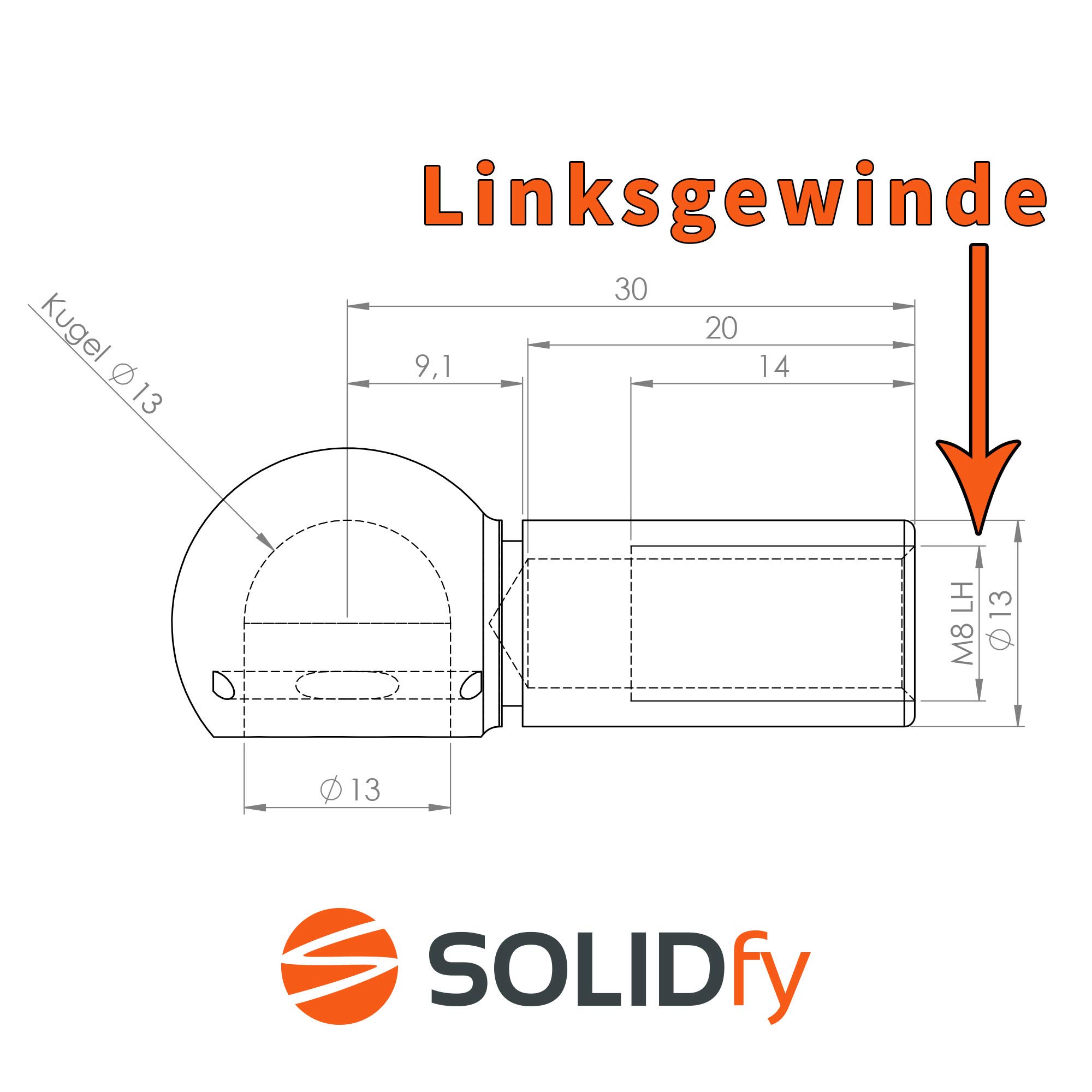

Technical data:
Ball diameter (ball diameter): 13 mm.
Thread size (thread size): M8-LH (left-hand thread).
Thread length (thread length): 14.00 mm.
Total length (total length): 40.00 mm.
Weight (weight): 28.8 g.
Material (material): galvanised steel white (silver) – galvanised steel.
Minimum tensile strength of Rm (minimum tensile strength Rm): 500 N/mm².
