Description
Details

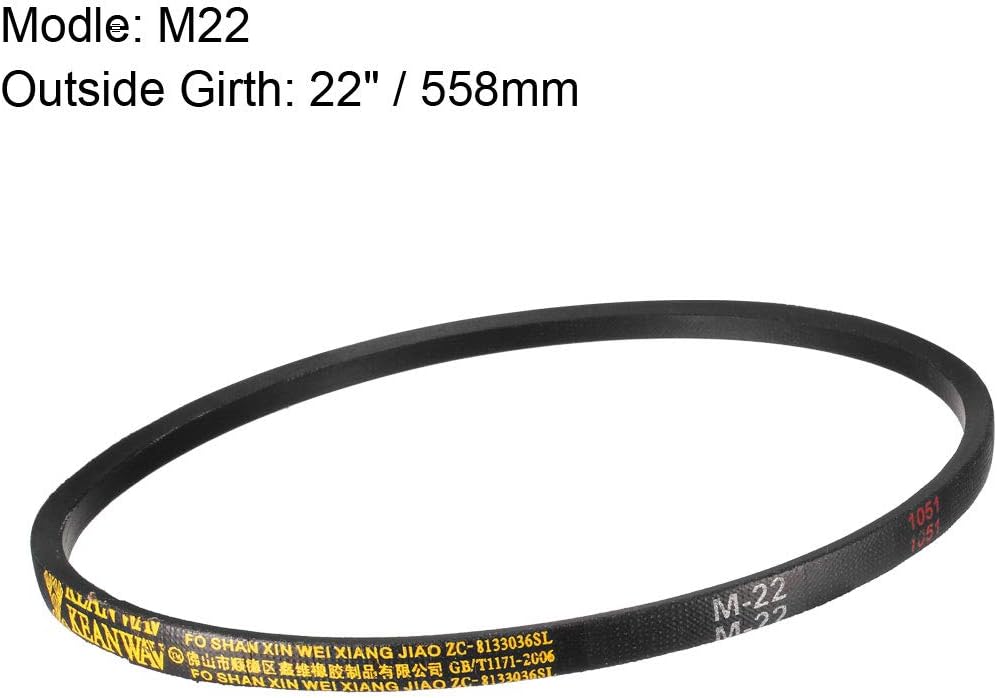

sourcing map M-22 Drive V-Belt Industrial Power Rubber Transmission Belt 22 inch Pitch Girth 10mm Width 5.5mm Height JIS Standard: Size: Model: M-22; Pitch Girth: 22 inch/560mm; Outer Girth: 580mm; Top Width: 10mm; Thickness: 5.5mm; Angle: 40 degree. Produced according to the Japanese standard JIS K 6323. Material: It is made of neoprene rubber for resistance to oils water and some solvents.
Key features

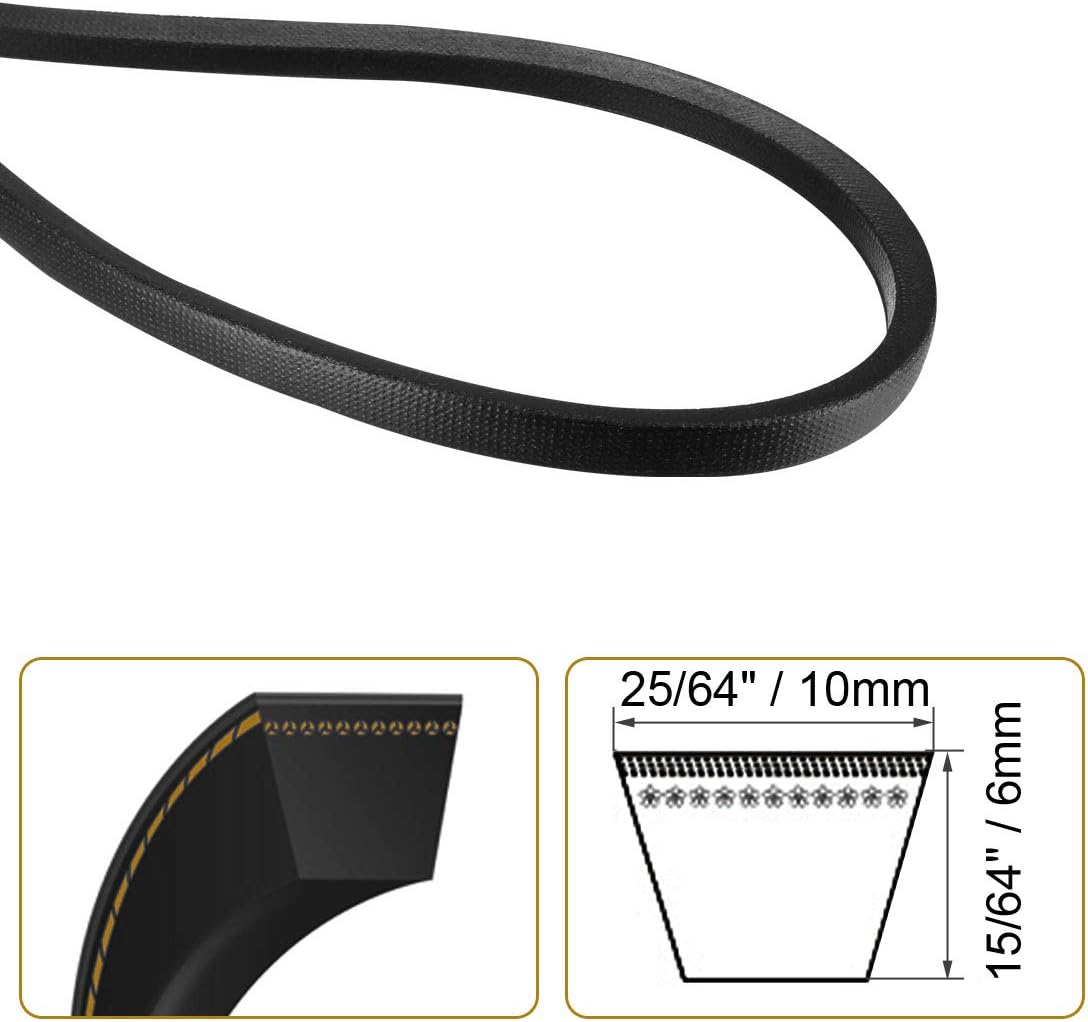

- Size: Model: M-22; Pitch Girth: 22 inch/560mm; Outer Girth: 580mm; Top Width: 10mm; Thickness: 5.5mm; Angle: 40 degree. Produced according to the Japanese standard JIS K 6323
- Material: It is made of neoprene rubber for resistance to oils water and some solvents
- Function: To link two or more rotating shafts to transmit power in a drive system. Even load distribution on belt drives and good wear resistance
- Material: Rubber
- Size: 22"
Product specifics
- Brand: sourcing map
- Category: V-Belts
- Size: 22"
- Material: Rubber
- Part number: a19031400ux0533
