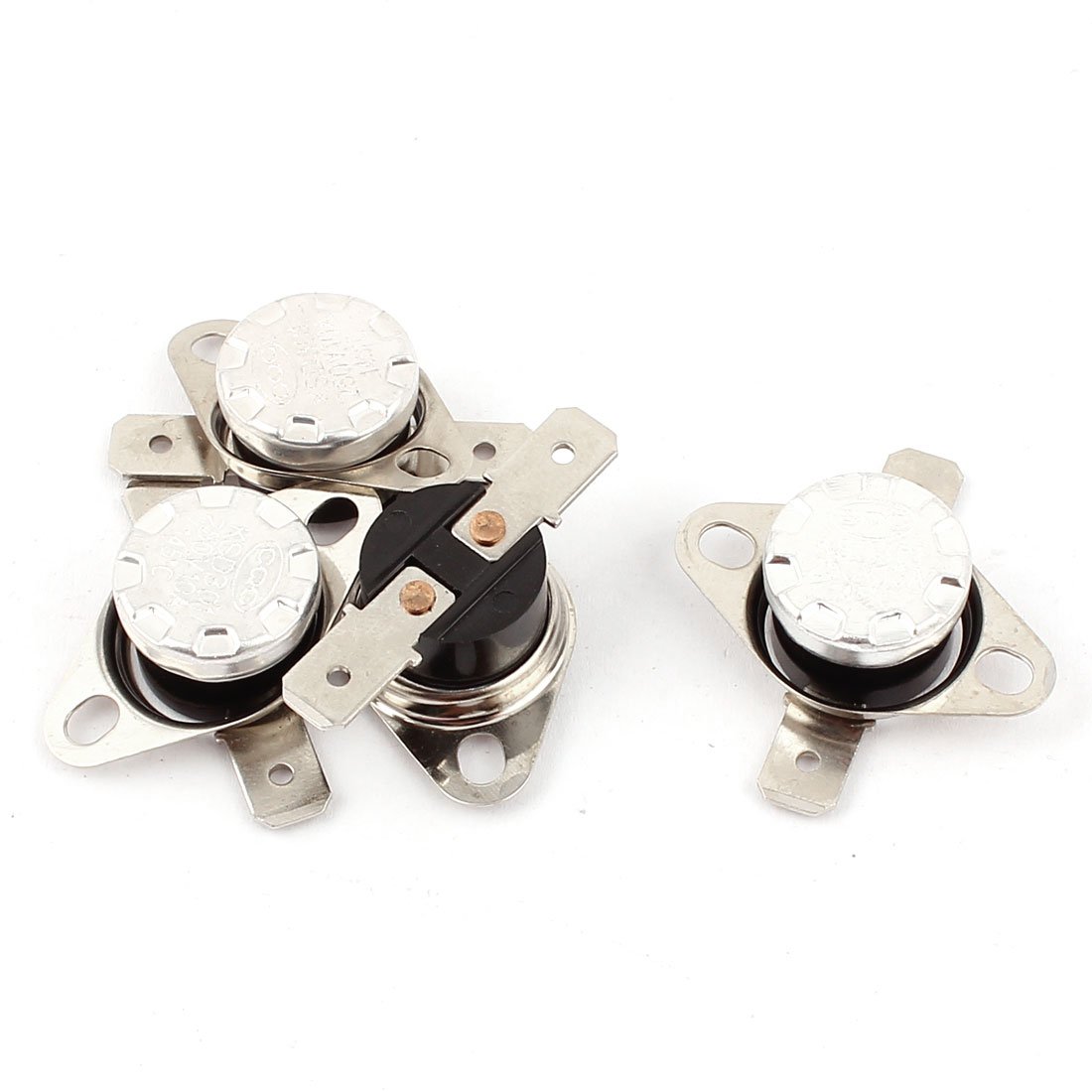

sourcingmap 4PCS KSD301 145C 293F NC Thermostat Temperature Thermal Control Switch

$19.99

  • Product Name : Temperature Switch;Model : KSD301;Action Type : NC(Normal Close)
  • Action Temperature : 145C/293F;Voltage : AC 250V 10A;Circuit Resistance : 50 Mohm
  • Insulation Resistance : 100 Mohm;Withstand Voltage : AC1500V/ minute;Size : 3.4 x 3.2 x 1.2cm / 1.3″ x 1.2″ x 0.5(L*W*H)
  • Mounting Hole Dia : 5 x 3.5mm(L*W) 1.5mm;Mounting Hole Center Distance : 23mm/0.9″, 25mm/1″;Material : Metal
  • Weight : 19g;Package : 4 x Temperature Switch

Out of stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

It is close until the surface reaches 145 Celsius degree and then the switch open. Automatically reset
When the surface cools off about 5 degrees, the switch automatically close.
Opening-closing durability: 10000 times or more (under rated load).
General-purpose low cost, compact, large capacity, minute current thermostat.
Application: for Household electric appliances, PC, Microwave ovens, Irons, Refrigerators, Electronic oven, Heating unit, Coffeepot, Water heater, etc.

Additional information

Weight 0.09 kg
Brand

Sourcingmap

EAN

0602451638643

UPC

602451638643
