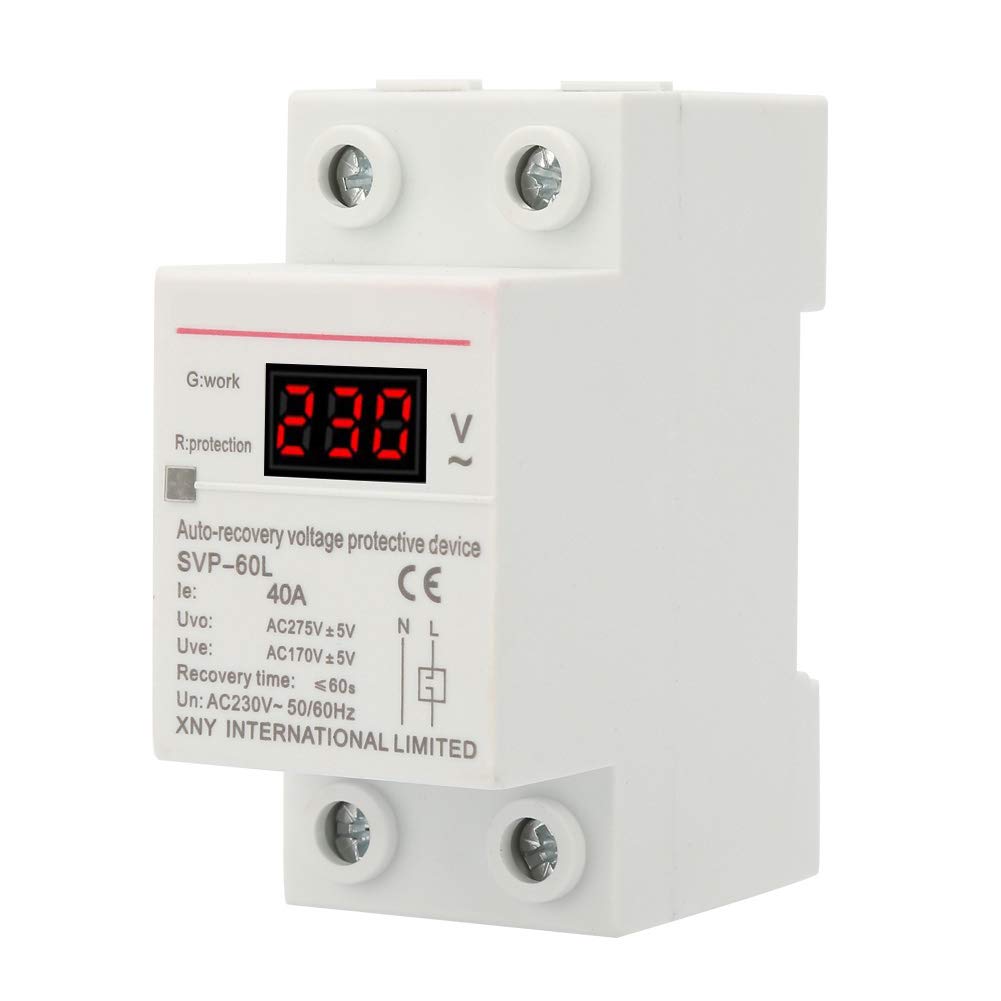

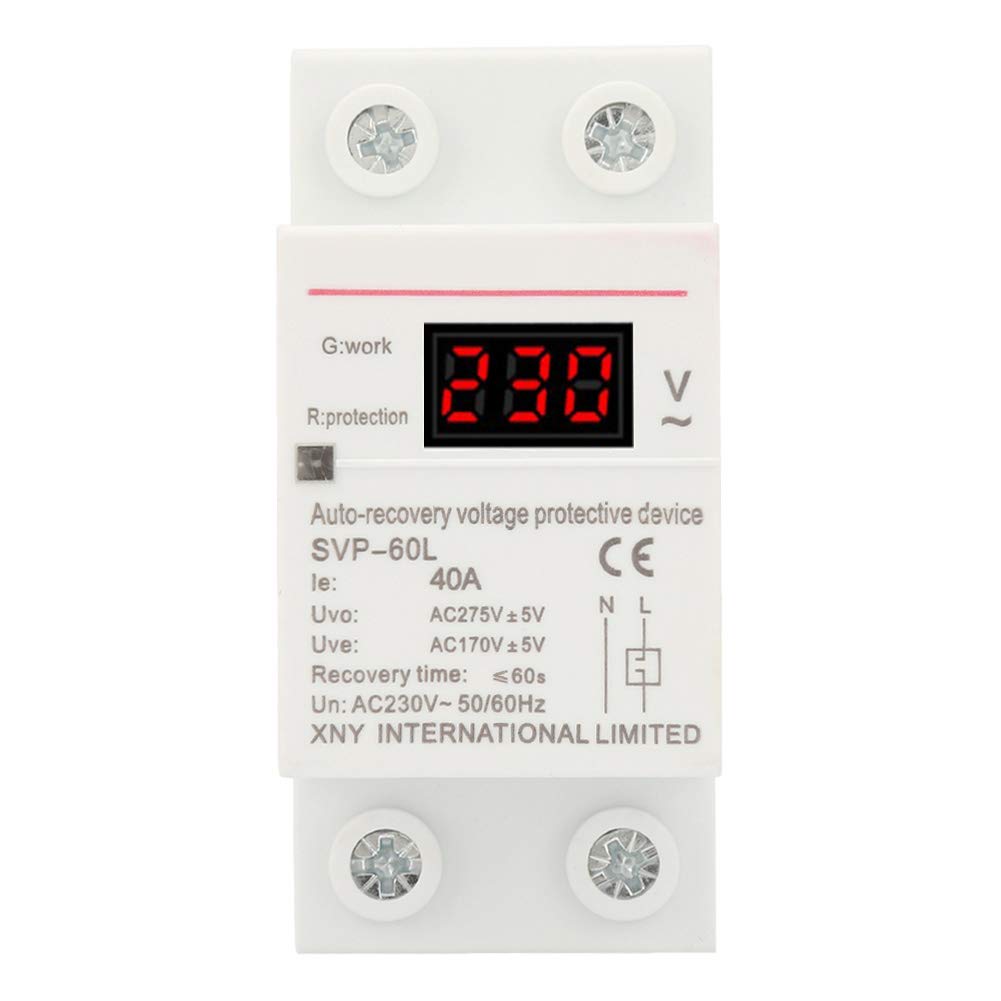

SVP-60L Single Phase OverVoltage Protector Automatic Voltage Protective Device
SVP-60L Single Phase OverVoltage Protector Automatic Voltage Protective Device - Image 2
SVP-60L Single Phase OverVoltage Protector Automatic Voltage Protective Device - Image 3
SVP-60L Single Phase OverVoltage Protector Automatic Voltage Protective Device - Image 4
SVP-60L Single Phase OverVoltage Protector Automatic Voltage Protective Device - Image 5

SVP-60L Single Phase OverVoltage Protector Automatic Voltage Protective Device

$28.99

  • The automatic recovery overvoltage and undervoltage protection devices meet modular design standards.
  • The product board uses high-quality electronic components for reliable performance.
  • When the power supply is unstable, its protection function will be activated automatically. Once the voltage exceeds a limited range of products, it will automatically cut off to protect the safety of electrical equipment and personnel.
  • When the power returns to normal, the device will re-power it within 1 minute.
  • The green indicator light indicates that the power supply is working properly. The red indicator light indicates overvoltage or undervoltage.

In stock

  • International Express shipping available
  • 30 day easy returns
Guaranteed Safe Checkout

Description

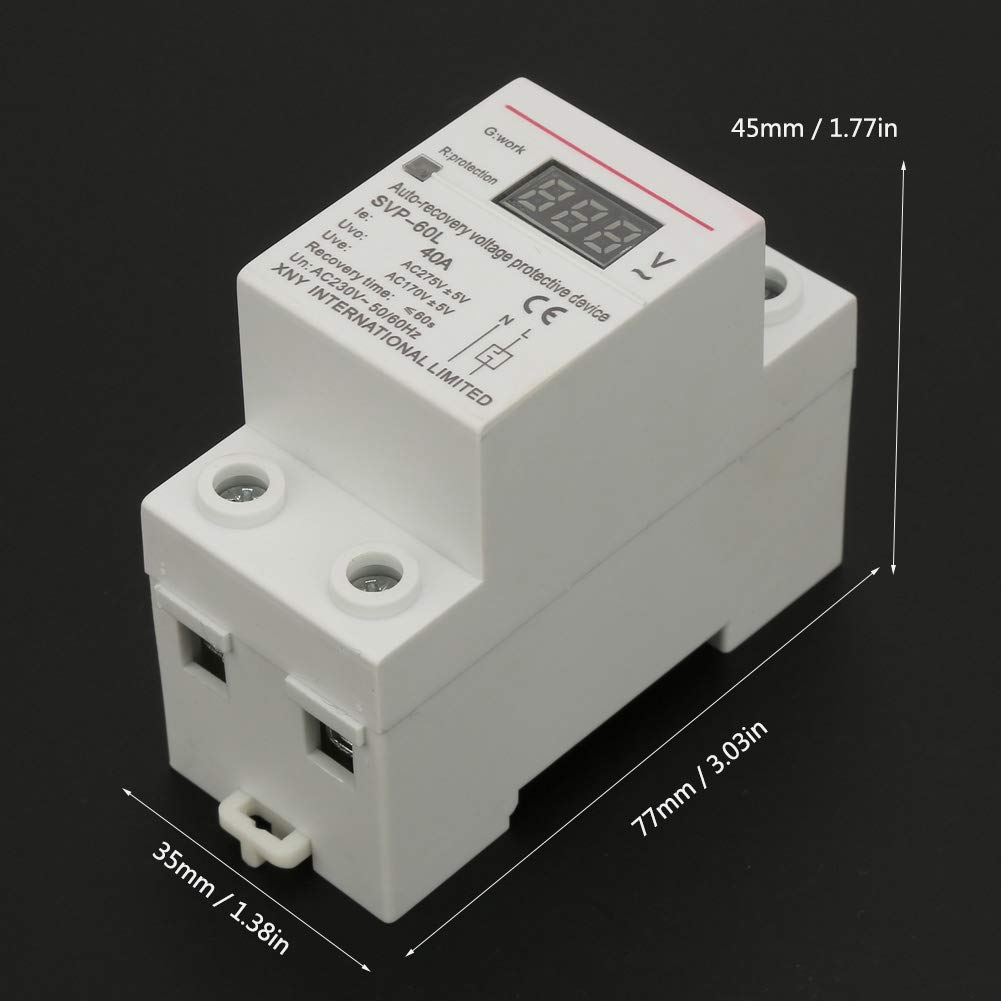

Specification: Function: Overvoltage&Undervoltage Protection Rated Alternative Voltage: 230V 50Hz Transmit Maximum Current: 40A Maximum Wattage: 8.8KVA Overvoltage Action Cut-Off Value:> 270VAC +/- 5V Normal Voltage:175-270VAC Undervoltage Action Cut-Off Value:<170VAC +/- 5V Overvoltage&Undervoltage Cut-Off:<1S Power Transmission Delays After Blackouts:<60s Power Consumption :<2W Motor Service Life:100000 Times Size:77 x 35 x 45mm / 3.03 x 1.38 x 1.77in Installation: 35mm DIN RailPackage List: 1 x Protector     When connecting the product for the first time, you must wait for about 1 minute. Only when the red light goes out, can the product work normally.

Additional information

Weight 0.13 kg
brand

FTVOGUE
dimensions

7.7 x 4.5 x 3.5 cm; 130 Grams
SKU: B084VMX7J7 Category: Tags: ,
